Honeywell - ET402A1 Module Efficient Ignition Transformers
- Application: Gas Ignition Transformer.
- Voltage: 110 – 120 Vac
- Frequency: 50/60 Hz

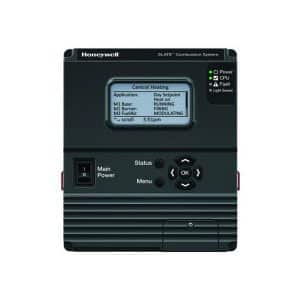

Honeywell (SLATE-N4-TOOL) SLATE Combustion Tool Module – R8001
- Description: SLATE-N4-TOOL for programming of the SLATE system, configuration of the safety modules and creating display graphics
Honeywell 32003971-003/U Module SOLA Controllers - SOLA™ Accessories or Parts
- Application: 10K Ohm Single element sensor with 42" lead wires, includes wire nuts (2), #8 mounting screws (3), anchors (2), sensor clip (1), tie strap (2)
Honeywell 32005301-001/U Flame Amplifier Accessories | 7800 Series Burner Control Module
- Description: T Filter for Rectification Applications
- Used With: R7847
Honeywell 32008001-002/U Module for SLATE R8001 Combustion System
- Description: SLATE connector bag assembly that contains connectors for sub-base for remote flame amplifier module or remote reset button connections. This assembly also contains the 2 pin-power connector for the SLATE display.
Honeywell 50032893-001/U Module SOLA Controllers - SOLA™ Accessories or Parts
- Application: Bag of connectors for R7910 and R7911 Controllers

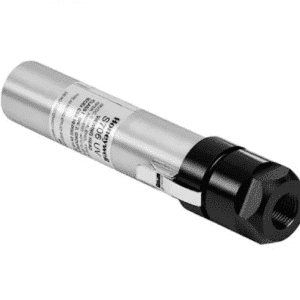

Honeywell 700 Series Viewing Heads Reliable Control Module- S706 Viewing Head
- Type: UV Compact viewing head with 15-foot cable
- Electrical Connections: Quick disconnect plug
- Shutter: Electronic
- UV Gain Adjustment: 1-9
- Dimensions: 2.0 in. wide x 9.7 in. deep x 2.0 in. high (51 mm wide x 246 mm deep x 51 mm high)
- Comments: Removable connector cover for diagnostic LED viewing during installation
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC

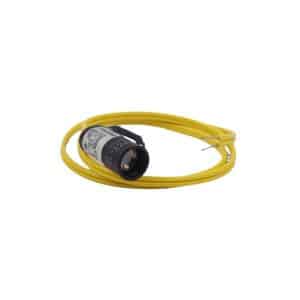

Honeywell 700 Series Viewing Heads Reliable Control Module- S706PF Viewing Head
- Type: UV Compact viewing head with 10-foot pigtail
- Electrical Connections: Factory installed cable
- Shutter: Electronic
- UV Gain Adjustment: 1-9
- Dimensions: 2.0 in. wide x 9.7 in. deep x 2.0 in. high (51 mm wide x 246 mm deep x 51 mm high)
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC
Honeywell 700 Series Viewing Heads Reliable Module- S702 Viewing Head
- Type: IR Compact viewing head with 15-foot cable
- Electrical Connections: Quick disconnect plug
- Shutter: Electronic
- IR Gain Adjustment: 1-9
- Dimensions: 2.0 in. wide x 9.7 in. deep x 2.0 in. high (51 mm wide x 246 mm deep x 51 mm high)
- Comments: Removable connector cover for diagnostic LED viewing during installation.
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC
Honeywell 700 Series Viewing Heads Reliable Module- S702PF Viewing Head
- Type: IR Compact viewing head with 10-foot pigtail
- Electrical Connections: Factory installed cable
- Shutter: Electronic
- IR Gain Adjustment: 1-9
- Dimensions: 2.0 in. wide x 9.7 in. deep x 2.0 in. high (51 mm wide x 246 mm deep x 51 mm high)
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC
Honeywell 700-2 Module IFM Accessories- Industrial Flame Monitoring Accessories
- Application: Swivel Mount
- Description: Swivel mount for S700 and S800 series viewing heads. Flanged connection to 1/2 in. NPTM connection.
- Used With: S700 and S800 series Viewing heads

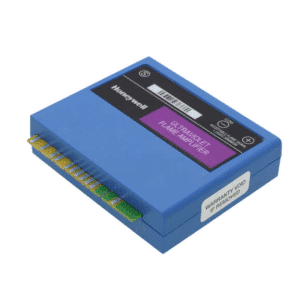

Honeywell 7800 Series Burner Control Flame Amplifier Module (R7849B1013/U)
- Type: Ultraviolet
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil: Mini peeper C7027A, C7035A, C7044
- Colour: Purple
Honeywell 7800 Series Burner Control Module R7847B1031/U Flame Signal Amplifier
- Type: Rectification
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods; Gas, oil, coal: Ultraviolet Flame Sensor C7012A, C
- Colour: Green
Honeywell 7800 Series Burner Control Module R7851B1018/U Flame Signal Amplifier
- Type: Optical
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil, Coal: Optical (UV, Visible Light) C7927, C7962B
- Colour: White

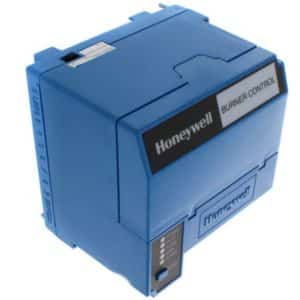

Honeywell 7800 Series Burner Control RM7890A1015/U On-Off Primary Module
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3.
- Approvals, Factory Mutual: Report No. 1V9AO.AF
Honeywell 7800 Series Burner Control RM7895A1014/U On-Off Primary with Prepurge
- Voltage: 120 Vac (+10, -15%)
- Pilot Type: intermittent
- Delayed Main Valve: No
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3
- Approvals, Control Safety Devices: Acceptable: CSD-1
- Approvals, Factory Mutual: Report No. OX4A5.AF
Honeywell 7800 Series Burner Control RM7895A1089 On-Off Primary with Prepurge
- Voltage: 120 Vac (+10, -15%)
- Pilot Type: intermittent
- AirFlow Check: Dynamic
- Delayed Main Valve: No
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3
- Approvals, Control Safety Devices: Acceptable: CSD-1
- Approvals, Factory Mutual: Report No. OX4A5.AF
Honeywell 7800 Series Burner Control RM7896A1012/U On-Off Primary with Pre-and Post-purge
- Pilot Type: intermittent
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 or 10 sec
- Delayed Main Valve: No
- PostPurge: 15 sec
Honeywell 7800 Series burner control RM7898A1018/U On-Off Primary Control with VPS
- Voltage: 120 Vac (+10, -15%)
- Used With: blinking LED fault annunciation feature, with early spark termination and 7800 Series Amplifiers

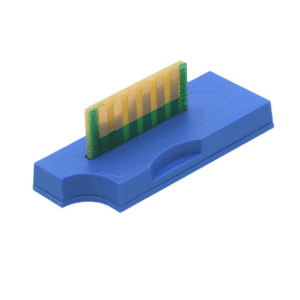

Honeywell 7800 Series Burner Control ST7800A1013/U Plug-In Purge Timer Module
- Pre-Purge: 7 seconds
- Application: Purge Timer
Honeywell 7800 Series Burner Control ST7800A1104/U Plug-In Purge Timer Module
- Pre-Purge: 9.0 minutes
- Application: Purge Timer
Honeywell 7800 Series Burner Control ST7800C1045/U Plug-In Purge Timer Module
- Pre-Purge: 8.0 minutes
- Application: Purge Timer for RM7838C Only
Honeywell 7800 Series Burner Control, Model EC7820A1026/U – Primary Control Module
- Voltage : 220 to 240 Vac (+10, -15%)
- Pilot Type: interrupted
- Flame Establishing Period- main: 5 sec, or 8 sec, or Intermittent
- Flame Establishing Period- Pilot: 5 sec or 10 sec
Honeywell 7800 Series Burner Controls - RM7824A1006/U On-Off Primary Control
- Voltage: 24 Vdc (+10, -15%)
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 sec or 10 sec
Honeywell 7800 Series Burner Controls EC7830A1033/U Programming Control
- Voltage : 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Post Purge: 2 sec On/Off Power Burner
Honeywell 7800 Series Burner Controls EC7840L1014/U Programmers with VPS
- Voltage: 220 to 240 Vac (+10, -15%)
- Flame Establishing Period - Main: 10 sec or 15 sec
- Flame Establishing Period - Pilot: 4 sec or 10 sec
- Interlocks: Lockout
Honeywell 7800 SERIES Burner Controls Flame Signal Amplifiers R7847A1025/U module
- Type: Rectification
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods
- Colour: Green
Honeywell 7800 SERIES Burner Controls Flame Signal Amplifiers R7847A1033/U module
- Type: Rectification
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods; Gas, oil, coal: Ultraviolet Flame Sensor C7012A, C
- Colour: Green
