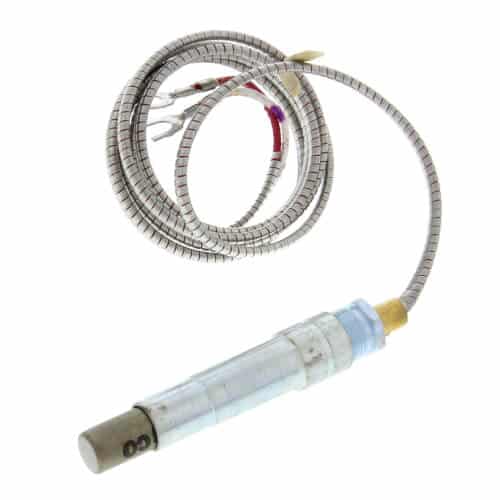

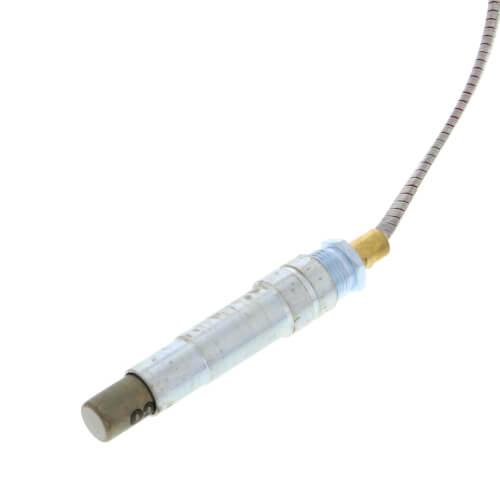

Resideo Thermopile & Thermocouple Control Module – Q313U3000 System
Thermocouples Selection Guide:
- Lead Length (in.): 35
- Direct Replacement: Q313U3000, Q313A1022, Q313A1139, Q313A1170, Q313A1188
- Includes(respectively): Push-In clip, PG9 adapter, 1/2” attaching nut, Split nut, spade to QC adapter. 7/16” attaching nut. Push-In clip, spade to QC adapter. PG9 adapter, 7/16” attaching nut. Push-In clip, 1/2” attaching nut, Split nut, Spade to QC adapter .
Original price was: $328.00.$272.00Current price is: $272.00.
(Save $56.00)
In stock
Thermocouple and Thermopile System- Q313, Q340A, Q390A Reliable Control Module
With easy installation, reliable performance and built for long-haul, Resideo's thermocouples and thermopiles work for nearly all pilot generated millivolt applications.
Description
THERMOCOUPLES/THERMOPILES
With easy installation, reliable performance and built for long-haul, Resideo’s thermocouples and
thermopiles work for nearly all pilot generated millivolt applications.
When selecting a thermocouple or thermopile for your next job, look for these Resideo features:
• Variety of lead lengths
• Easy installation
• Many accessories included
• Durability
Q313
REPLACEMENT THERMOPILE
• Variety of lead lengths
• Push-in clip, split nut and adapter assembly included

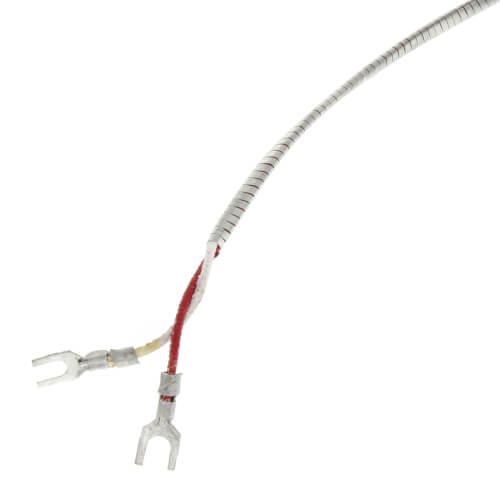

• Spade Terminals for connection to gas valve.
• Generates 750 mV in a millivolt heating system
Q340A
UNIVERSAL THERMOCOUPLE
• The Q340A, with a maximum amount of copel, is a premium
thermocouple with the long life and durability that your
customers demand
• Variety of lead lengths
• Push-in clip and adapter assembly included
• Male nut connector for Pilotstat included
• Generates 30 mV in standing pilot systems
Q390A
THERMOCOUPLE
• Variety of lead lengths
• Push-in clip and adapter assembly included
• Male nut connector for Pilotstat included
• Generates 30 mV in standing pilot systems
• For situations where a utility grade thermocouple is the
best solution, the Q390A is the right choice
Specifications
- Connection Spade Terminal
- Length (in.)35"
