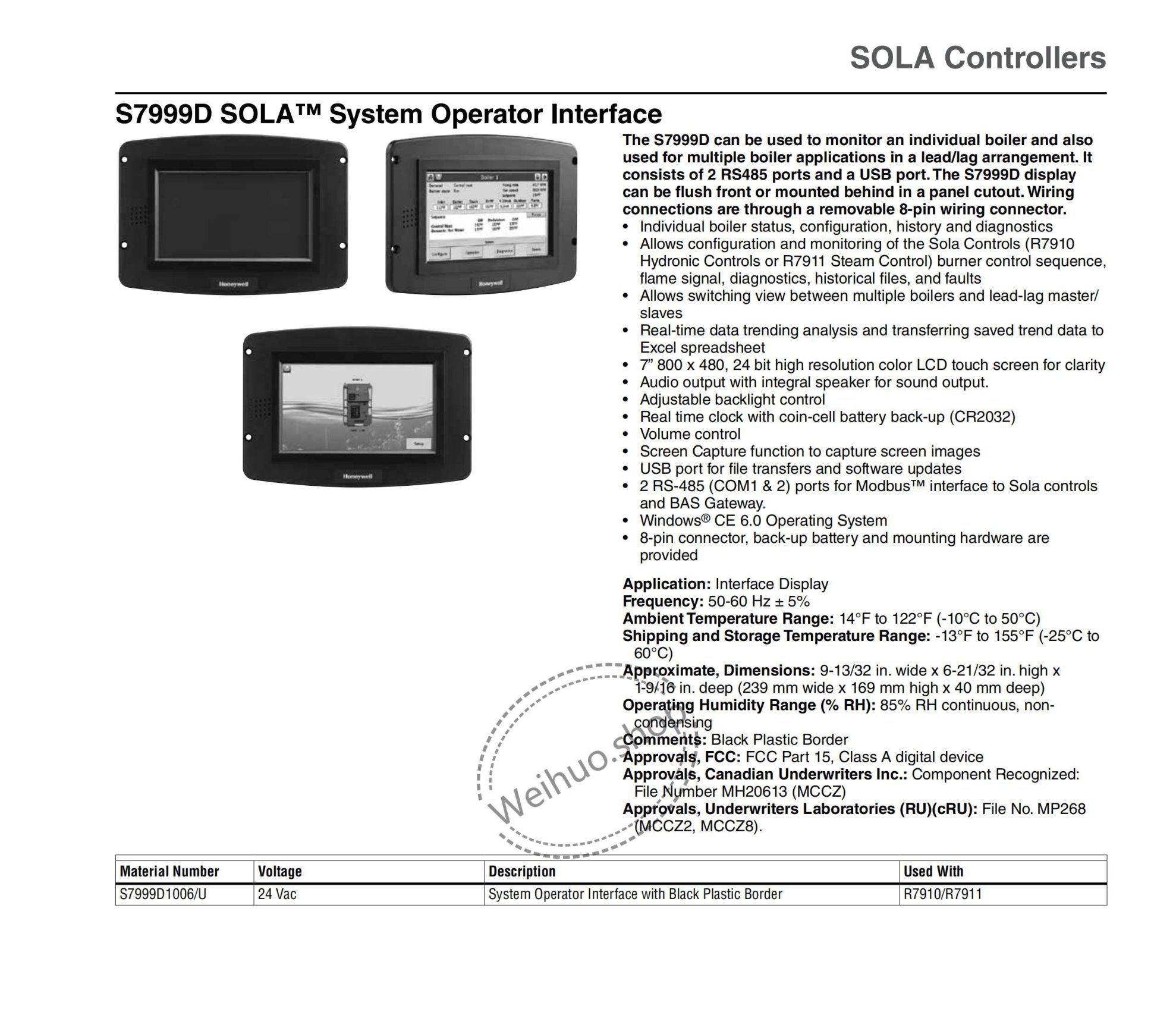

Honeywell SOLA Controllers S7999D1006/U SOLA™ System Operator Interface

The S7999D can be used to monitor an individual boiler and also
used for multiple boiler applications in a lead/lag arrangement. It
consists of 2 RS485 ports and a USB port. The S7999D display
can be flush front or mounted behind in a panel cut out. Wiring
connections are through a removable 8-pin wiring connector.
• Individual boiler status, configuration, history and diagnostics
• Allows configuration and monitoring of the Sola Controls (R7910
Hydronic Controls or R7911 Steam Control) burner control sequence,
flame signal, diagnostics, historical files, and faults
• Allows switching view between multiple boilers and lead-lag master/
slaves
• Real-time data trending analysis and transferring saved trend data to
Excel spreadsheet
• 7” 800 x 480, 24 bit high resolution color LCD touch screen for clarity
• Audio output with integral speaker for sound output.
• Adjustable backlight control
• Real time clock with coin-cell battery back-up (CR2032)
• Volume control
• Screen Capture function to capture screen images
• USB port for file transfers and software updates
• 2 RS-485 (COM1 & 2) ports for Modbus™ interface to Sola controls
and BAS Gateway.
• Windows® CE 6.0 Operating System
• 8-pin connector, back-up battery and mounting hardware are
provided
