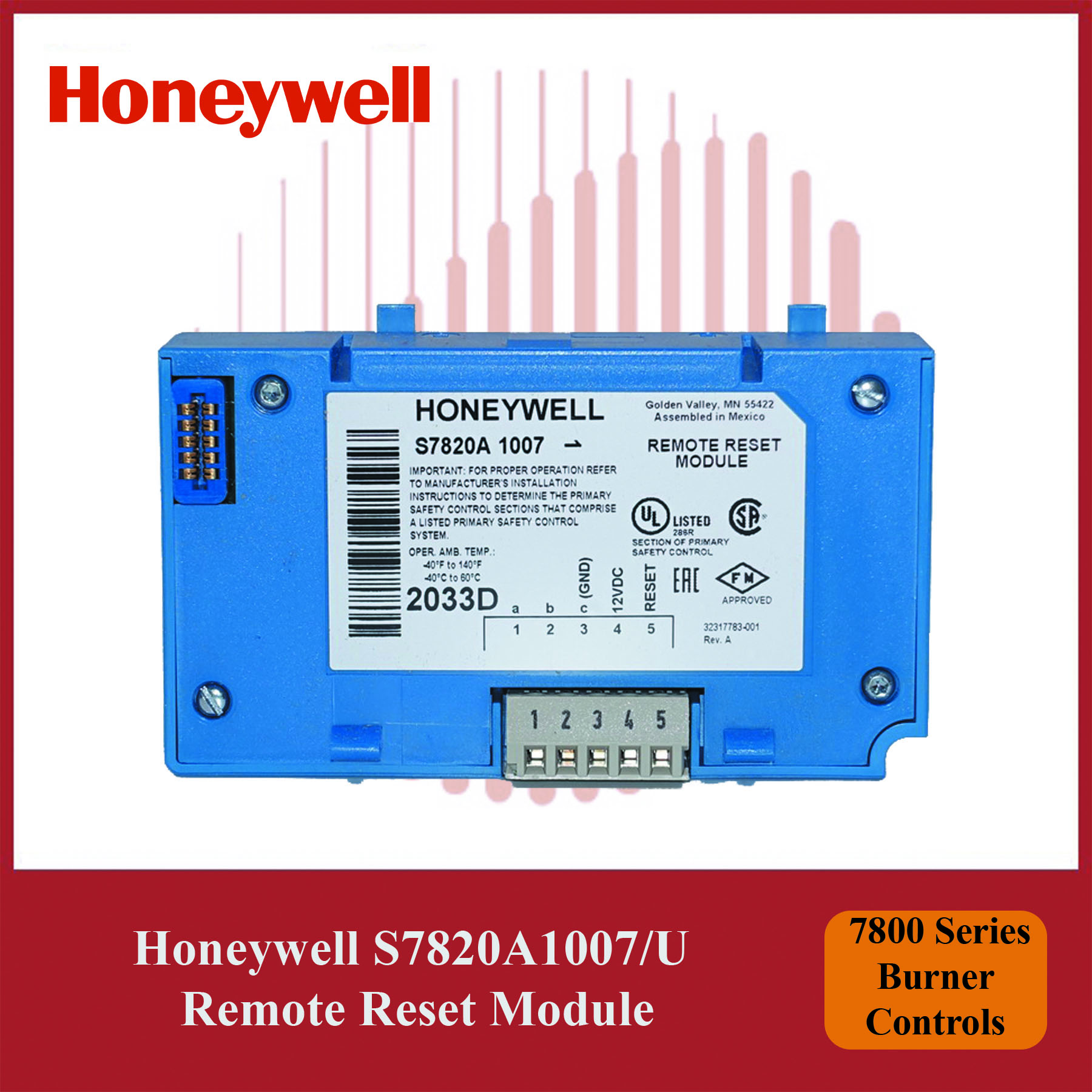

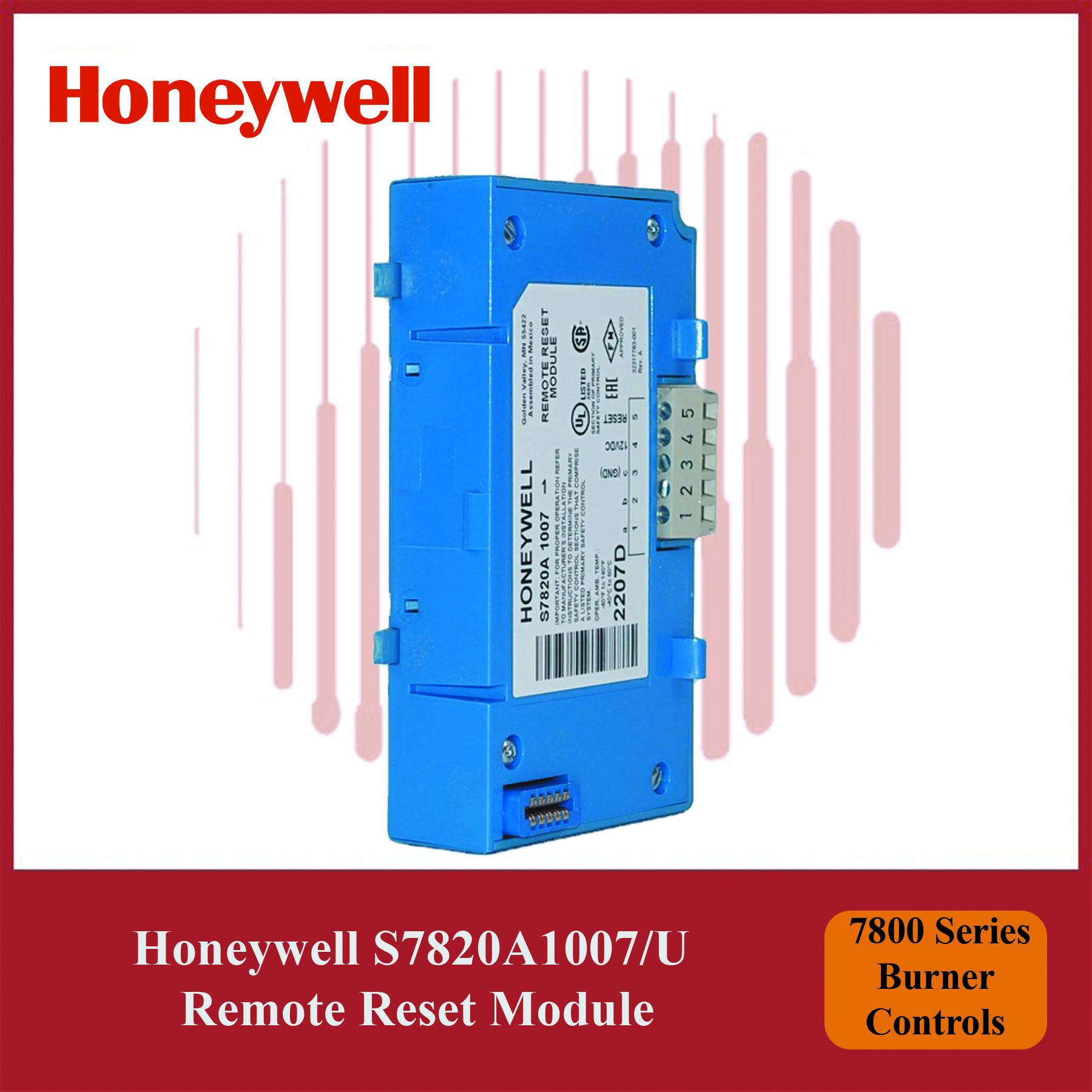

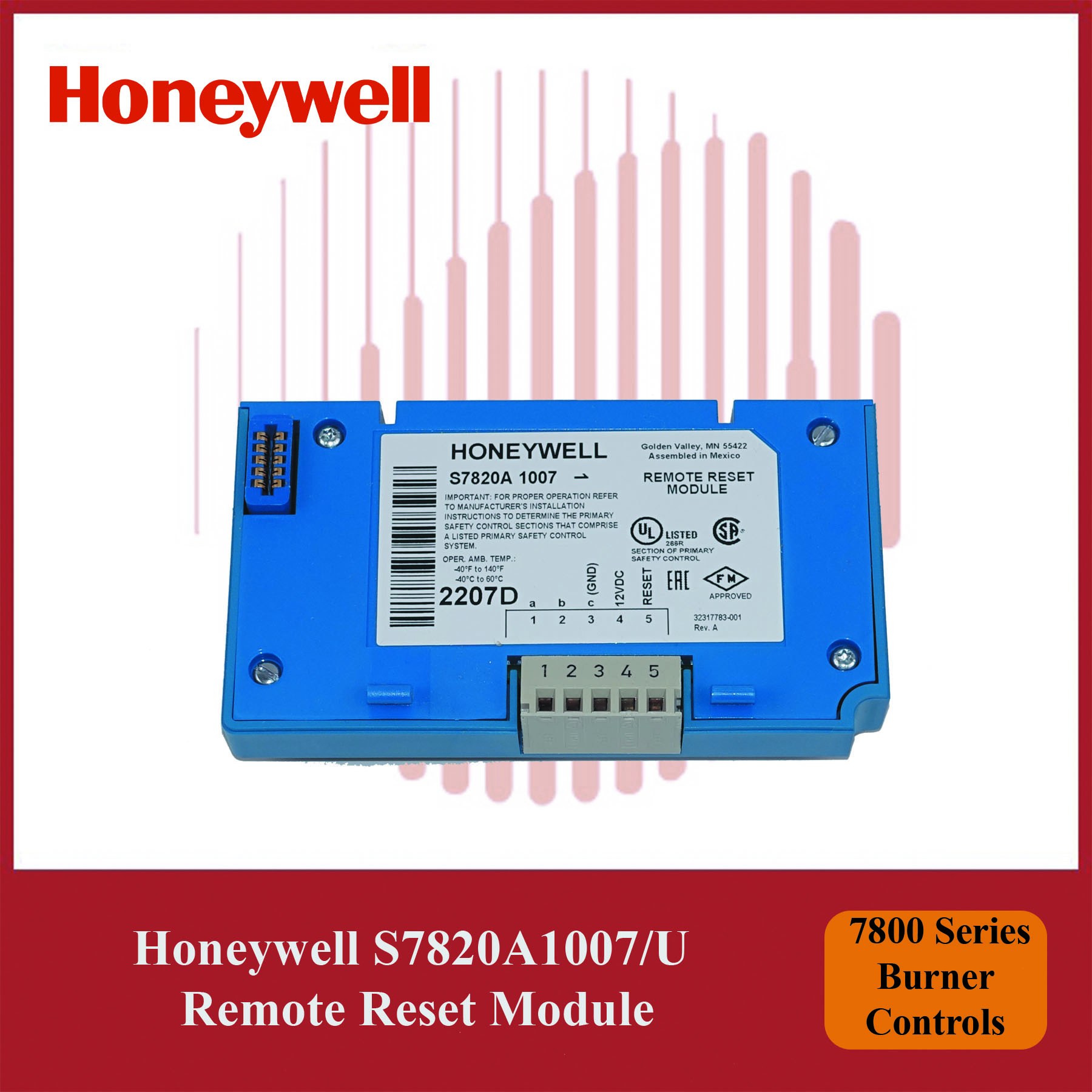

Honeywell S7820A1007/U Remote Reset Module 7800 Series Burner Controls
- Application: Remote Reset Module
- Includes: Includes 203541 5-wire Connector
Original price was: $365.00.$325.00Current price is: $325.00.
(Save $40.00)
In stock

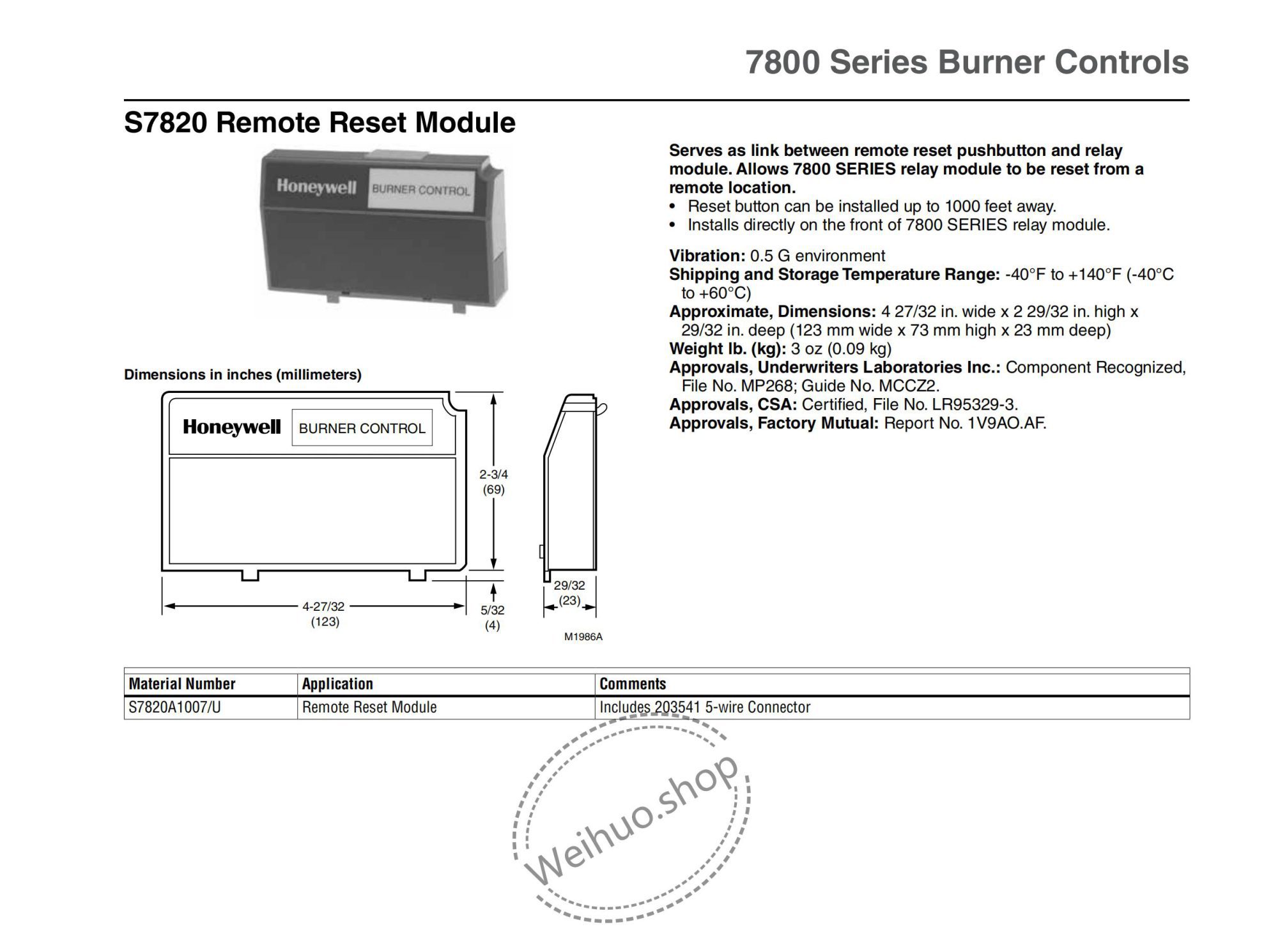

S7820 Remote Reset Module 7800 Series Burner Controls
Serves as link between remote reset pushbutton and relay
module. Allows 7800 SERIES relay module to be reset from a
remote location.
Description
Serves as link between remote reset pushbutton and relay
module. Allows 7800 SERIES relay module to be reset from a
remote location.
• Reset button can be installed up to 1000 feet away.
• Installs directly on the front of 7800 SERIES relay module
Specifications
- Vibration 0.5 G environment
- Shipping and Storage Temperature Range-40°F to +140°F (-40°C to +60°C)
- Approximate, Dimensions4 27/32 in. wide x 2 29/32 in. high x 29/32 in. deep (123 mm wide x 73 mm high x 23 mm deep)
- Weight lb. (kg)3 oz (0.09 kg)
- Approvals, Underwriters Laboratories Inc.Component Recognized, File No. MP268; Guide No. MCCZ2.
- Approvals, CSACertified, File No. LR95329-3.
- Approvals, Factory MutualReport No. 1V9AO.AF
Additional information
| Weight | 0.11 kg |
|---|---|
| Dimensions | 12.303 × 7.382 × 2.302 cm |
