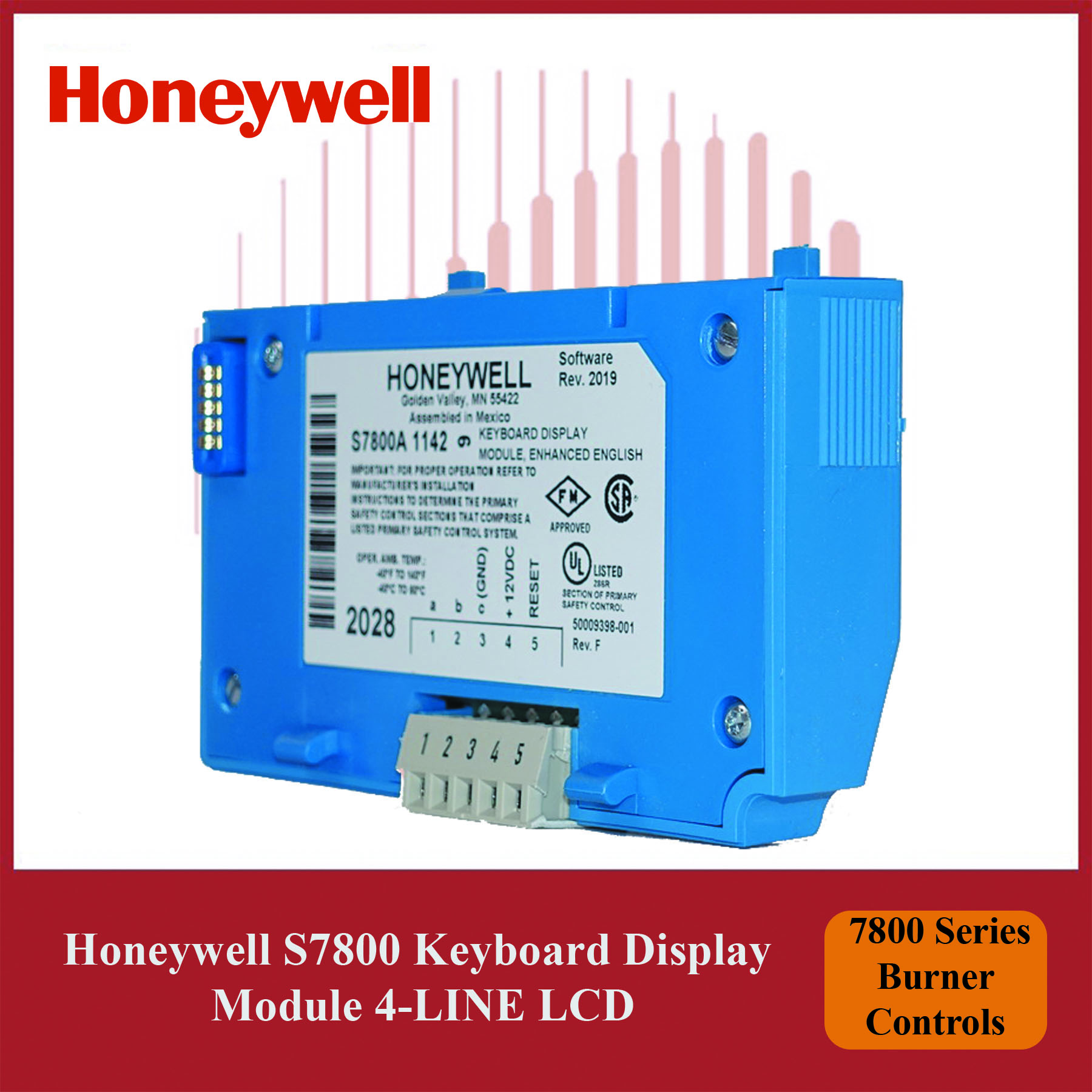

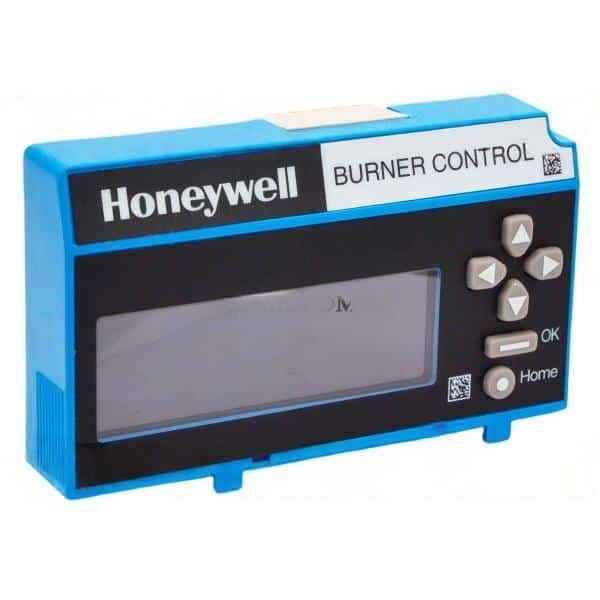

Honeywell S7800A2142/U Keyboard Display Module 4-LINE LCD 7800 Series Burner Controls

The S7800A2142 Keyboard Display Module is the newest and
most intuitive way to interact with any 7800 Series Flame Relay
module. The new display is packed full of features and best of all
– it’s compatible with all 7800 SERIES burner controls.
• Larger, easier to read hi-contrast backlit display
• View current system status, firstout remote annunciation, remote
reset, report generation, fault information, burner control data, and
real-time system
• Diagnostics with plain text explanations of how to fix potential lockout issues.
• 3 language options with one part number – English, Spanish and
French.
The new display offers many pass code protected
enhancements including:
• Valve Proving Feature – Allows for programming the Valve Proving
Control feature and timing.
• Post Purge Feature – Allows for programming the post purge time.
• Expanded Annunciator Set Up – Allows for naming the S7830
Expanded Annunciator terminals to match your system’s drawings.
