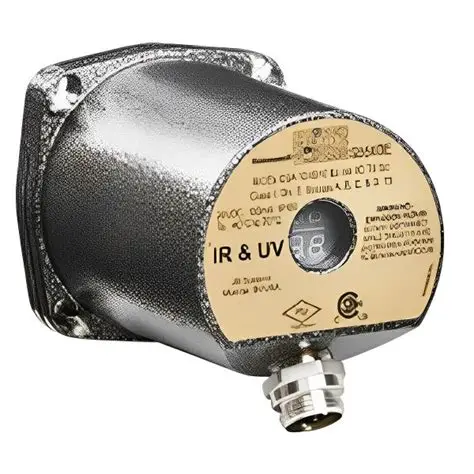

Honeywell S55xBE Series Viewing Heads Reliable Module- S552BE Viewing Head

The S550BE is provided with UV Tron and IR sensors. System
is self checking, no mechanical shutters, not adversely affected
by X or Gamma rays generated by pipe check welding. Suitable
for all fuel flames, single or multiple fuels. Optional pipe fitting
(PF) versions provided with factory installed cable. Suitable for
hazardous location duty. SIL 3 capable.
• Not adversely affected by Gamma Rays or X-Rays.
• Mount in any orientation.
• IR gain selection of 0-699.
• UV gain selection of 0-99.
• 2 digital displays.
• Quick disconnect plug.
• Parameters stored in signal processor EEPROM.
• Ultraviolet and infrared with electronic shutter.
• 22-26 VDC supplied by signal processor.
• CSA Rated IP64 Enclosure.
• Used with P532, P532, P531, P531, P522, P522 signal processors.
