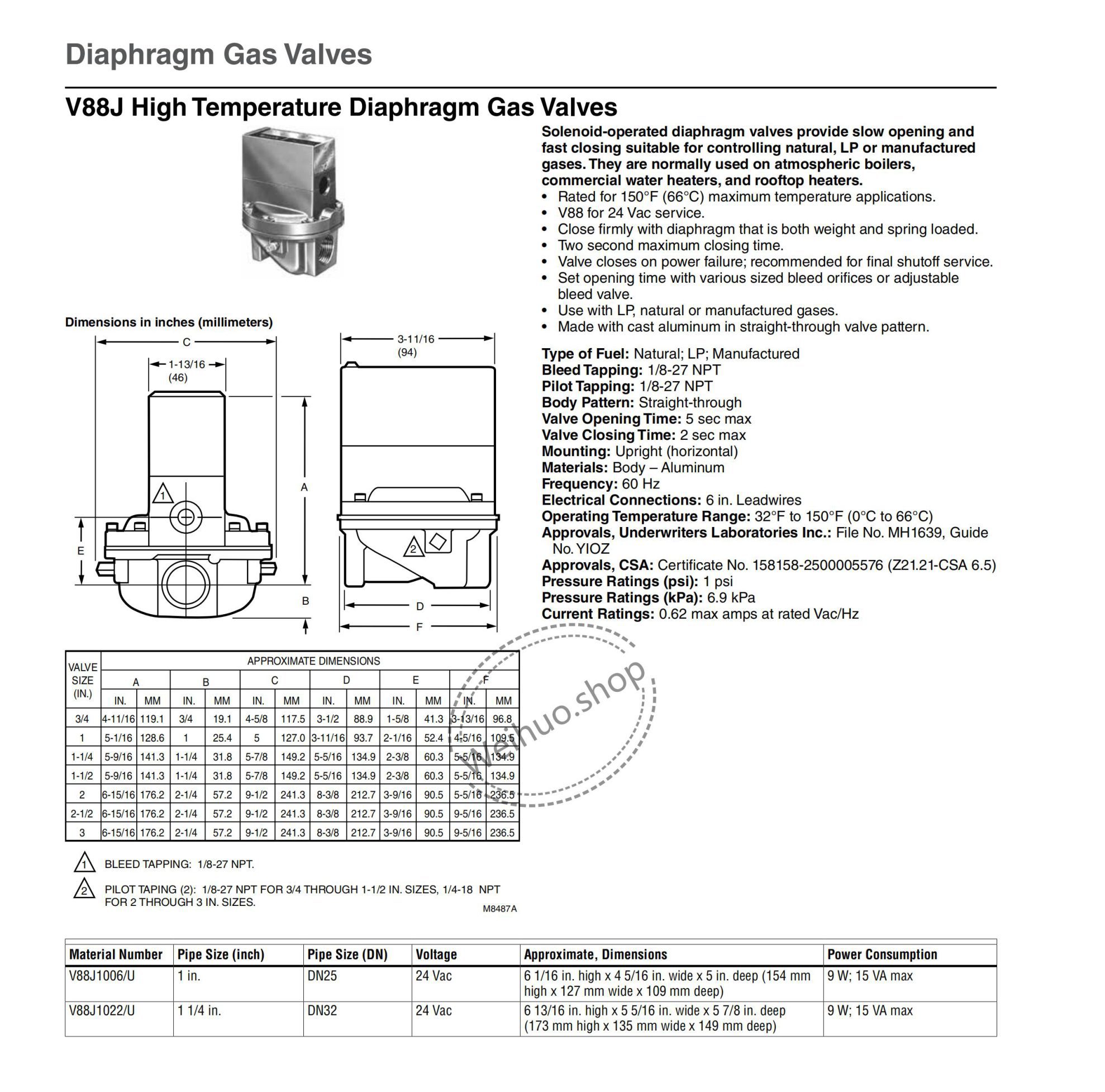

Honeywell Reliable High Temperature V88J1022/U Diaphragm Gas Valves

Solenoid-operated diaphragm valves provide slow opening and
fast closing suitable for controlling natural, LP or manufactured
gases. They are normally used on atmospheric boilers,
commercial water heaters, and rooftop heaters.
• Rated for 150°F (66°C) maximum temperature applications.
• V88 for 24 Vac service.
• Close firmly with diaphragm that is both weight and spring loaded.
• Two second maximum closing time.
• Valve closes on power failure; recommended for final shutoff service.
• Set opening time with various sized bleed orifices or adjustable
bleed valve.
• Use with LP, natural or manufactured gases.
• Made with cast aluminum in straight-through valve pattern.
