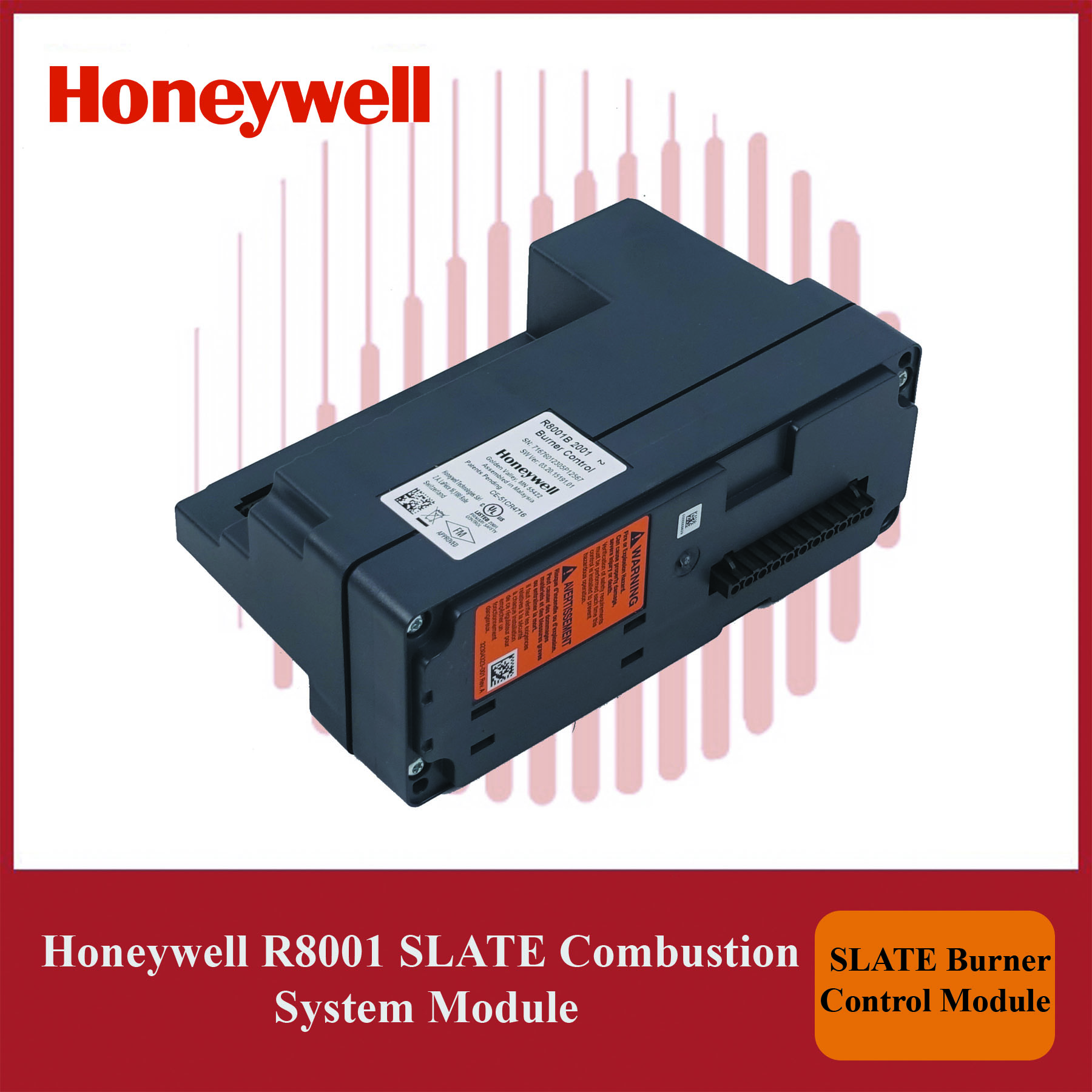

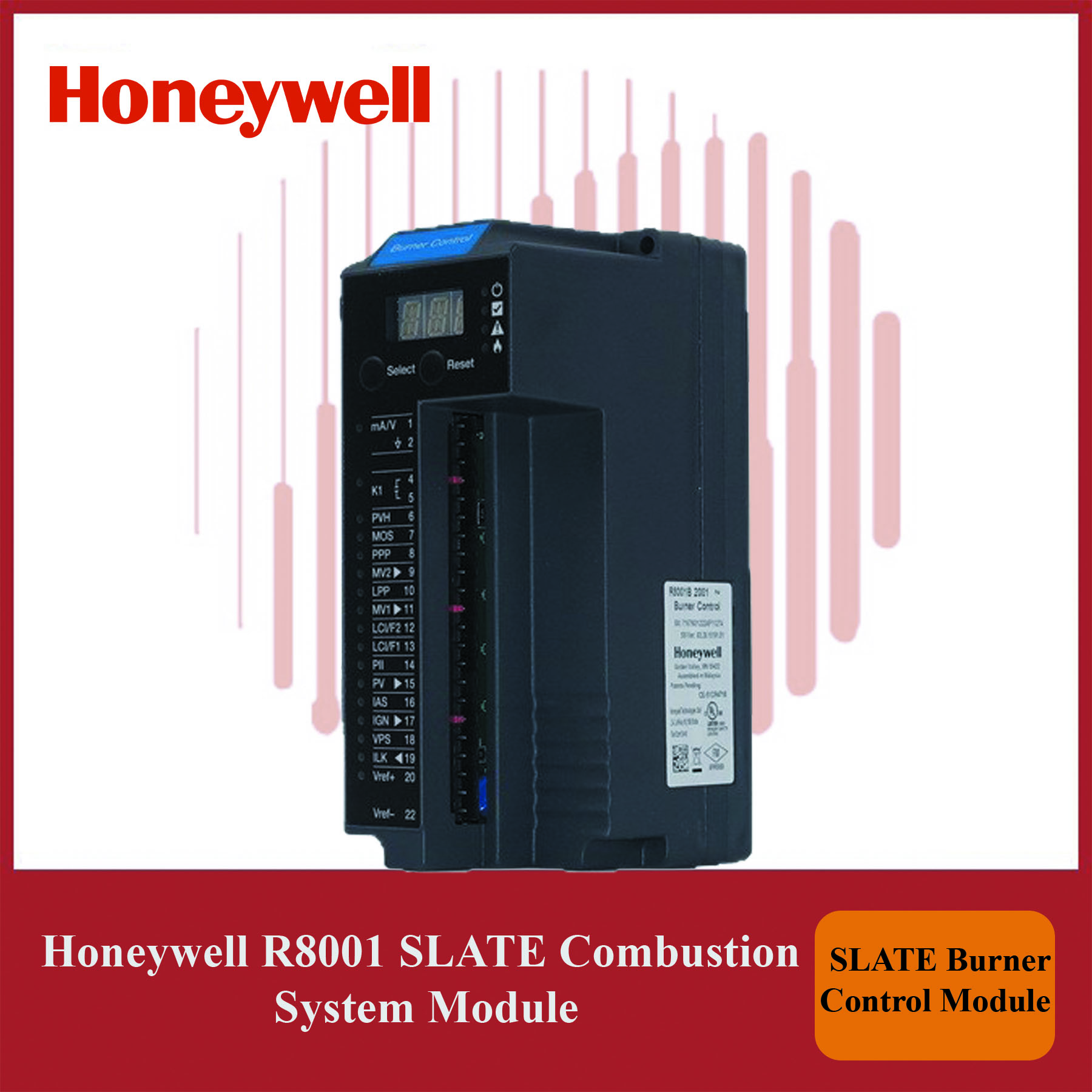

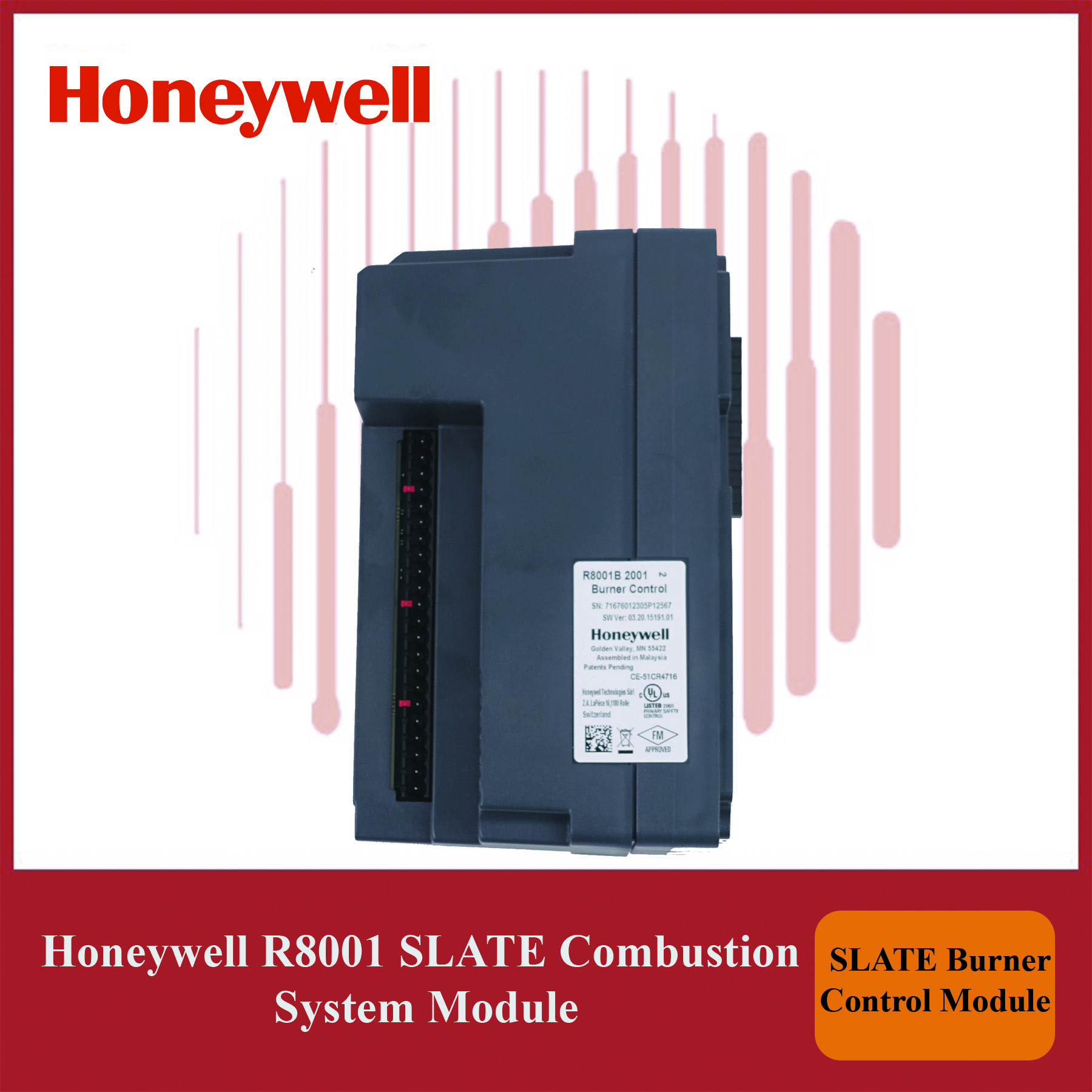

Honeywell R8001B2001/U SLATE Combustion System Module – R8001

Microprocessor based integrated combustion management
system, in a modular format, that provides configurable safety
with programmable logic for automatic boiler sequencing,
circulation pump control, fan control, electronic ignition, flame
supervision, system status indication, firing rate control, load
control and limit control. Provides level of safety, functional
capability and features beyond conventional controls.
• Modular concept that is DIN Rail mountable for easy assembly
• 24 VDC to 24 VAC to 240 VAC in one system
• Configurable safety modules include: Base, Burner Control, Flame
Amp modules, Fuel Air Ratio and Limit
• Programmable logic modules include: Analog I/O and Digital I/O
modules, and Annunciation
• Actuators that provide 50 in/lb and 150 in/lb in NEMA 1 or NEMA 4
(300 and 900 in/lb available through Durastep Actuators from Maxon
specifically configured for SLATE)
• Function block programming via SLATEAXTOOL or SLATE-N4-
TOOL
• 2 Fuel capability
• Valve Proving
• BACNet, Modbus, and web services capability through SLATE Base
• 10 inch color touch screen display
SLATE Applications
• Industrial and Commercial Burner Boiler Controls
• Air Handling
• Drying Applications
• Automotive Paint Booths
• Single Stage Furnaces and Kilns
• And more
