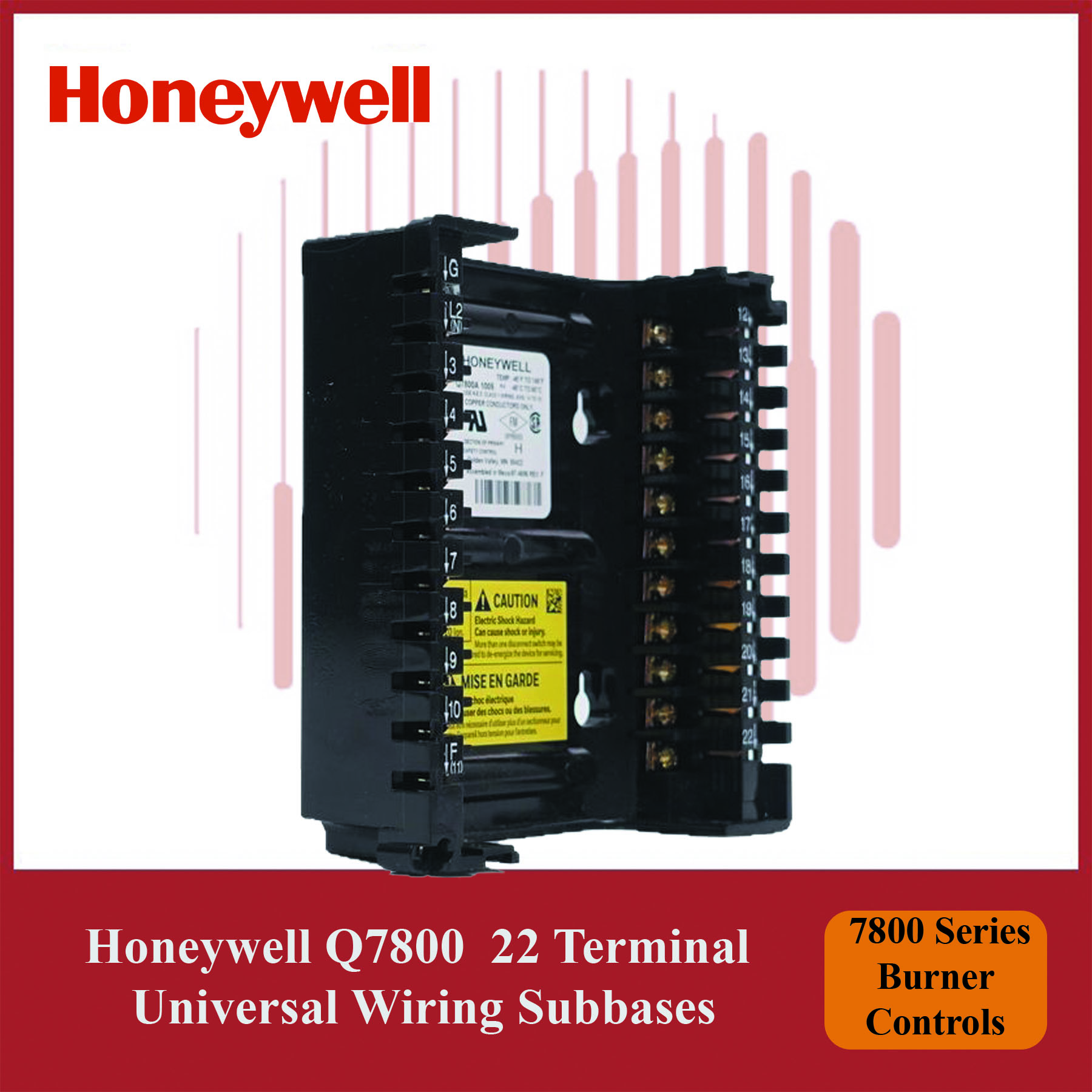

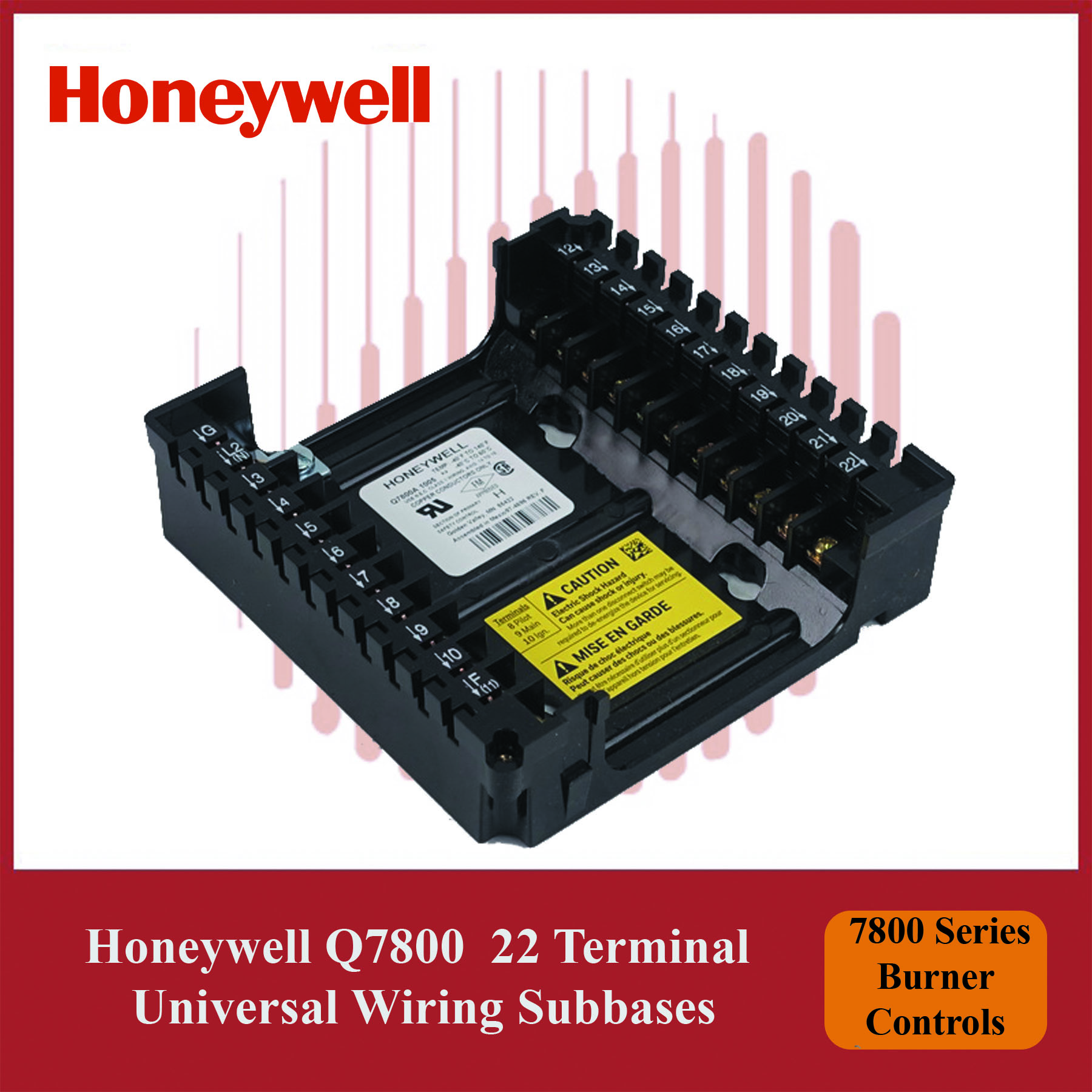

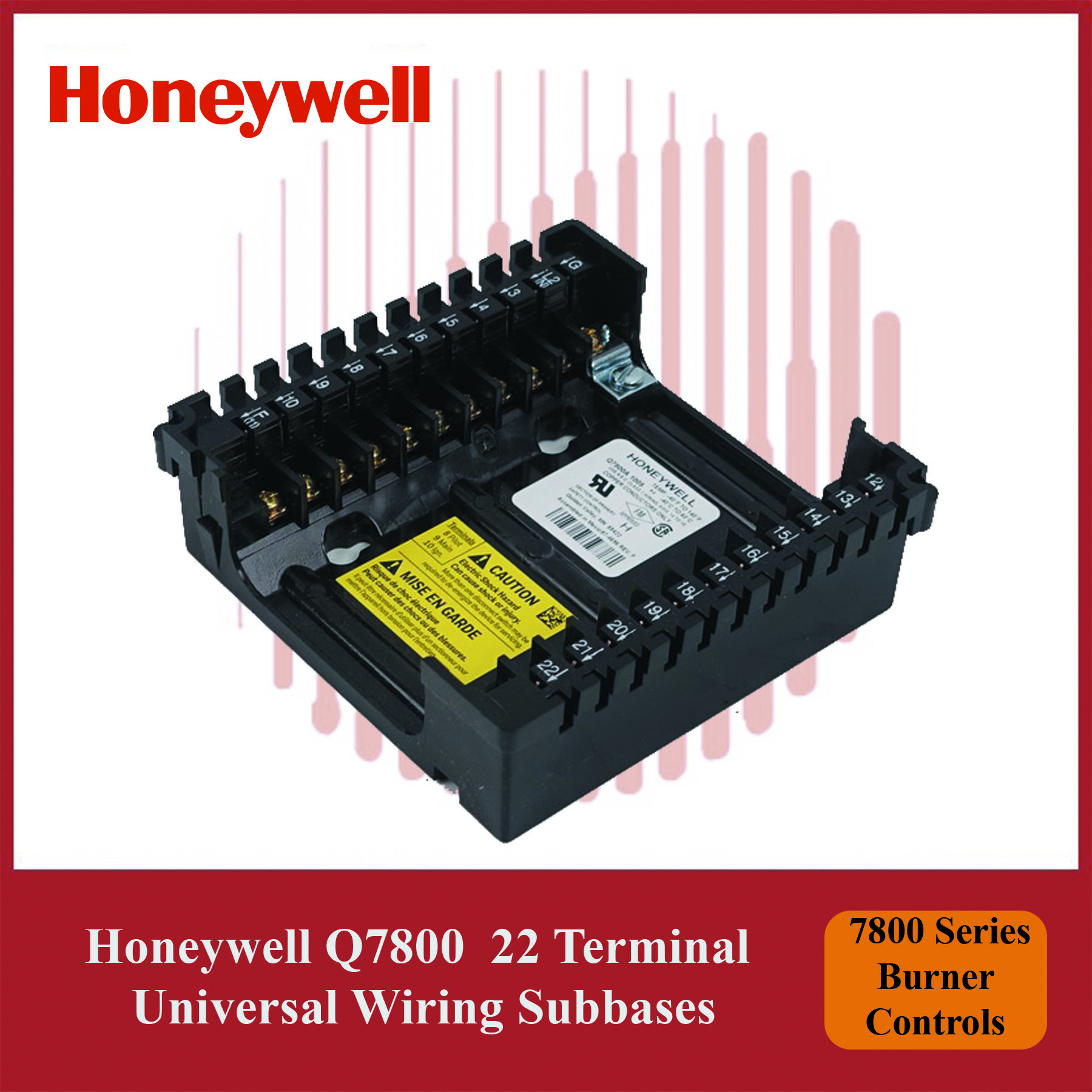

Honeywell Q7800F1004/U 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
- Application: Wiring Adapter Subbase
- Approximate, Dimensions: 5 in. high x 5 in. wide x 1 3/4 in. deep (127 mm
high x 127 mm wide x 44 mm deep) - Weight lb. (kg): 15 oz (0.43 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized,
File No. MP268; Guide No. MCCZ2. - Used With: Burner/wall mount adapter subbase for
RA890 Used With RM7890 EC7890.
Original price was: $425.00.$375.00Current price is: $375.00.
(Save $50.00)
In stock

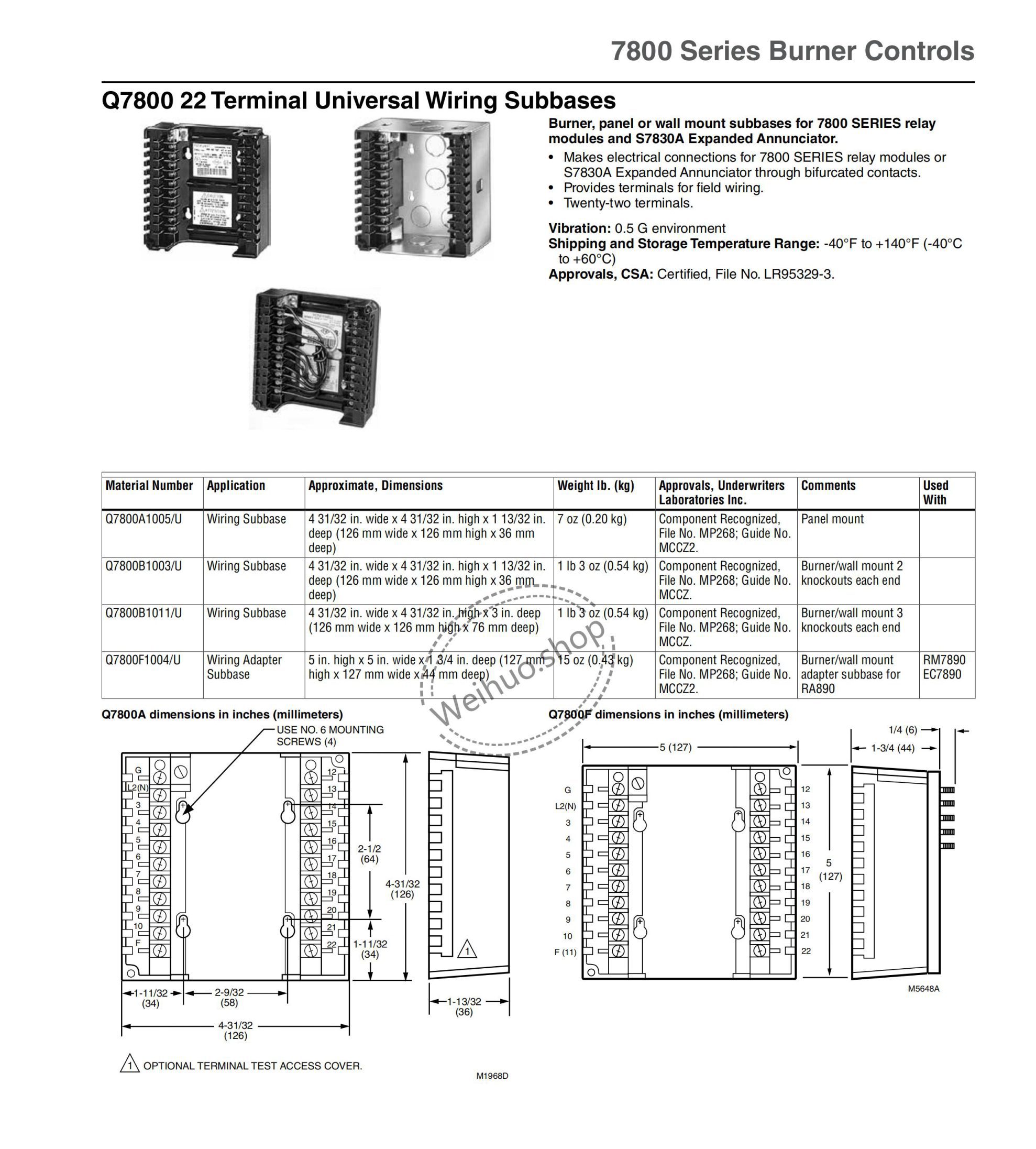

Q7800 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
Burner, panel or wall mount subbases for 7800 SERIES relay
modules and S7830A Expanded Annunciator.
Description
Burner, panel or wall mount subbases for 7800 SERIES relay
modules and S7830A Expanded Annunciator.
• Makes electrical connections for 7800 SERIES relay modules or
S7830A Expanded Annunciator through bifurcated contacts.
• Provides terminals for field wiring.
• Twenty-two terminals.
Specifications
- Vibration0.5 G environment
- Shipping and Storage Temperature Range-40°F to +140°F (-40°C to +60°C)
- Approvals, CSACertified, File No. LR95329-3.
Additional information
| Weight | 0.43 kg |
|---|---|
| Dimensions | 12.7 × 12.7 × 4.445 cm |
