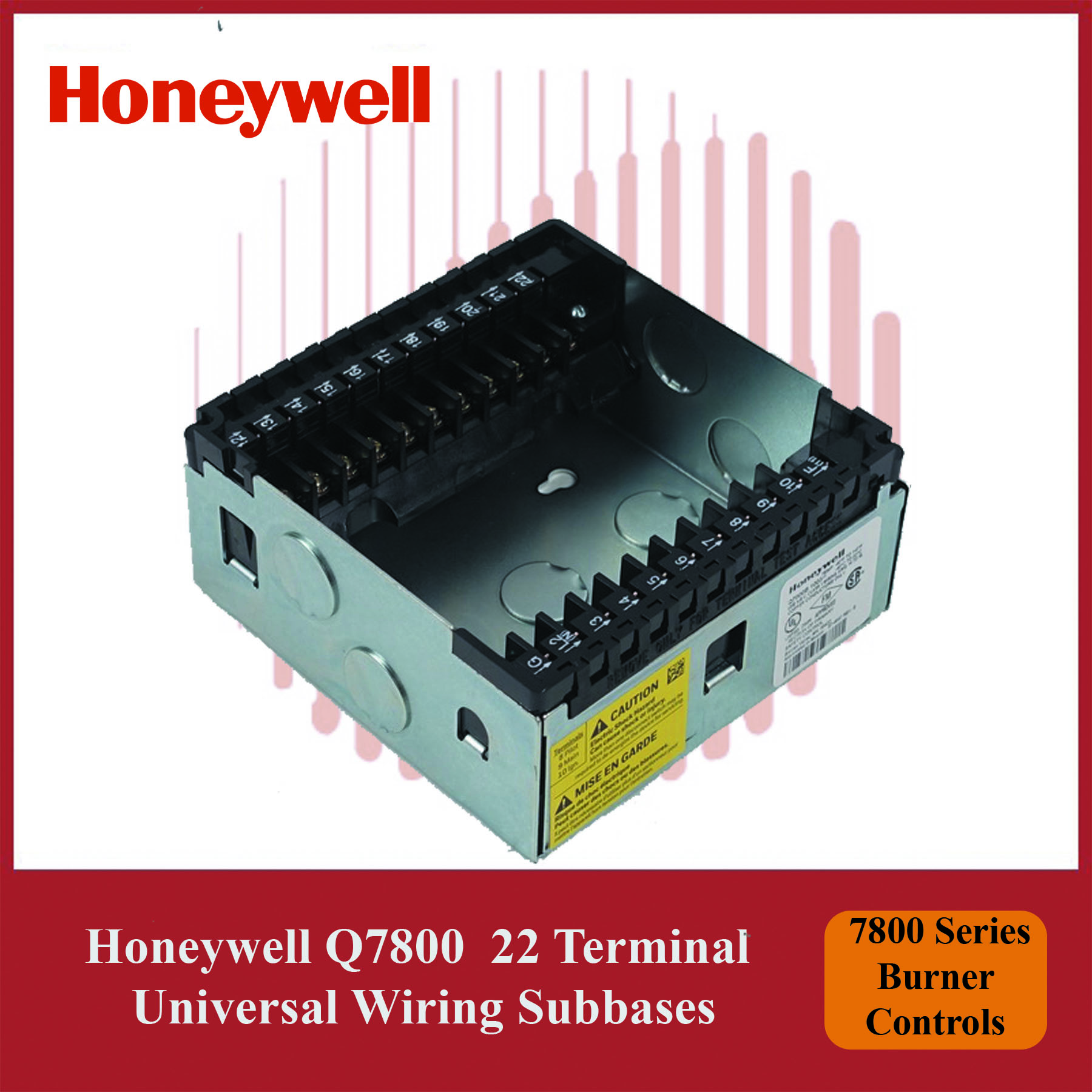

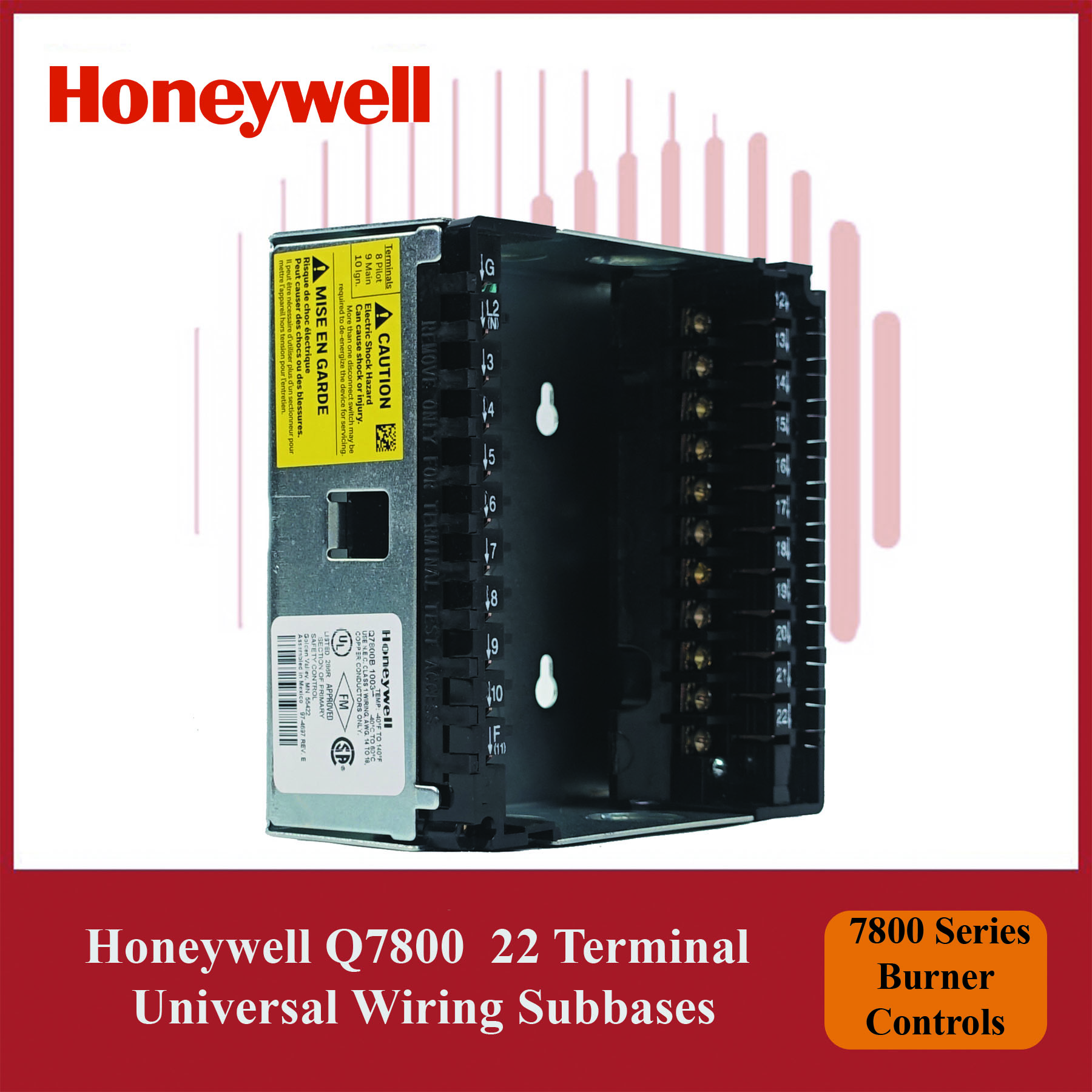

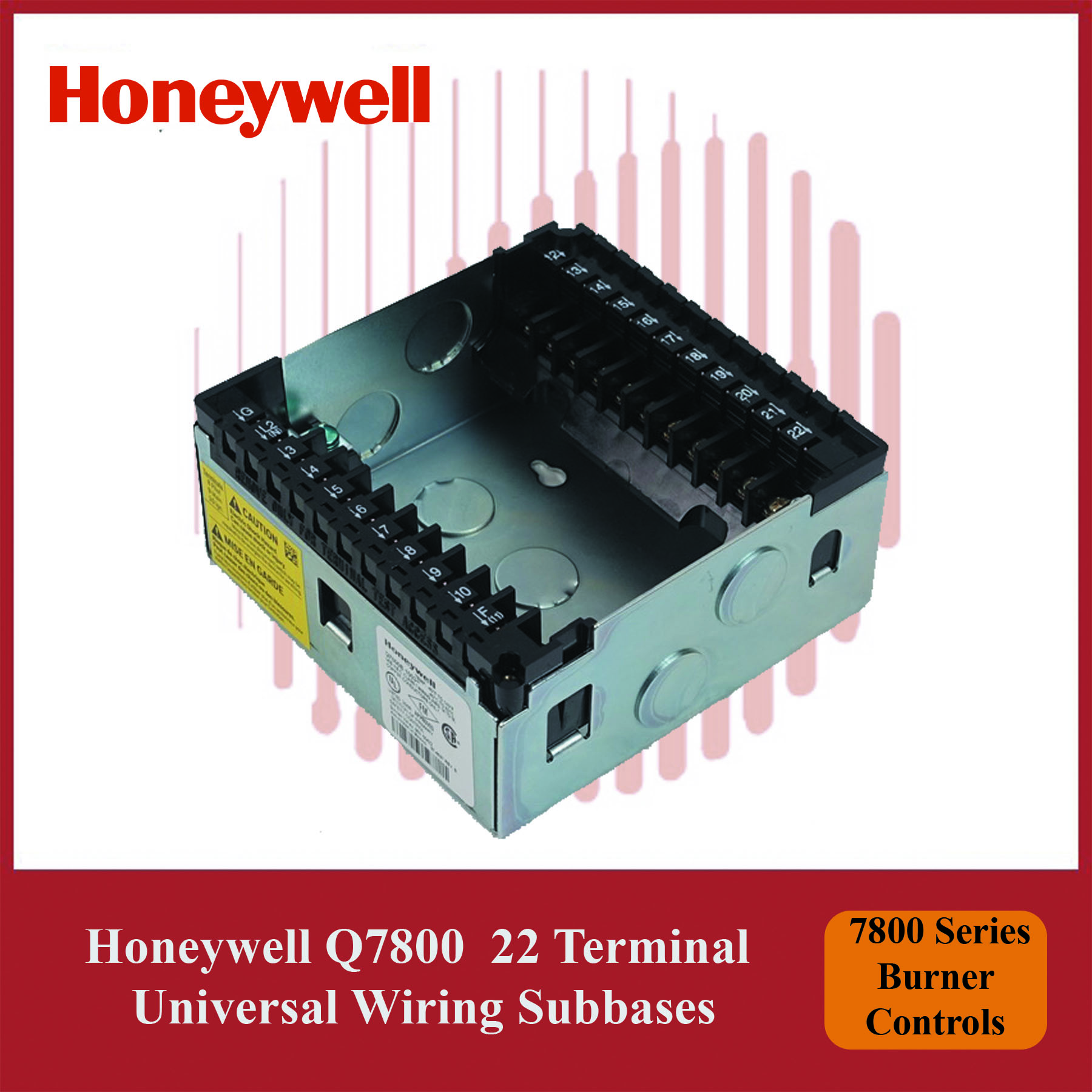

Honeywell Q7800B1003/U 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
- Application: Wiring Subbase
- Approximate, Dimensions: 4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in.
deep (126 mm wide x 126 mm high x 36 mm deep) - Weight lb. (kg): 1 lb 3 oz (0.54 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized,
File No. MP268; Guide No. MCCZ2. - Used With: Burner/wall mount 2 knockouts each end
Original price was: $425.00.$375.00Current price is: $375.00.
(Save $50.00)
In stock
Q7800 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
Burner, panel or wall mount subbases for 7800 SERIES relay
modules and S7830A Expanded Annunciator.
Description
Burner, panel or wall mount subbases for 7800 SERIES relay
modules and S7830A Expanded Annunciator.
• Makes electrical connections for 7800 SERIES relay modules or
S7830A Expanded Annunciator through bifurcated contacts.
• Provides terminals for field wiring.
• Twenty-two terminals.
Specifications
- Vibration0.5 G environment
- Shipping and Storage Temperature Range-40°F to +140°F (-40°C to +60°C)
- Approvals, CSACertified, File No. LR95329-3.
Additional information
| Weight | 0.54 kg |
|---|---|
| Dimensions | 12.621 × 12.621 × 3.572 cm |
