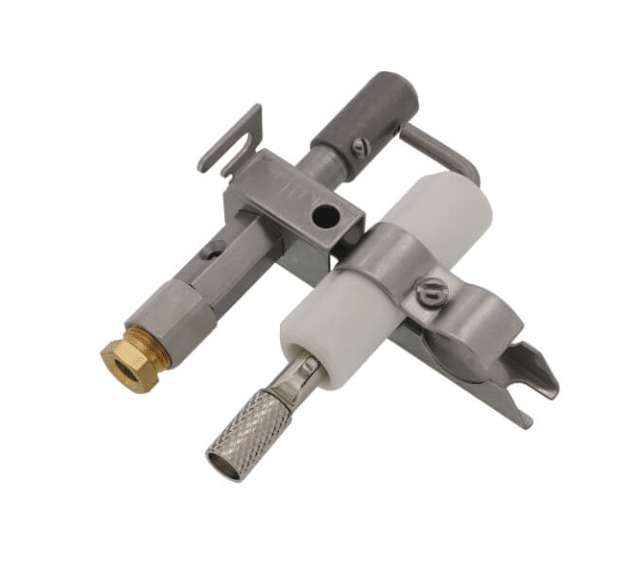

Honeywell Q179A1076/U Pilot Burner Flame Rectifier Module

Q179A Gas Pilot Burner Assemblies use the flame rectification
principle to prove the flame. Q179A are used in conjunction with a
suitable electronic flame safeguard control on industrial or
commercial gas and gas pilot ignited oil burners.
• Q179A is a gas pilot assembly (with a flame electrode rod) and
ignition electrode, making it suitable for applications requiring an
interrupted or intermittent electrically ignited gas pilot burner.
• Primary aerated type burner is equipped with stainless steel fins that
provide the proper flame rod area to ground area ratio for maximum
flame signal and flame stabilization.
• Stainless steel electrode(s) are mounted in ceramic insulators, which
permit electrode adjustment.
• Rajah connectors facilitate disconnecting (A1126 has terminal
screws).
• Bracket permits side or end mounting.
