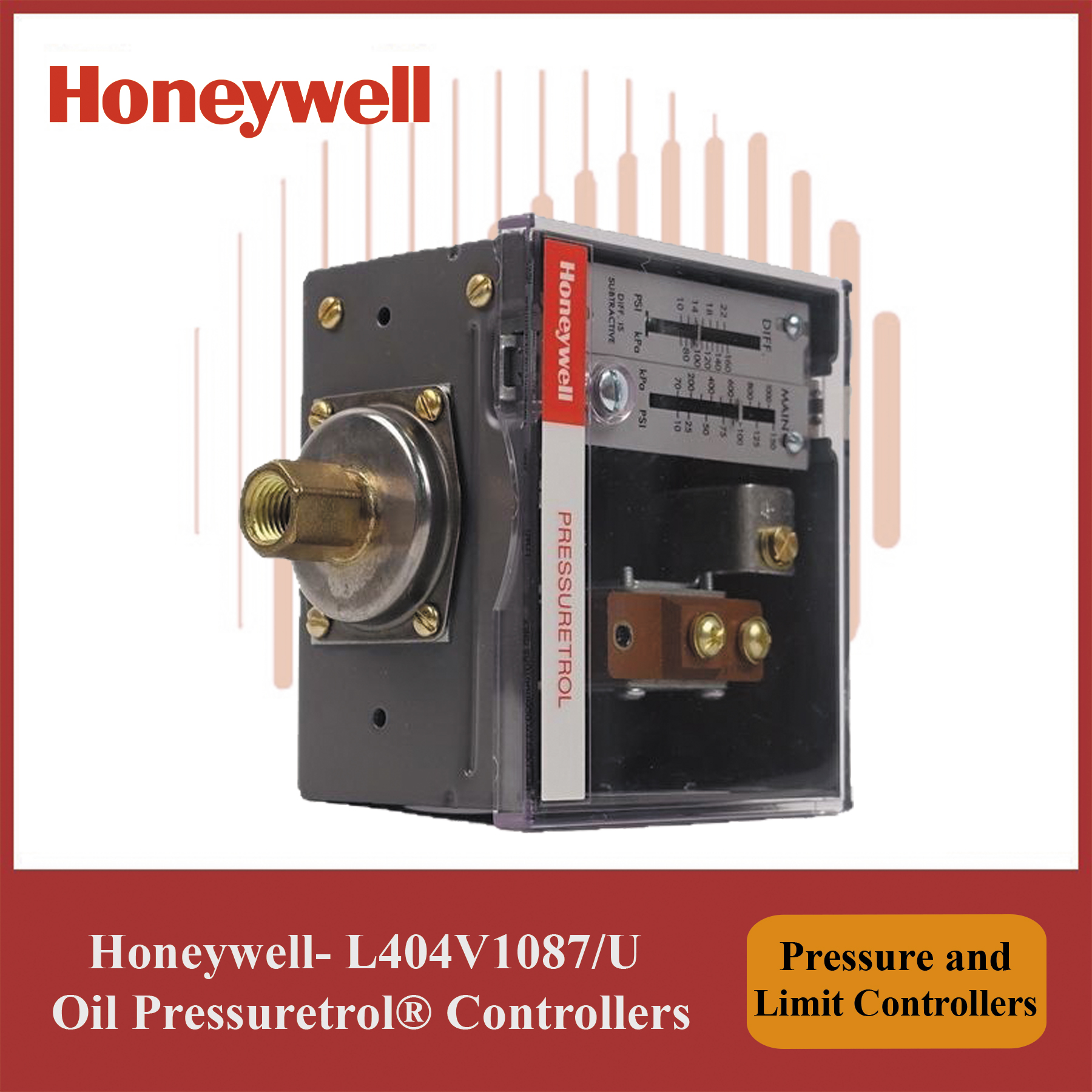

Honeywell Oil Pressuretrol® Module- L404V1087/U | Pressure and Limit Controllers
- Operating Range (psi): 10 to 150 psi; 225 psi – Maximum Sustained
- Operating Range (kPa): 70 to 1035 kPa; 1151 kPa – Maximum Sustained
- Differential Pressure Range (psi): 10 to 22 psi
- Differential Pressure Range (kPa): 70 to 150 kPa
- Switching Action: Snap switch makes R-W on pressure rise
- Includes: Miss-wiring Compliant (less B terminal)
Original price was: $292.00.$268.00Current price is: $268.00.
(Save $24.00)
In stock

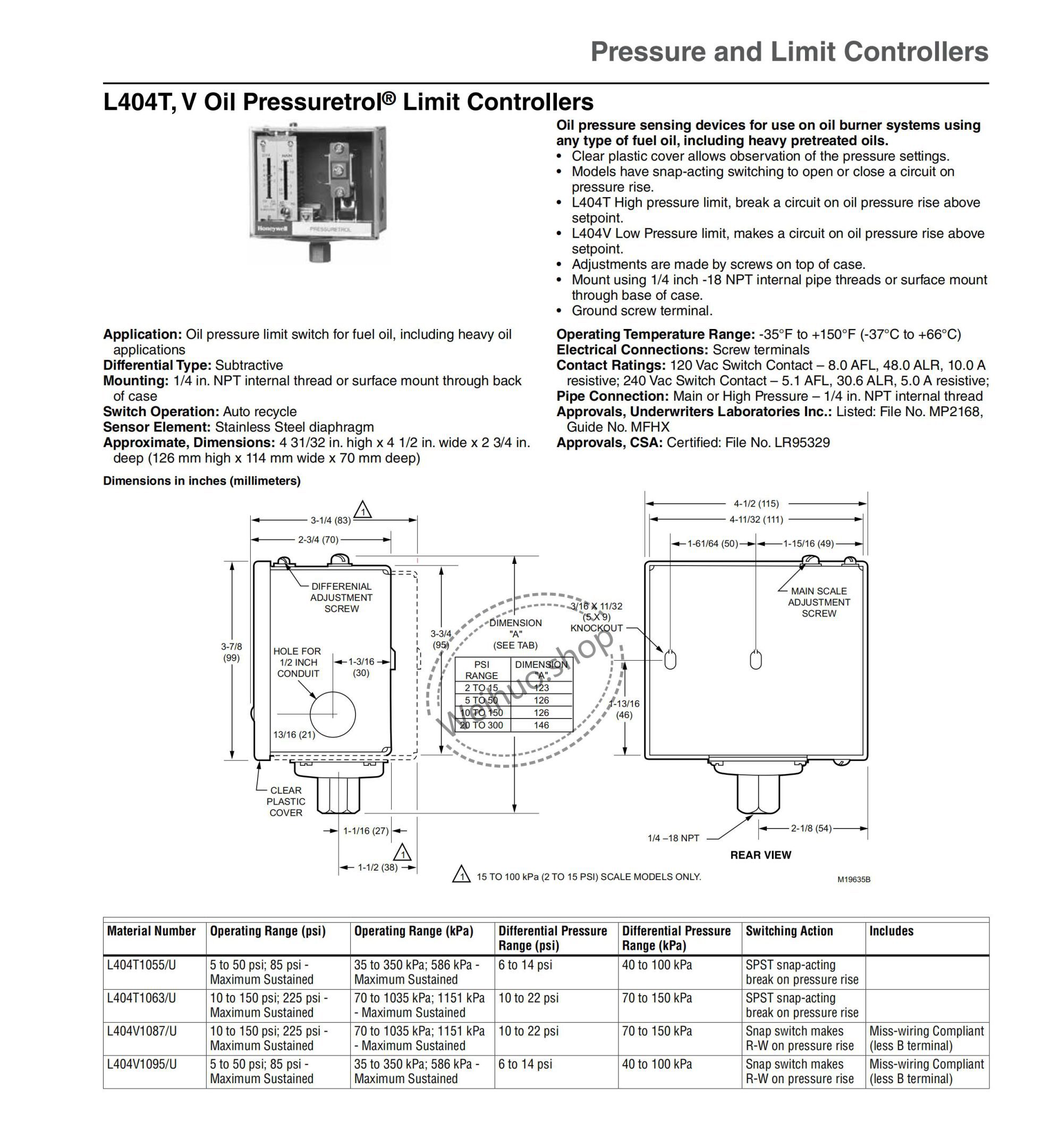

L404T, V Oil Pressuretrol® | Pressure and Limit Controllers
L404T High pressure limit, break a circuit on oil pressure rise above
setpoint. L404V Low Pressure limit, makes a circuit on oil pressure rise above
setpoint.
Description
Oil pressure sensing devices for use on oil burner systems using
any type of fuel oil, including heavy pretreated oils.
• Clear plastic cover allows observation of the pressure settings.
• Models have snap-acting switching to open or close a circuit on
pressure rise.
• L404T High pressure limit, break a circuit on oil pressure rise above
setpoint.
• L404V Low Pressure limit, makes a circuit on oil pressure rise above
setpoint.
• Adjustments are made by screws on top of case.
• Mount using 1/4 inch -18 NPT internal pipe threads or surface mount
through base of case.
• Ground screw terminal.
Specifications
- ApplicationOil pressure limit switch for fuel oil, including heavy oil applications
- Differential TypeSubtractive
- Mounting1/4 in. NPT internal thread or surface mount through back of case
- Switch OperationAuto recycle
- Sensor ElementStainless Steel diaphragm
- Approximate, Dimensions4 31/32 in. high x 4 1/2 in. wide x 2 3/4 in. deep (126 mm high x 114 mm wide x 70 mm deep)
- Operating Temperature Range-35°F to +150°F (-37°C to +66°C)
- Electrical ConnectionsScrew terminals
- Contact Ratings120 Vac Switch Contact – 8.0 AFL, 48.0 ALR, 10.0 A resistive; 240 Vac Switch Contact – 5.1 AFL, 30.6 ALR, 5.0 A resistive;
- Pipe ConnectionMain or High Pressure – 1/4 in. NPT internal thread
- Approvals, Underwriters Laboratories Inc.Listed: File No. MP2168, Guide No. MFHX
- Approvals, CSACertified: File No. LR95329
Additional information
| Dimensions | 12.6 × 11.4 × 7 cm |
|---|
