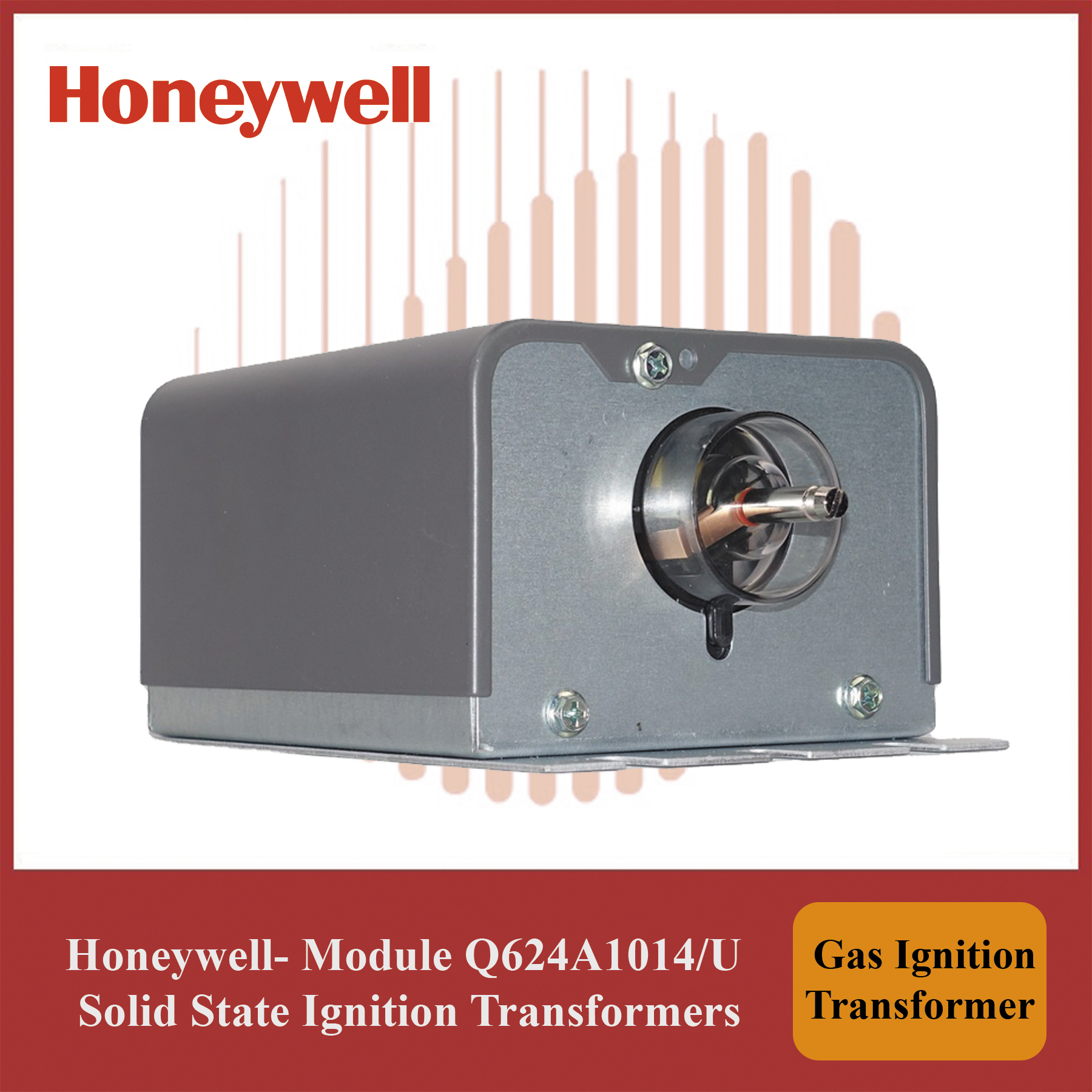

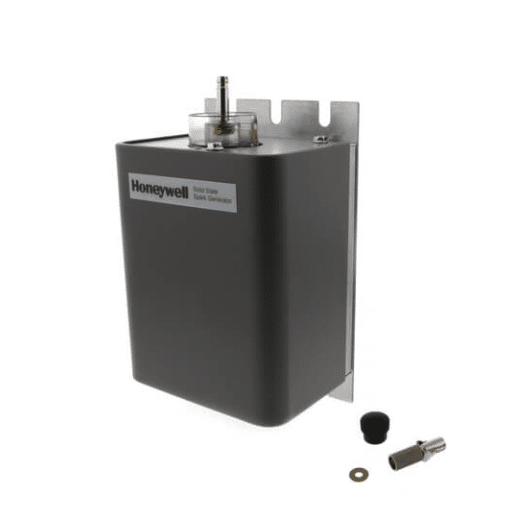

Honeywell- Module Q624A1014/U Solid State Ignition Transformers

Used to ignite pilots on commercial or industrial gas burners.
• Ignite gas pilots with spark gaps up to 1/4 in. (6.5 mm).
• Reliable light off with 15,000 peak voltage.
• Prevent detection of the ignition spark when properly applied in a
flame detection system with the C7027, C7035 or C7044 Minipeeper
Ultraviolet Flame Detector.
• For use only in interrupted ignition applications.
• Mount in same space used by conventional ignition transformer.
• Light weight, 3 lbs. (1.4 kg) versus 8-1/2 lbs. (3.9 kg) for standard
transformers.

Accessories:
32004766-001/U – 24 inch Ignition Cable for Q624 and Q652
32004766-002/U – 120 inch Ignition Cable used with Q624 and Q652
32004766-003/U – Ignition Cable for Q624 and Q652 (order by foot –
enter the number of feet in the Quantity box)
32004766-004/U – 60 inch Ignition Cable with straight boots
32004766-005/U – 8 inch Ignition Cable w/90 degree and straight boot
32004766-006/U – 36 inch Ignition Cable w/90 degree and straight
boot
50060793-001/U – 24 inch Ignition Cable for Q624 and Q652
50060793-002/U – 120 inch Ignition Cable used with Q624 and Q652
50060793-003/U – Ignition Cable for Q624 and Q652 (order by foot –
enter the number of feet in the Quantity box)
50060793-004/U – 60 inch Ignition Cable with straight boots
50060793-005/U – 8 inch Ignition Cable w/90 degree and straight boot
50060793-006/U – 36 inch Ignition Cable w/90 degree and straight
boot
50060793-007/U – 36 inch ignition cable w/90 degree boot on one end
only
50060793-008/U – Ignition Cable w/90 degree boot on one end only
50060793-009/U – Ignition Cable w/90 degree boot on one end only
50060793-010/U – Ignition Cable w/90 degree boot on one end only
50060793-011/U – 19 inch Ignition Cable w/90 degree and ring end
used with Q624 and Q652
50060793-012/U – 36 inch Ignition Cable with 90 degree boot and
1/4 in. spad terminal used with Q624 and Q652
