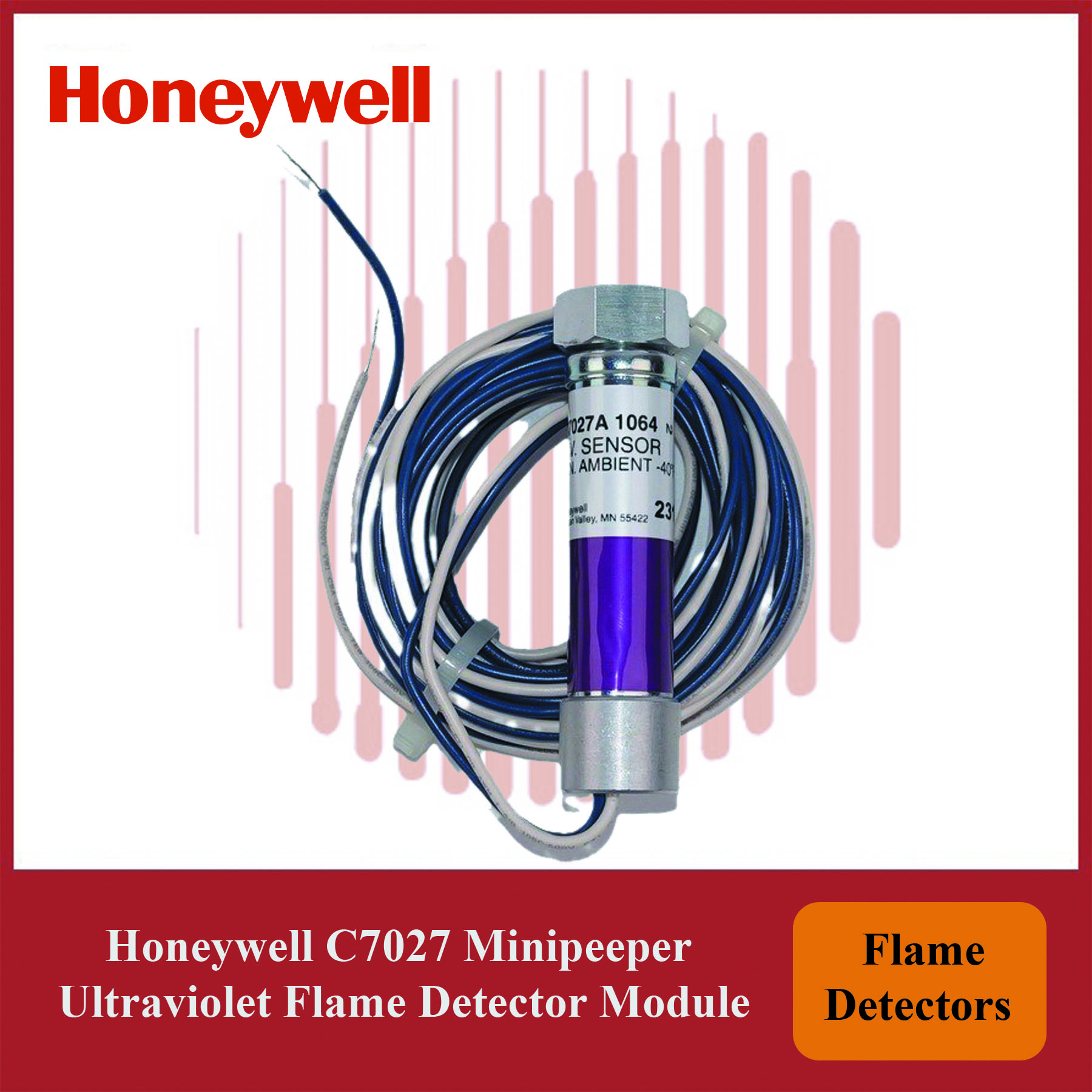

Honeywell Minipeeper Ultraviolet Flame Detector – C7027A1031/U Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 96 in. (2438 mm)
- Mounting: Integral nut for 1/2 in. sighting pipe
- Ambient Temperature Range: -40°F to 215°F (-40°C to 102°C)
- Detects: Detects ultraviolet radiation in flames
Original price was: $295.00.$238.00Current price is: $238.00.
(Save $57.00)
In stock
C7027 Mini peeper Ultraviolet Flame Detector
Compact Flame Detector for use with flame safeguard controls
with ultraviolet amplifiers. C7027 seals against pressures up to 5 psi (34.5 kPa) when correctly installed.
Description
Compact Flame Detector for use with flame safeguard controls
with ultraviolet amplifiers.
• Use with Honeywell Flame Safeguard primary safety controls and
burners requiring ultraviolet flame detection.
• C7027 mounts on a 1/2 in. sighting pipe by using an integral collar.
• Detectors can be wired in parallel for difficult sighting applications.
• C7027 seals against pressures up to 5 psi (34.5 kPa) when correctly
installed.
• Allows for blast tube mounting due to compact size.
• C7044 mounts with a two screw bracket.
• The C7044 UV sensor tube is enclosed in a stainless steel housing.
• C7044 has the capability of side or end viewing in flame monitoring
applications
Specifications
- TypeUltraviolet, Minipeeper
- Electrical Connections2 NEC Class 1 leadwires Vibration: 0.5 G max
- Vibration0.5 G max
- Approvals, Underwriters Laboratories Inc.Listed: File No. MP268, Guide No. MCCZ
- Approvals, CSACertified: Master Report LR95329-1
- Approvals, Swiss REAcceptable
- Approvals, Factory MutuaApproved: Report No. 24181.03
- Used WithFlame Amplifiers: R7249A, B, R7849A, B, R7749B, R7259, R7290
