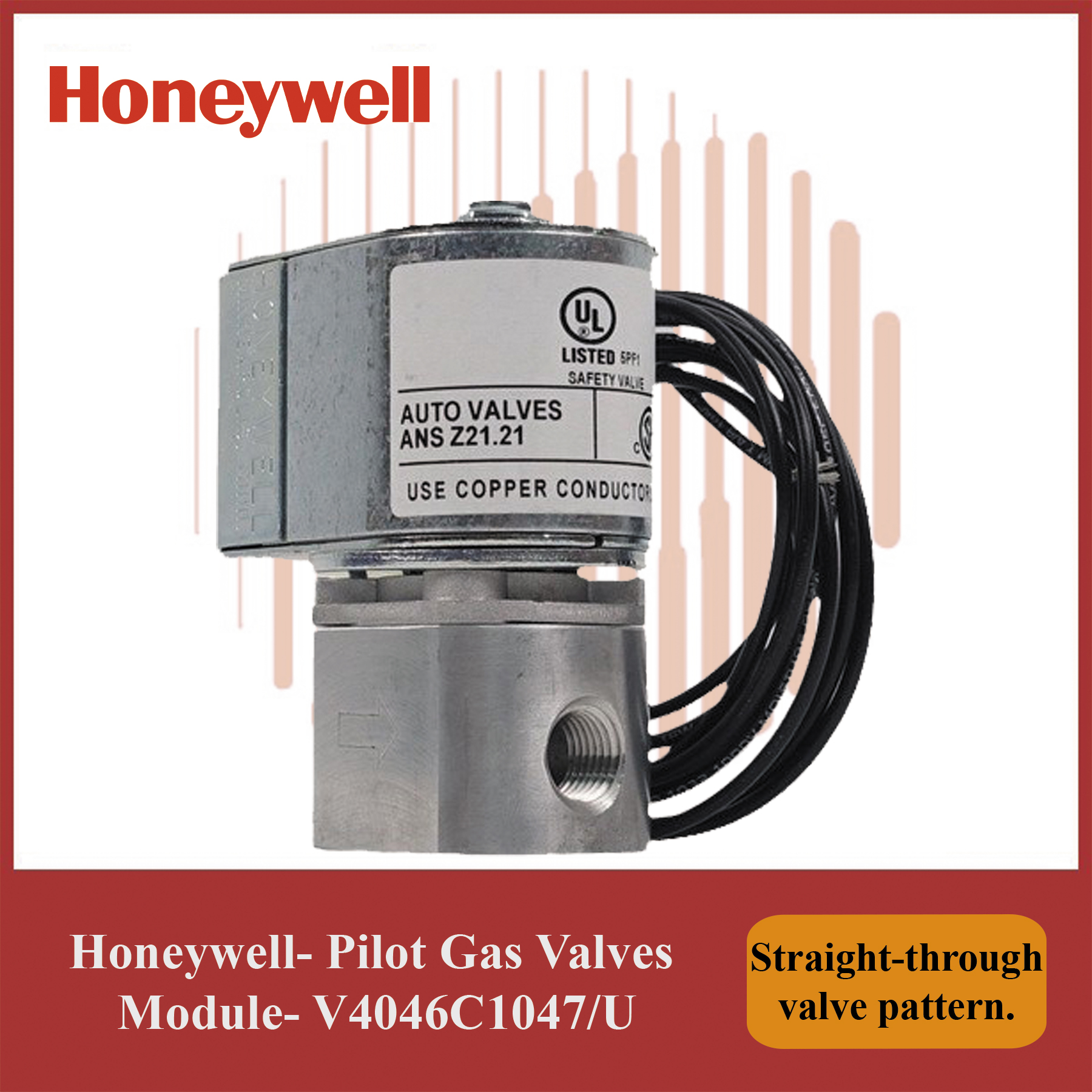

Honeywell Gas Valve Control- Pilot Gas Valves- V4046C1047/U Module
- Pipe Size (inch): 1/4 in.
- Capacity (cfh): 55 cfh
- Capacity (m3/hr): 1.56 m3/hr
- Voltage: 110 Vac; 120 Vac
- Frequency: 50 Hz; 60 Hz
- Electrical Connections: Two 36-in. leadwires and 1/2 in. conduit bushing
- Approvals, Swiss RE: Acceptable
Original price was: $367.00.$319.00Current price is: $319.00.
(Save $48.00)
In stock
V4046C; V8046C Pilot Gas Valves
Provide on-off control of natural, LP and manufactured gases to
pilot burners in industrial and commercial applications.
Description
Provide on-off control of natural, LP and manufactured gases to
pilot burners in industrial and commercial applications.
• Magnetically operated, normally closed.
• Provide instantaneous action when energized.
• On power failure, valve closes in one second maximum.
• Use in any position, directly in pipe line or on support bracket.
• Replace the solenoid coil without removing the valve body from the
piping connections.
• Straight-through valve pattern.
• Available in line voltage or low voltage models.
Specifications
- Type of FuelAir; natural; manufactured; LP
- Body PatternStraight-through
- Valve Opening Time1 sec max
- Valve Closing Time1 sec max
- MountingDirectly in pipe or on support bracket
- MaterialsBody – Aluminum
- Power Consumption8 W
- Operating Temperature Range-40°F to +125°F (-40°C to +52°C)
- Approvals, Underwriters Laboratories Inc.Listed: File No. MH1639, V3, S3 - Guide No. YIOZ
- Approvals, CSACertificate No. 158158-2500006058, Guide No. C3371-03, 83
- Approvals, Factory MutualApproved: Report No. 17450
- Pressure Ratings (psi)10 psi
- Pressure Ratings (kPa)68.9 kPa
