Honeywell Gas/Air Servo Regulated Gas Valve Control- V4730C1014-0000 Module
- Pipe Size (inch): 3/4 in.
- Capacity (kW): Natural Gas 0.64 sp.gr – 43-300 KW
- Capacity (kBtuh): Natural Gas 0.64 sp.gr – 146- 1024 kBtuh
- Voltage: 120 Vac (+10%, -15%)
- Includes: Mesh screen filter and 32006652-002 Flange kit.
- Max. Capacity with Strainer (cfh): Nat. Gas (Delta P= 1 in. w.c.) – 1024cfh
Original price was: $327.00.$272.00Current price is: $272.00.
(Save $55.00)
In stock

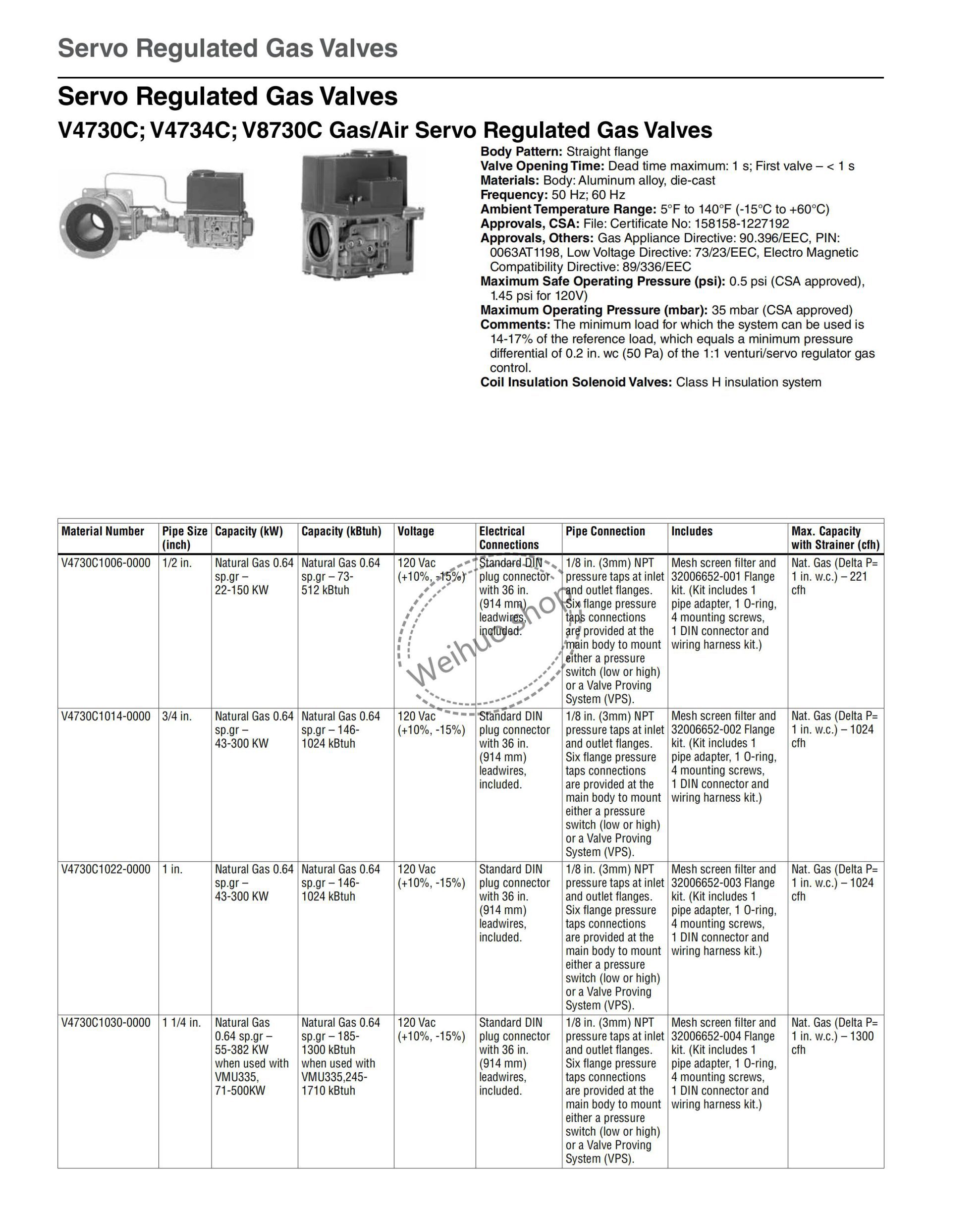

V4730C; V4734C; V8730C Gas/Air Servo Regulated Gas Valves

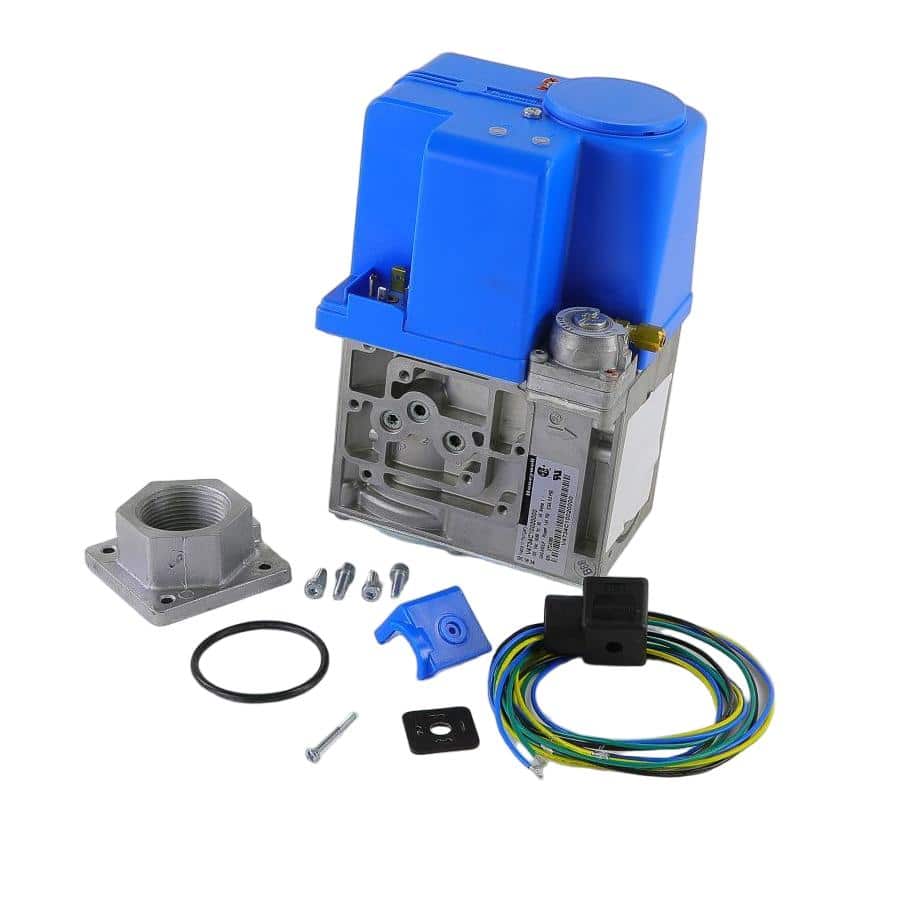

Kit includes 1 pipe adapter, 1 O-ring, 4 mounting screws,
1 DIN connector and wiring harness kit.
Description
1/8 in. (3mm) NPT pressure taps at inlet and outlet flanges. Six flange pressure taps connections are provided at the
main body to mount either a pressure switch (low or high) or a Valve Proving System (VPS). Kit includes 1 pipe adapter, 1 O-ring, 4 mounting screws, 1 DIN connector and wiring harness kit.
Specifications
- Body PatternStraight flange
- Valve Opening TimeDead time maximum: 1 s; First valve – < 1 s
- MaterialsBody: Aluminum alloy, die-cast
- Frequency50 Hz; 60 Hz
- Ambient Temperature Range5°F to 140°F (-15°C to +60°C)
- Electrical ConnectionsStandard DIN plug connector with 36 in. (914 mm) leadwires, included.
- Approvals, CSAFile: Certificate No: 158158-1227192
- Approvals, OthersGas Appliance Directive: 90.396/EEC, PIN: 0063AT1198, Low Voltage Directive: 73/23/EEC, Electro Magnetic Compatibility Directive: 89/336/EEC
- Maximum Safe Operating Pressure (psi)0.5 psi (CSA approved), 1.45 psi for 120V)
- Maximum Operating Pressure (mbar)35 mbar (CSA approved)
- CommentsThe minimum load for which the system can be used is 14-17% of the reference load, which equals a minimum pressure differential of 0.2 in. wc (50 Pa) of the 1:1 venturi/servo regulator gas control.
- Coil Insulation Solenoid ValvesClass H insulation system
