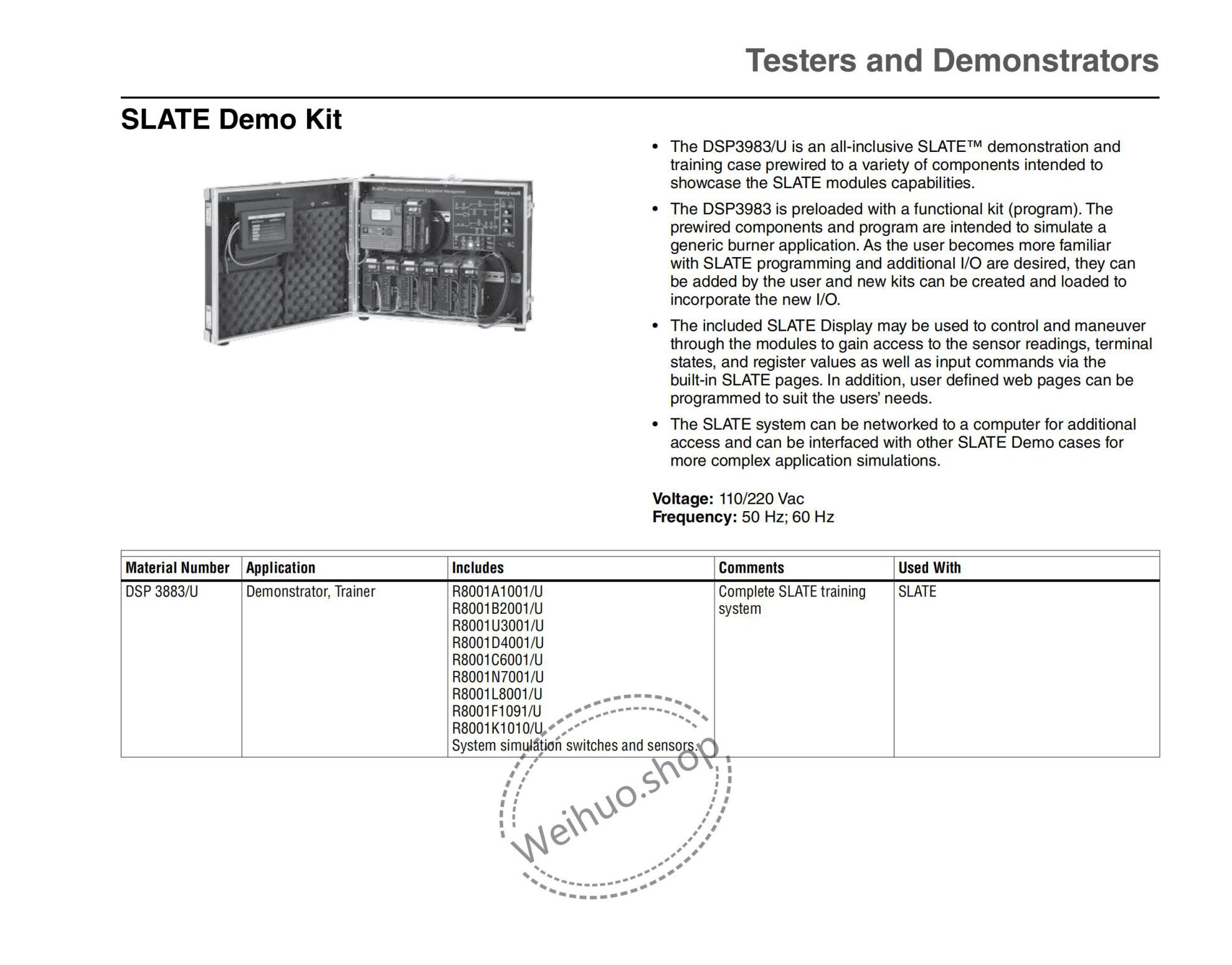

Honeywell Control Module- DSP 3883/U Testers and Demonstrators SLATE Demo Kit

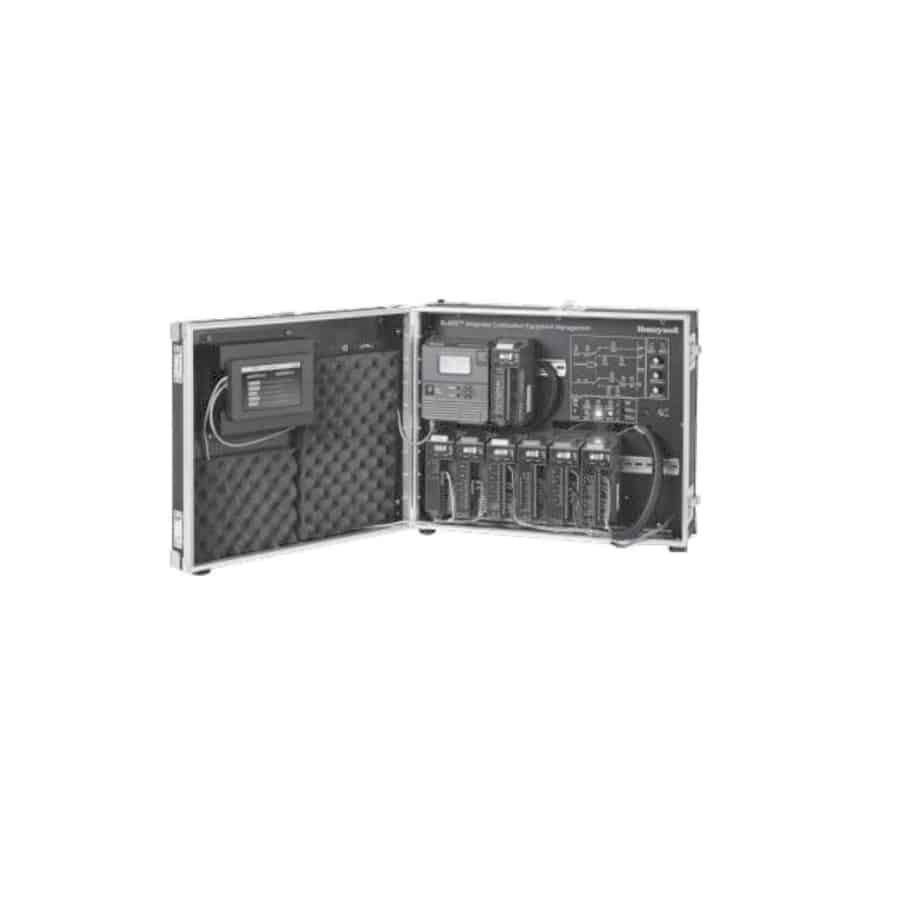

• The DSP3983/U is an all-inclusive SLATE™ demonstration and
training case prewired to a variety of components intended to
showcase the SLATE modules capabilities.
• The DSP3983 is preloaded with a functional kit (program). The
prewired components and program are intended to simulate a
generic burner application. As the user becomes more familiar
with SLATE programming and additional I/O are desired, they can
be added by the user and new kits can be created and loaded to
incorporate the new I/O.
• The included SLATE Display may be used to control and maneuver
through the modules to gain access to the sensor readings, terminal
states, and register values as well as input commands via the
built-in SLATE pages. In addition, user defined web pages can be
programmed to suit the users’ needs.
• The SLATE system can be networked to a computer for additional
access and can be interfaced with other SLATE Demo cases for
more complex application simulations.
