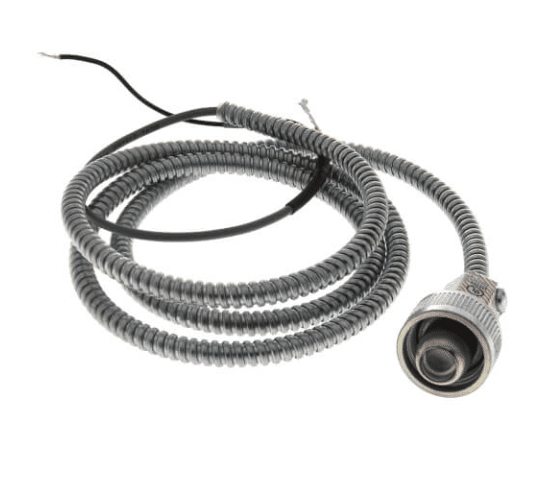

Honeywell C7915 Infrared- C7915A1028/U Module Flame Detector
- Lead Length: 48 in. (1219 mm)
- Approximate Dimensions: 1 1/4 in. diameter x 2 1/4 in. long
(32 mm diameter x 58 mm long) - Ambient Temperature Range: -20°F to 125°F operating range
(-18°C to 52°C operating range) - Includes: With magnifying lens, 32007255-001 Cell, Orifice, heat
block, and reducer bushing - Used With: Flame Amplifiers: R7852
Original price was: $287.00.$245.00Current price is: $245.00.
(Save $42.00)
In stock
C7915 Infrared Flame Detector
The C7915 Combination mount Lead Sulfide cell senses infrared
radiation from gas, oil, and coal or dual-fuel flames.
Description
The C7915 Combination mount Lead Sulfide cell senses infrared
radiation from gas, oil, and coal or dual-fuel flames.
• Used for combination or dual-fuel applications.
• Detects pilot and main flame.
• Mounts quickly and easily on a standard 3/4 in. sighting pipe.
• Works where flame rod or rectifying photocell mounts are difficult to
apply
Replacement Parts:
32007255-001/U – Lead Sulfide Cell for C7915
50019469-001/U – Magnifying Lens Assembly for C7915A
Specifications
- TypeInfrared (Lead Sulfide)
- ApplicationUsed for combination or dual-fuel applications
- Electrical ConnectionsTwo no. 18 AWG wires
- Mounting3/4 in. NPT
- Approvals, Underwriters Laboratories Inc.Listed: File No. MP268, Guide No. MCCZ
- Approvals, CSACertified: Master Report LR95329-1
- Approvals, Swiss REAcceptable
- Approvals, Factory MutualApproved: Report No. 24181.03
- Comments Infrared (Lead Sulfide) Flame Detector
- Approvals, GASTEC/EuropeanCE approved (EN 298:2012) with R7852A/B
Additional information
| Dimensions | 3.175 × 3.175 × 5.715 cm |
|---|
