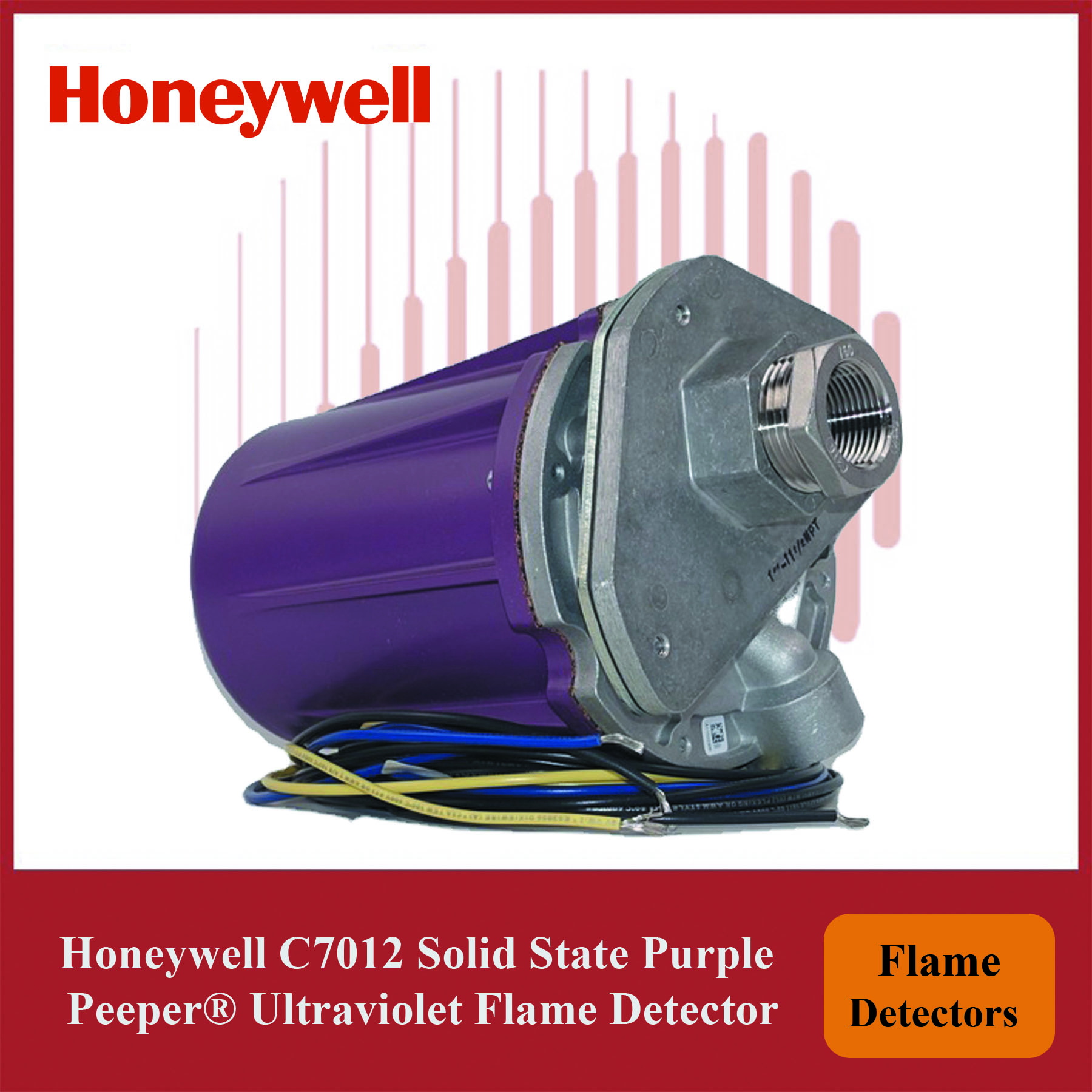

Honeywell C7012 Solid State Purple Peeper® C7012A1152/U Ultraviolet Flame Detector
- Frequency: 50 Hz; 60 Hz
- Weight: 4.25 lb (1.9 kg)
- NEMA Rating: NEMA 4
- Electrical Connections: 4 NEC Class 1 Colour coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Ambient Temperature Range: 25°F to 175°F (-4°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ
- Includes: Cast case and cover
- Used With: Flame Amplifiers: R7247A, B; R7847A, B; R7257
Original price was: $325.00.$282.00Current price is: $282.00.
(Save $43.00)
In stock

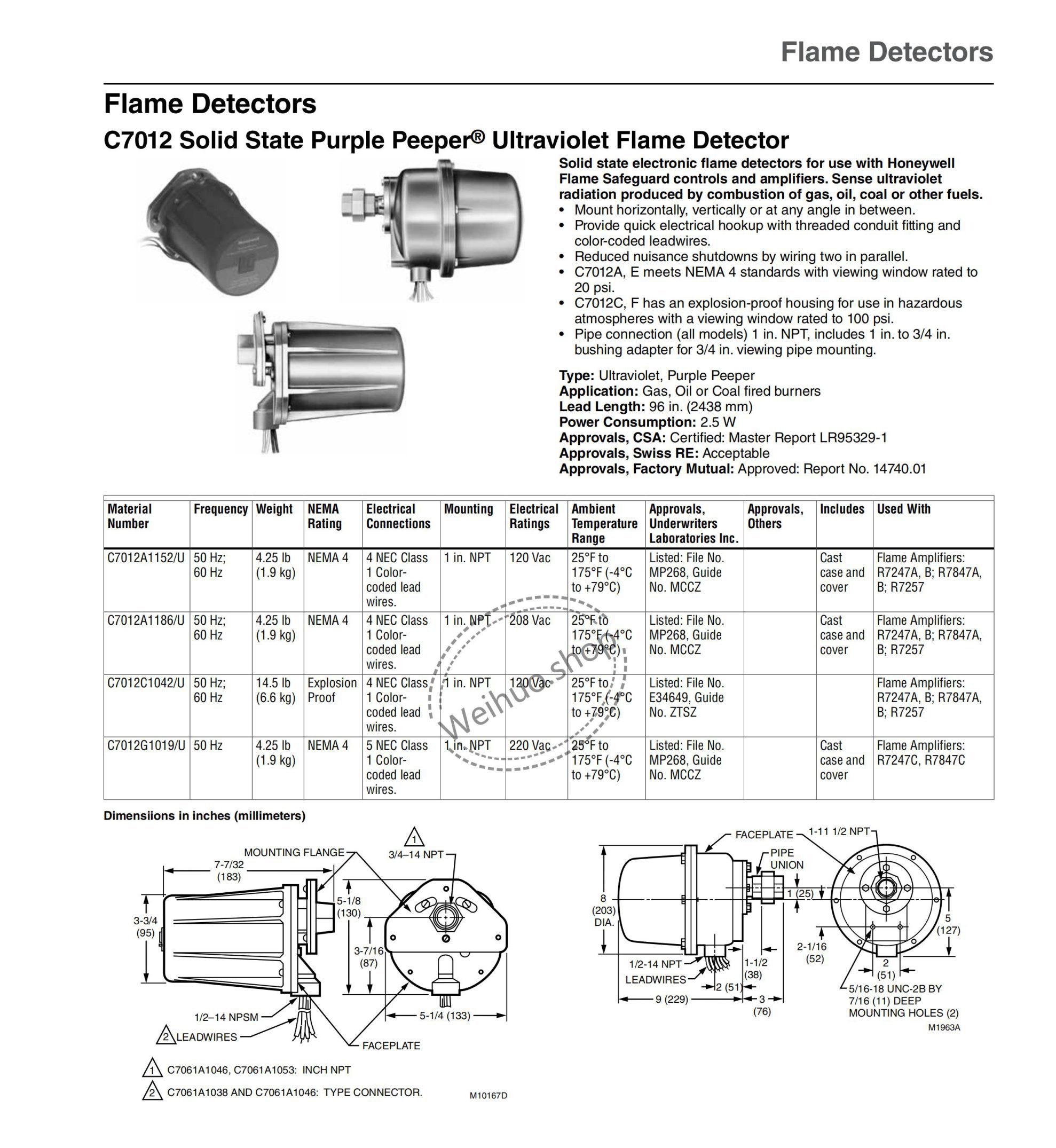

C7012 Solid State Purple Peeper® Ultraviolet Flame Detector
Solid state electronic flame detectors for use with Honeywell
Flame Safeguard controls and amplifiers. Sense ultraviolet
radiation produced by combustion of gas, oil, coal or other fuels.
Description
Solid state electronic flame detectors for use with Honeywell
Flame Safeguard controls and amplifiers. Sense ultraviolet
radiation produced by combustion of gas, oil, coal or other fuels.
• Mount horizontally, vertically or at any angle in between.
• Provide quick electrical hookup with threaded conduit fitting and
color-coded leadwires.
• Reduced nuisance shutdowns by wiring two in parallel.
• C7012A, E meets NEMA 4 standards with viewing window rated to
20 psi.
• C7012C, F has an explosion-proof housing for use in hazardous
atmospheres with a viewing window rated to 100 psi.
• Pipe connection (all models) 1 in. NPT, includes 1 in. to 3/4 in.
bushing adapter for 3/4 in. viewing pipe mounting.
Specifications
- TypeUltraviolet, Purple Peeper
- ApplicationGas, Oil or Coal fired burners
- Lead Length96 in. (2438 mm)
- Power Consumption2.5 W
- Approvals, CSACertified: Master Report LR95329-1
- Approvals, Swiss REAcceptable
- Approvals, Factory MutualApproved: Report No. 14740.01
Additional information
| Weight | 1.9 kg |
|---|
