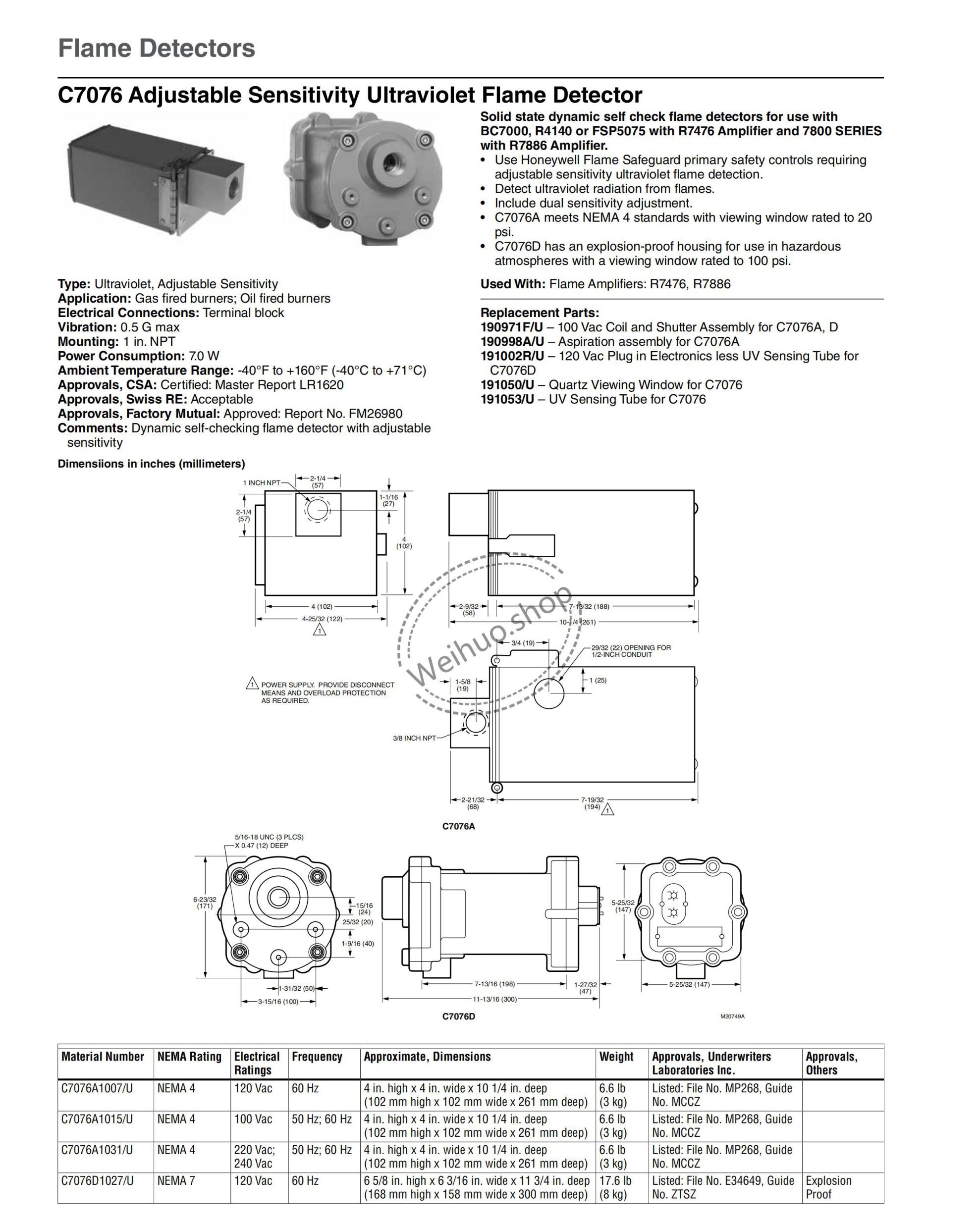

Honeywell Adjustable Sensitivity Ultraviolet Flame Detector- C7076A1031/U Module

Solid state dynamic self check flame detectors for use with
BC7000, R4140 or FSP5075 with R7476 Amplifier and 7800 SERIES
with R7886 Amplifier.
• Use Honeywell Flame Safeguard primary safety controls requiring
adjustable sensitivity ultraviolet flame detection.
• Detect ultraviolet radiation from flames.
• Include dual sensitivity adjustment.
• C7076A meets NEMA 4 standards with viewing window rated to 20
psi.
• C7076D has an explosion-proof housing for use in hazardous
atmospheres with a viewing window rated to 100 psi.

Replacement Parts:
190971F/U – 100 Vac Coil and Shutter Assembly for C7076A, D
190998A/U – Aspiration assembly for C7076A
191002R/U – 120 Vac Plug in Electronics less UV Sensing Tube for
C7076D
191050/U – Quartz Viewing Window for C7076
191053/U – UV Sensing Tube for C7076
