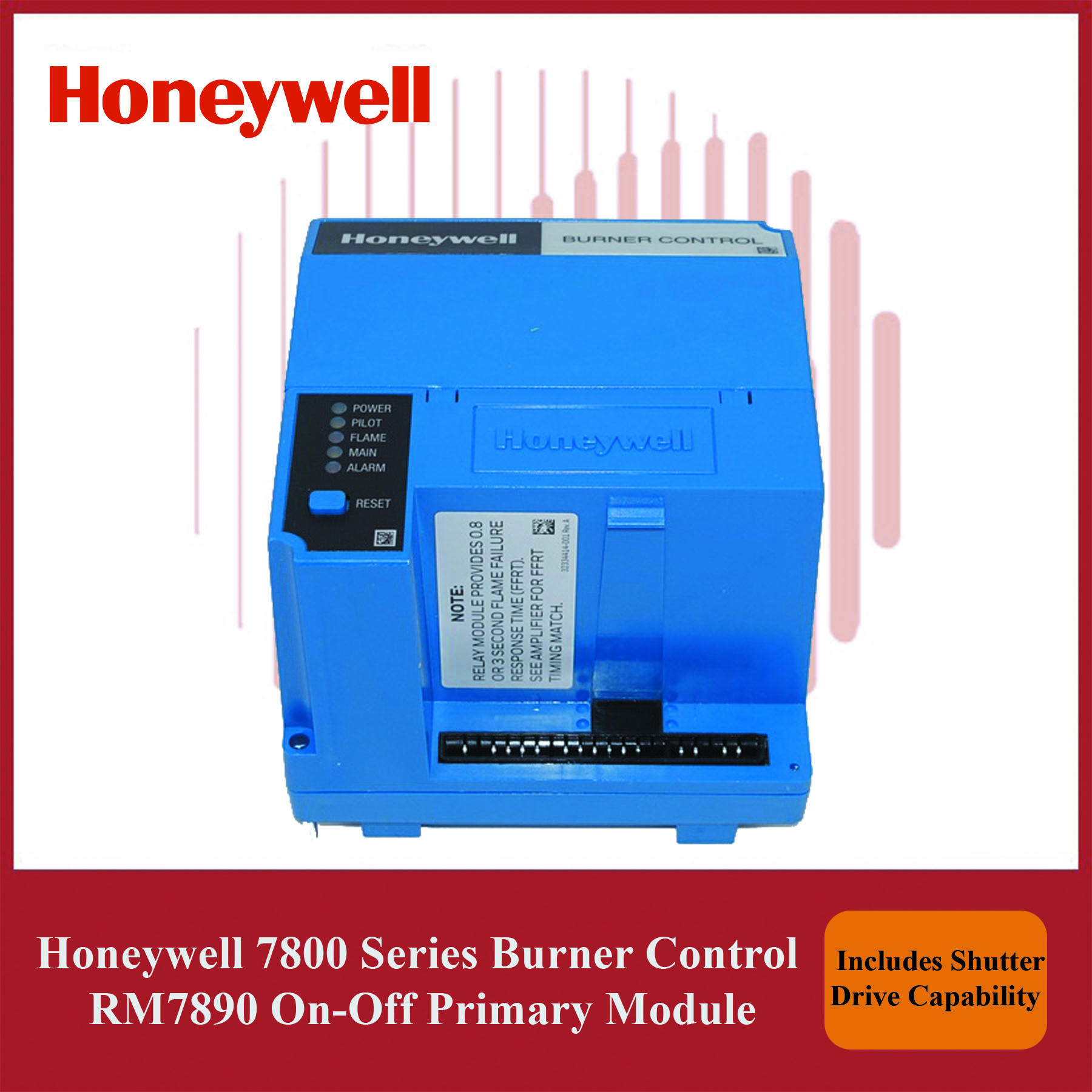

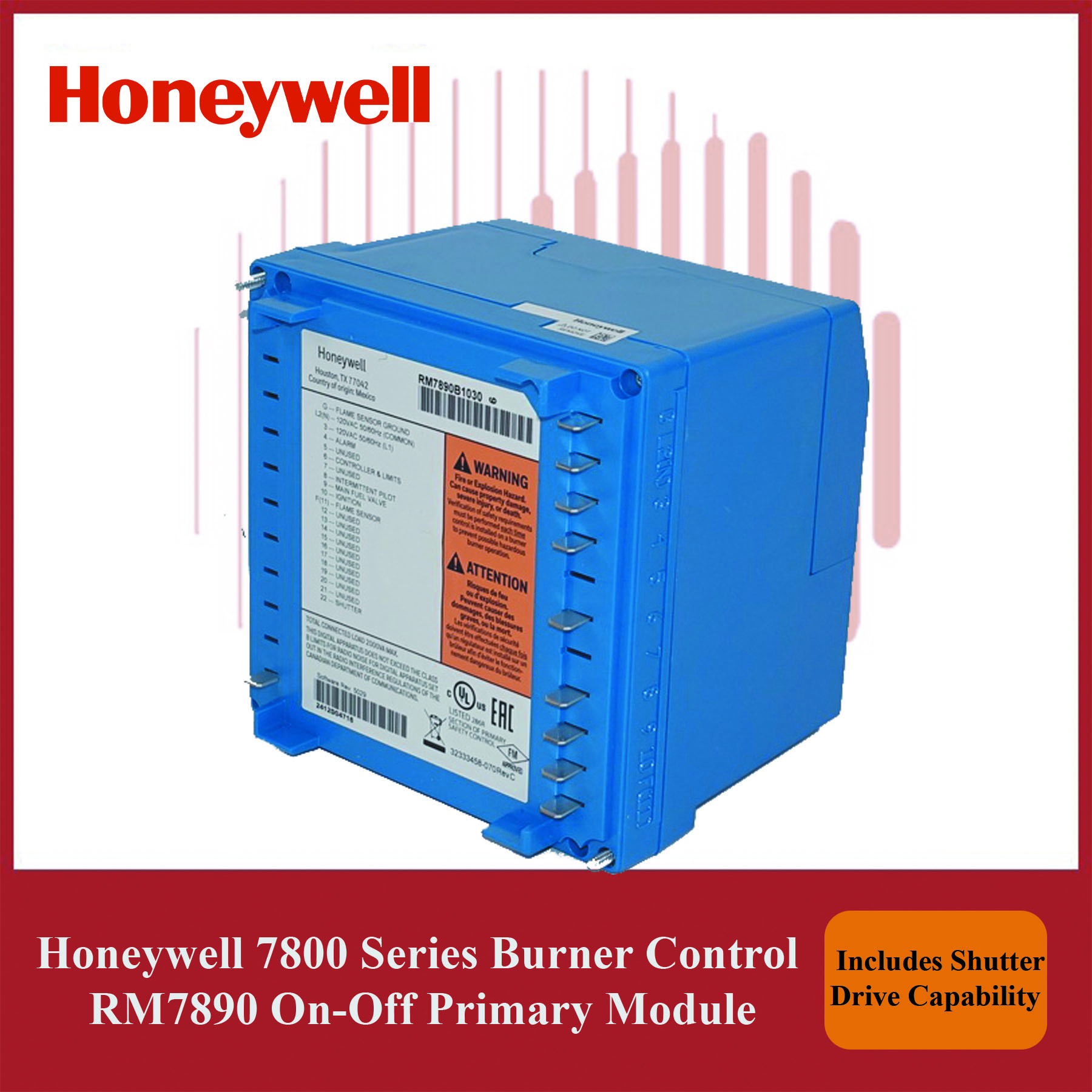

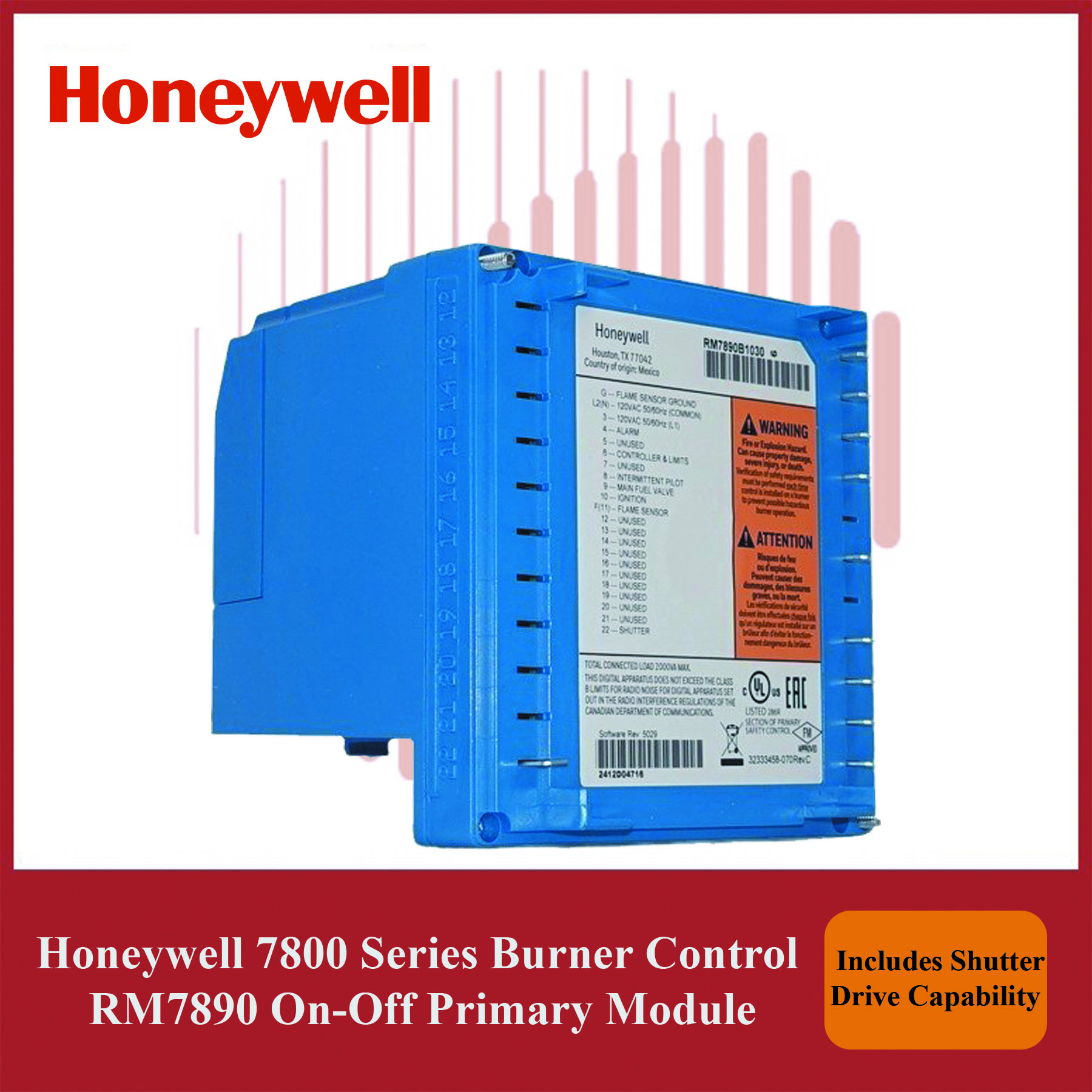

Honeywell 7800 Series RM7890D1004/U On-Off Primary Burner Safety Control
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period – Pilot: 15 or 30 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File
No. MP268; Guide No. MCCZ. - Approvals, CSA: Certified, File No. LR95329-3.
- Approvals, Factory Mutual: Report No. 1V9AO.AF
Original price was: $395.00.$325.00Current price is: $325.00.
(Save $70.00)
In stock
RM7890 On-Off Primary Controls 7800 Series Burner Controls
Microprocessor-based integrated primary burner control for
automatically fired gas, oil or combination fuel single burner
applications. Provides level of safety, functional capability and
features beyond conventional controls.
Description
Microprocessor-based integrated primary burner control for
automatically fired gas, oil or combination fuel single burner
applications. Provides level of safety, functional capability and
features beyond conventional controls.
• Functions include automatic burner sequencing, flame supervision,
system status indication, system or self diagnostics and
troubleshooting.
• Subbase and amplifier are required for operation.
• Options include PC interface, keyboard display module, DATA
CONTROLBUS™ MODULE, remote display module, first-out
expanded annunciator, and COMBUSTION SYSTEM MANAGER™
software.
• Five LEDs provide sequence information.
• Interchangeable plug-in flame amplifiers.
• Optional local or remote annunciation of operation and fault
information.
• Nonvolatile memory retains history files and sequencing status after
power loss.
• Optional remote reset capability.
• Optional report generation.
• Selectable relight or lockout on loss of flame.
Specifications
- Application On-Off Primary Control
- Flame Establishing Period - MainIntermittent
- Required ComponentsQ7800A, B Universal Wiring Subbases. R7847, R7848, R7849, R7851, R7852, R7861, or R7886 Flame Signal Amplifier.
- Frequency50 Hz; 60 Hz (±10%)
- Pilot Typeintermittent
- Vibration0.5 G environment
- Shipping and Storage Temperature Range-40°F to +140°F (-40°C to +60°C)
- Approximate, Dimensions: 5 in. wide x 5 in. high x 5 1/4 in. deep with Q7800A Subbase x 6 3/32 in. deep with Q7800B Subbase (127 mm wide x 127 mm high x 133 mm deep with Q7800A Subbase x 155 mm deep with Q7800B Subbase)
- Weight lb. (kg)1 lb 13 oz (0.8 kg)
- Approvals, Swiss REAcceptable
Additional information
| Weight | 0.8 kg |
|---|---|
| Dimensions | 12.7 × 12.7 × 13.335 cm |
