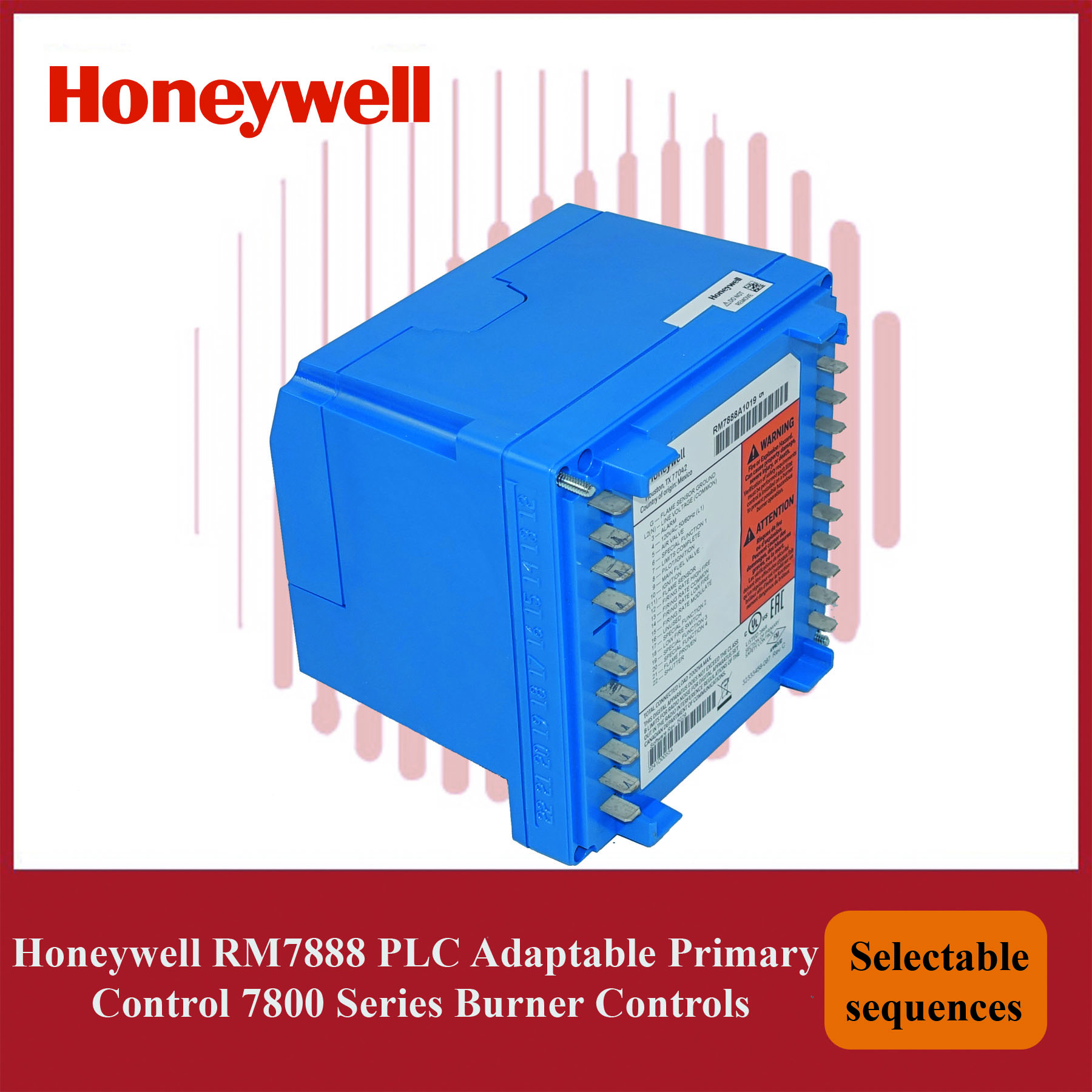

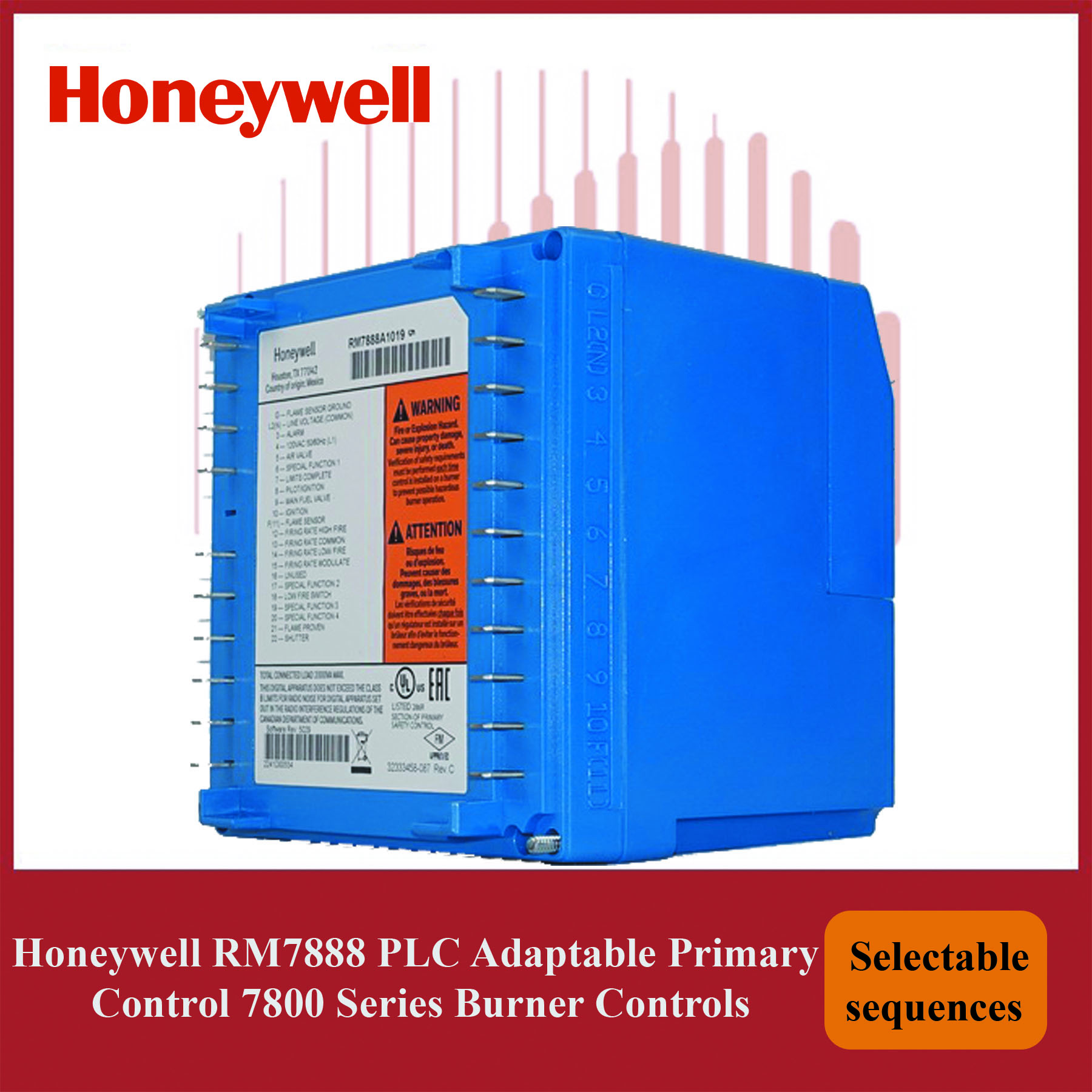

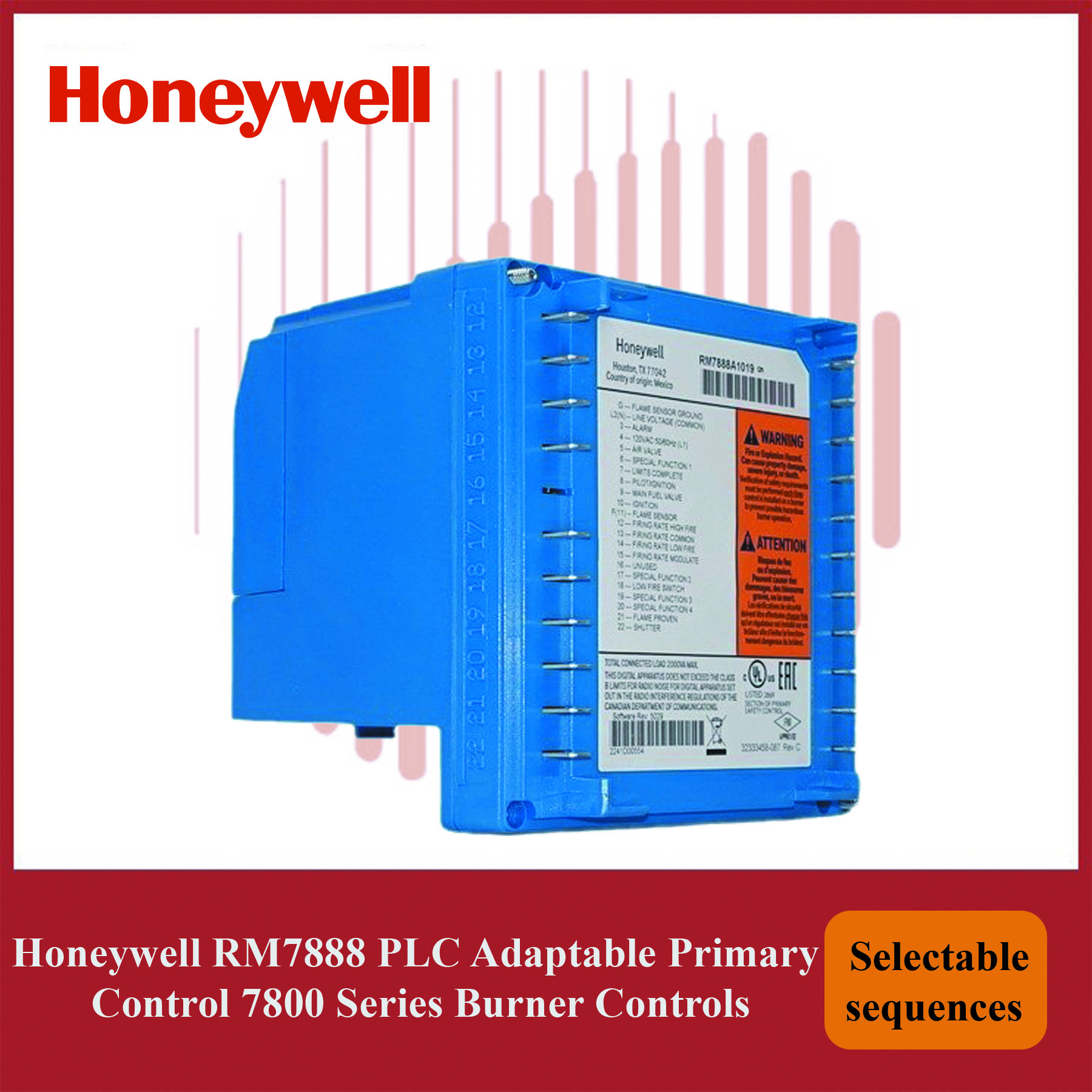

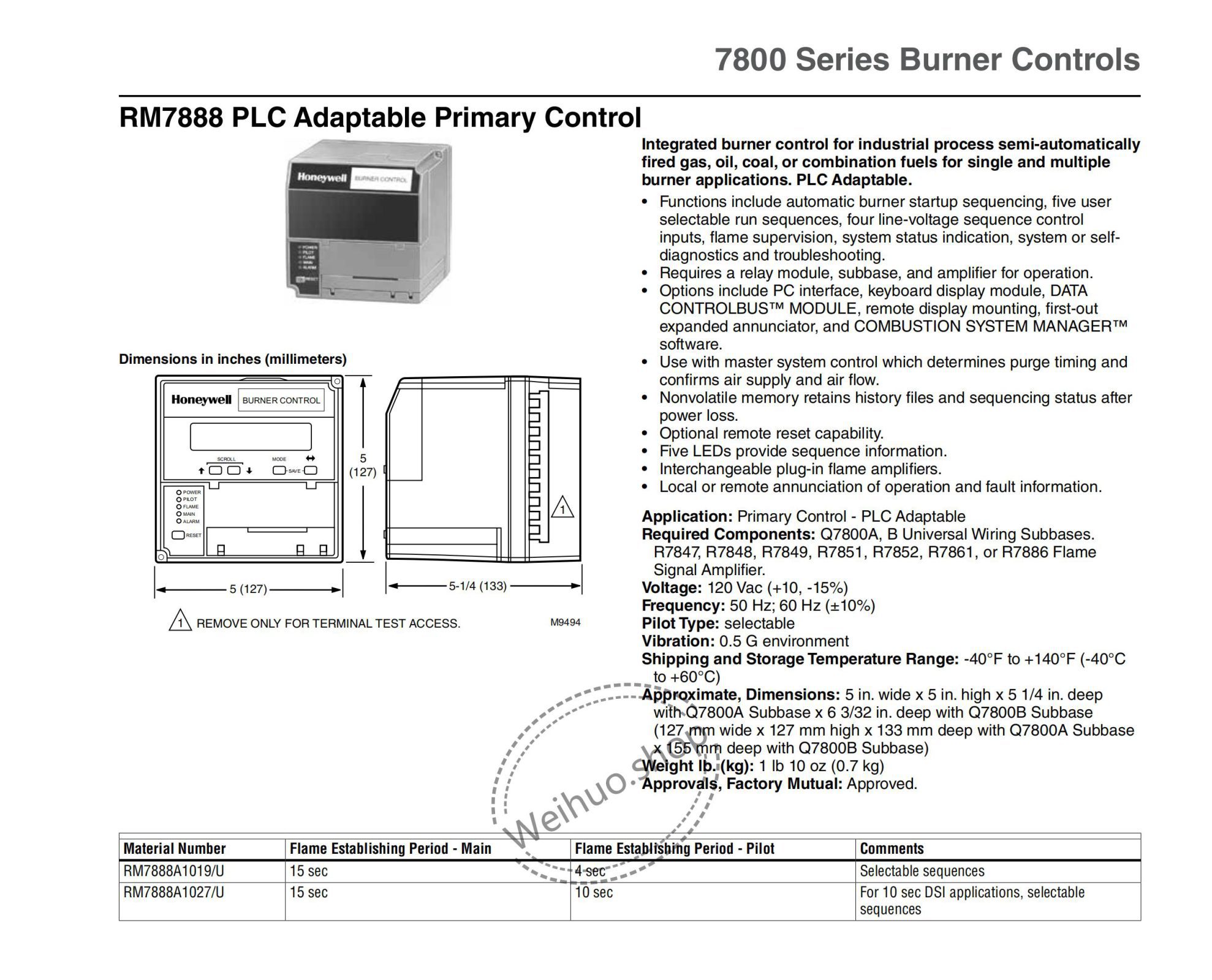

Honeywell 7800 Series Burner Controls RM7888A1027/U PLC Adaptable Primary Control

Integrated burner control for industrial process semi-automatically
fired gas, oil, coal, or combination fuels for single and multiple
burner applications. PLC Adaptable.
• Functions include automatic burner startup sequencing, five user
selectable run sequences, four line-voltage sequence control
inputs, flame supervision, system status indication, system or selfdiagnostics and troubleshooting.
• Requires a relay module, subbase, and amplifier for operation.
• Options include PC interface, keyboard display module, DATA
CONTROLBUS™ MODULE, remote display mounting, first-out
expanded annunciator, and COMBUSTION SYSTEM MANAGER™
software.
• Use with master system control which determines purge timing and
confirms air supply and air flow.
• Nonvolatile memory retains history files and sequencing status after
power loss.
• Optional remote reset capability.
• Five LEDs provide sequence information.
• Interchangeable plug-in flame amplifiers.
• Local or remote annunciation of operation and fault information.
