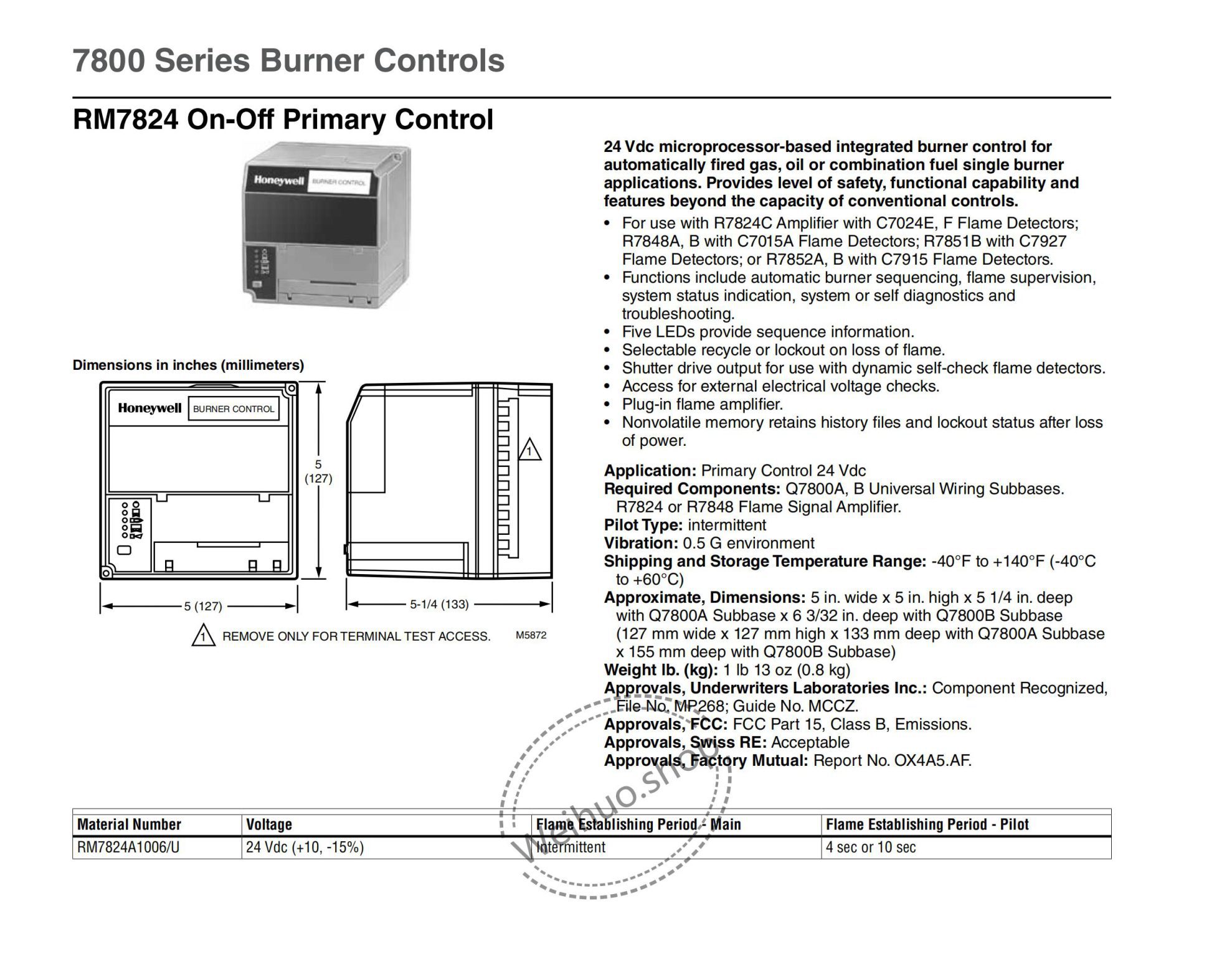

Honeywell 7800 Series Burner Controls – RM7824A1006/U On-Off Primary Control

24 Vdc microprocessor-based integrated burner control for
automatically fired gas, oil or combination fuel single burner
applications. Provides level of safety, functional capability and
features beyond the capacity of conventional controls.
• For use with R7824C Amplifier with C7024E, F Flame Detectors;
R7848A, B with C7015A Flame Detectors; R7851B with C7927
Flame Detectors; or R7852A, B with C7915 Flame Detectors.
• Functions include automatic burner sequencing, flame supervision,
system status indication, system or self diagnostics and
troubleshooting.
• Five LEDs provide sequence information.
• Selectable recycle or lockout on loss of flame.
• Shutter drive output for use with dynamic self-check flame detectors.
• Access for external electrical voltage checks.
• Plug-in flame amplifier.
• Non-volatile memory retains history files and lockout status after loss
of power.
