Description
Available in single sensor only, UVTron or IR. Options include
quick disconnect with two LEDs or factory installed cable.
-28%

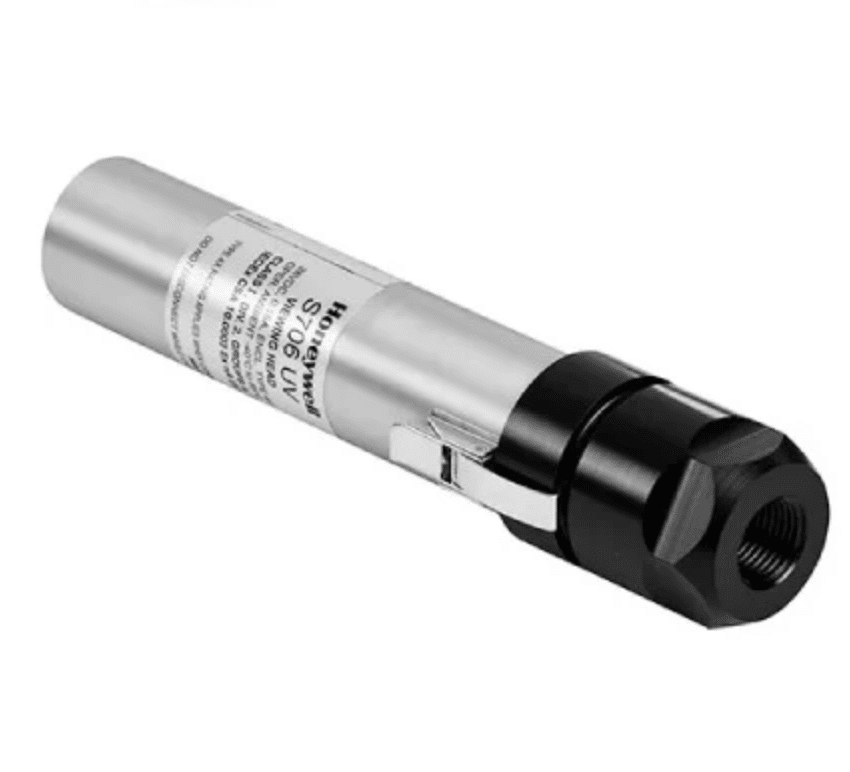

Honeywell 700 Series Viewing Heads Reliable Control Module- S706 Viewing Head
- Type: UV Compact viewing head with 15-foot cable
- Electrical Connections: Quick disconnect plug
- Shutter: Electronic
- UV Gain Adjustment: 1-9
- Dimensions: 2.0 in. wide x 9.7 in. deep x 2.0 in. high (51 mm wide x 246 mm deep x 51 mm high)
- Comments: Removable connector cover for diagnostic LED viewing during installation
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC
Original price was: $206.00.$148.00Current price is: $148.00.
(Save $58.00)
In stock
700 and 800 Series Viewing Heads
Viewing Head Sealing: IP 64 rated when the metallic connector ring is
thightened with pliers and a UV protection is provieded for the cable
by installing in conduit.
Specifications
- ApplicationFlame Detector for Oil Fired burners
- Mounting1/2" NPTF or 1" NPTF with 1/4" NPT Purge connection
- Electrical Ratings22 to 26Vdc from signal processor
- Sight Pipe (NPT)1/2 in.
- Purge Air Pipe (NPT)1/4 in.
- EnvironmentalViewing Head Sealing: IP 64 rated when the metallic connector ring is thightened with pliers and a UV protection is provieded for the cable by installing in conduit.
- Ambient Temperature-40 to 185°F (-40 to 85°C) CSA for CLASS I, DIV 2, GROUPS A, B, C, D, T4A -40 to 149°F (-40 to 65°C) IECEx CSA Ex nA IIC T4 Gc
- Approvals, Factory MutualApproved
- Environmental, Electrical, or Ingress Protection RatingIP64
- Required ComponentsOrder ASY785 (50foot) or ASY785-200 (200ft) for molded, shielded cable assemblies. ASY785 or ASY785-200 are recommended for new installations.
Additional information
| Dimensions | 5.1 × 24.6 × 5.1 cm |
|---|
