Honeywell Modutrol® IV M9494F1003/U – Firing Rate Control Motor for Burners
- Torque Rating (lb-in.): 300 lb-in
- Torque Rating (Nm): 34 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 600 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 68.0 Nm
- Internal Auxiliary Switch: 2
- Switch Ratings: At 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 60 seconds,, 160 degree stroke – 107 seconds
- Factory Stroke Setting: 90 degrees
Honeywell R8001 SLATE Combustion Control Module R8001S1071/U
- Description: SLATE UV Flame Amp with Ampli-Check Module- responds to ultraviolet signal from an ultraviolet type flame detector. Used with C7027 and C7035 detector series.
Honeywell R8001 SLATE Combustion Module – R8001L8001/U Control Unit
- Description: SLATE Limit Module- 12 limit block capability. Choose from high limit, low limit or dual track limit. Can monitor any sensor or pair sensors
Honeywell R8001 SLATE Combustion Module – R8001U3001/U Control Unit
- Description: SLATE Digital I/O Module- Digital input/output module with up to 14 opto inputs or 6 relays.
Honeywell R8001 SLATE Combustion Module – R8001V1031/U Control Unit
- Description: SLATE Rectification Flame Amp with Ampli-Check Module- responds a rectified signal from a rectification type flame detector. Used with the C7000X detector series
Honeywell R8001 SLATE Combustion Module R8001K1010/U – Advanced
- Description: SLATE 10 inch color touchscreen display

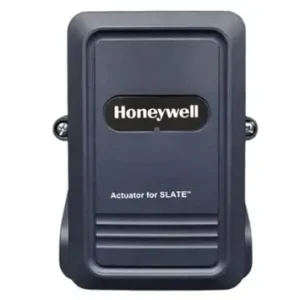

Honeywell R8001 SLATE Combustion Module R8001M1050 – Advanced System
- Description: SLATE Low Torque Actuator- 50 in/lb torque size in NEMA 1 enclosure to be used with SLATE Fuel Air Ratio Module (R8001C6001/U)
Honeywell R8001 SLATE Combustion System R8001A1001/U Module
- Description: SLATE Base Module-Provides power and external communications (Modbus/TCP, BACnet MSTP or IP, and web services), overall health, web based pages, event log and trend logs.
Honeywell R8001B2001/U SLATE Combustion System Module – R8001
- Description: SLATE Burner Control Module-Flame safeguard controls, valve proving, dual fuel capability, configurable safety, and safety relay
Honeywell R8001D4001/U – Reliable SLATE Combustion System Module
- Description: SLATE Analog I/O Module- Universal analog input/output module with configurability
Honeywell R8001F1041/U – Reliable SLATE Combustion System Module
- Description: SLATE Infrared Flame Amp with Ampli-Check Module- responds to an infrared signal from an infrared type flame detector to indicate the presence of flame. This flame amplifier is used with the C7915 detector series
Honeywell R8001M1150 Module for SLATE R8001 Combustion System
- Description: SLATE Low Torque Actuator- 150 in/lb torque size in NEMA 1 enclosure to be used with SLATE Fuel Air Ratio Module (R8001C6001/U)
Honeywell R8001M4050 SLATE Combustion System Module | R8001 Control
- Description: SLATE Low Torque Actuator- 50 in/lb torque size in NEMA 4 enclosure to be used with SLATE Fuel Air Ratio Module (R8001C6001/U)
Honeywell R8001S1051/U Module for SLATE R8001 Combustion System
- Description: SLATE UV Flame Amp with Shutter-Check Module-responds to ultraviolet signal from an ultraviolet type flame detector. Used with the C7061 detector series.
Honeywell R8001V1091/U SLATE Combustion System Module | R8001 Control
- Description: SLATE UV/Visible Flame Amp with Ampli-Check Module- responds to an ultraviolet/visible light signal from a UV/visible light type flame detector. Used with the C7927 detector series
Honeywell SLATE Combustion System Module 50096820-001/U – R8001 Series
- Description: SLATE Extension Cable. Allows for connection between one SLATE systems and subsequent SLATE modules on another DIN Rail for space savings in an electrical enclosure.

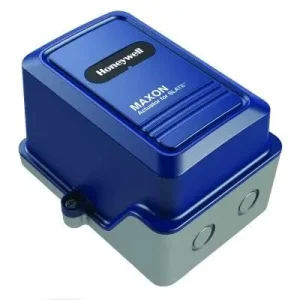

Honeywell SLATE Combustion System Module R8001M4150 – R8001 Series
- Description: SLATE Low Torque Actuator- 150 in/lb torque size in NEMA 4 enclosure to be used with SLATE Fuel Air Ratio Module (R8001C6001/U)
Honeywell SLATE R8001 Combustion Control Module (R8001C6001/U)
- Description: SLATE Fuel Air Ratio Control Module- monitors and controls the air fuel ratio for combustion applications
Honeywell SLATE R8001 Combustion Control Module (R8001N7001/U)
- Description: SLATE Annunciator Module- Provides first out annunciation
Honeywell Solid State Purple Peeper® C7012F1052/U Ultraviolet Flame Detector (Self-Checking)
- Frequency: 50 Hz; 60 Hz
- Weight: 14.5 lb (6.6 kg)
- NEMA Rating: Explosion Proof
- Electrical Connections: 6 NEC Class 1 Color-coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Ambient Temperature Range: -20°F to +175°F (-20°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. E34649, Guide No. ZTSZ
- Includes: Explosion-proof, two piece, violet, cast aluminum enclosure.
Honeywell Solid State Purple Peeper® Ultraviolet Flame Detector C7012C1042/U Module
- Frequency: 50 Hz; 60 Hz
- Weight: 14.5 lb (6.6 kg)
- NEMA Rating: Explosion Proof
- Electrical Connections: 4 NEC Class 1 Colour coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Ambient Temperature Range: 25°F to 175°F (-4°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. E34649, Guide No. ZTSZ
- Used With: Flame Amplifiers: R7247A, B; R7847A, B; R7257
Honeywell Solid State Purple Peeper®C7012E1112/U Ultraviolet Flame Detector (Self-Checking)
- Frequency: 50 Hz; 60 Hz
- Weight: 4.25 lb (1.9 kg)
- NEMA Rating: NEMA 4
- Electrical Connections: 6 NEC Class 1 Color-coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Ambient Temperature Range: -20°F to +175°F (-20°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ
- Includes: Cast case and cover
Honeywell Ultraviolet Flame Detector- C7061F2001/U Module Dynamic Self-Check
- NEMA Rating: Explosion Proof
- Lead Length: 96 in. (2438 mm)
- Electrical Connections: Color-coded leadwires
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Frequency: 57 Hz; 60 Hz
- Ambient Temperature Range: -40°F to +175°F (-40°C to +79°C)
Resideo Aquapump Control Module- PC3F1558IUF00 Hydronic Safety system
- Pump Casting: CAST IRON
- L1 in. (mm): 6.5 (165.5)
- L2 in. (mm): 5.5 (140)
- L3 in. (mm): 4.7 (118)
- L4 in. (mm): 6.6 (167)
- L5 in. (mm): 3.2 (80.2)
Resideo Aquapump Control Module- PC3F2699IUF00 Hydronic Safety system
- Pump Casting: CAST IRON
- L1 in. (mm): 6.5 (165.5)
- L2 in. (mm): 6.1 (155)
- L3 in. (mm): 6.5 (165.5)
- L4 in. (mm): 7.75 (197)
- L5 in. (mm): 3.2 (80.2)
Resideo Aquapump Control Module- PC3F4344IUF00 Hydronic Safety system
- Pump Casting: CAST IRON
- L1 in. (mm): 8.5 (216)
- L2 in. (mm): 6.1 (155)
- L3 in. (mm): 6.9 (174)
- L4 in. (mm): 8.9 (227)
- L5 in. (mm): 3.4 (87.3)
Resideo AT120B1028 Control Series – Reliable Transformer System
- Electrical Ratings (VA): 20 VA
- Electrical Ratings (Input Voltage): 120 Vac
- Notes: Metal end bells
