Honeywell (SLATE-N4-TOOL) SLATE Combustion Tool Module – R8001
- Description: SLATE-N4-TOOL for programming of the SLATE system, configuration of the safety modules and creating display graphics
Honeywell 32008001-002/U Module for SLATE R8001 Combustion System
- Description: SLATE connector bag assembly that contains connectors for sub-base for remote flame amplifier module or remote reset button connections. This assembly also contains the 2 pin-power connector for the SLATE display.

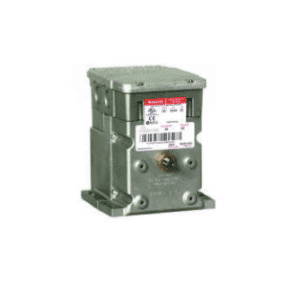

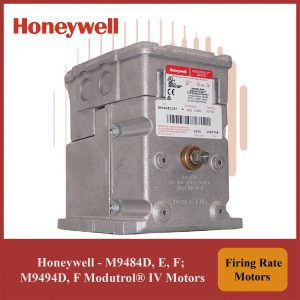

Honeywell Firing Rate Motor M9484E1017/U – Modutrol® IV Series
- Torque Rating (lb-in.): 150 lb-in.
- Torque Rating (Nm): 17 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 300 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 34.0 Nm
- Internal Auxiliary Switch: 1
- Auxiliary Switch Setting: 1 degrees
- Auxiliary Switch Ratings: 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 30 seconds, 160 degree stroke – 60 seconds
- Factory Stroke Setting: 90 degrees
Honeywell Firing Rate Motor M9484F1031/U Modutrol® IV – Precision Control
- Torque Rating (lb-in.): 150 lb-in.
- Torque Rating (Nm): 17 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 300 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 34.0 Nm
- Internal Auxiliary Switch: 2
- Auxiliary Switch Setting: 7 and 80 degrees
- Auxiliary Switch Ratings: 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 30 seconds, 160 degree stroke – 60 seconds
- Factory Stroke Setting: 90 degrees

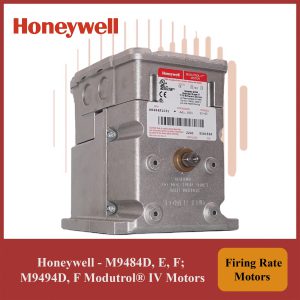

Honeywell Firing Rate Motors- M9484D1010/U Modutrol® IV Motors
- Torque Rating (lb-in.): 150 lb-in.
- Torque Rating (Nm): 17 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 300 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 34.0 Nm
- Switch Ratings: At 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact;                        At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 30 seconds, 160 degree stroke – 60 seconds
- Factory Stroke Setting: 160 degrees

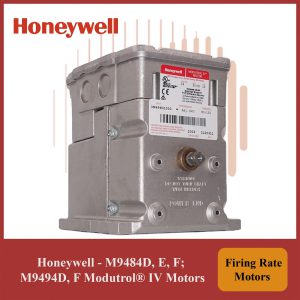

Honeywell M9484E1009/U Modutrol® IV Motor – Firing Rate Control Motor
- Torque Rating (lb-in.): 75 lb-in.
- Torque Rating (Nm): 8.5 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 150 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 17.0 Nm
- Internal Auxiliary Switch: 1
- Auxiliary Switch Setting: 11 degrees
- Auxiliary Switch Ratings: 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 15 seconds, 160 degree stroke – 30 seconds
- Factory Stroke Setting: 90 degrees
Honeywell M9484E1033/U Modutrol® IV Firing Rate Control Motor
- Torque Rating (lb-in.): 150 lb-in.
- Torque Rating (Nm): 17 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 300 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 34.0 Nm
- Internal Auxiliary Switch: 1
- Auxiliary Switch Setting: 7 degrees
- Auxiliary Switch Ratings: 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 30 seconds, 160 degree stroke – 60 seconds
- Factory Stroke Setting: 90 degrees
Honeywell M9484F1007/U Modutrol® IV Motor | Firing Rate Control Actuator
- Torque Rating (lb-in.): 150 lb-in.
- Torque Rating (Nm): 17 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 300 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 34.0 Nm
- Internal Auxiliary Switch: 2
- Auxiliary Switch Setting: 7 and 80 degrees
- Auxiliary Switch Ratings: 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 30 seconds, 160 degree stroke – 60 seconds
- Factory Stroke Setting: 90 degrees
Honeywell M9484F1049/U – Reliable Modutrol® IV Firing Rate Motor
- Torque Rating (lb-in.): 150 lb-in.
- Torque Rating (Nm): 17 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 300 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 34.0 Nm
- Internal Auxiliary Switch: 2
- Auxiliary Switch Setting: 35 and 120 degrees
- Auxiliary Switch Ratings: 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 30 seconds, 160 degree stroke – 60 seconds
- Factory Stroke Setting: 160 degrees
Honeywell M9494D1000/U Firing Rate Motor – Durable Modutrol® IV Series Motor
- Torque Rating (lb-in.): 300 lb-in
- Torque Rating (Nm): 34 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 600 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 68.0 Nm
- Switch Ratings: At 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 60 seconds,, 160 degree stroke – 120 seconds
- Factory Stroke Setting: 90 degrees
Honeywell Modutrol® IV M9484F1023/U – Firing Rate Control Motor for Burners
- Torque Rating (lb-in.): 75 lb-in. .
- Torque Rating (Nm): 8.5 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 150 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 17.0 Nm
- Internal Auxiliary Switch: 2
- Switch Ratings: At 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 15 seconds, 160 degree stroke – 30 seconds
- Factory Stroke Setting: 90 degrees
Honeywell Modutrol® IV M9484F1057/U Firing Rate Motor – Accurate Position Control
- Torque Rating (lb-in.): 150 lb-in.
- Torque Rating (Nm): 17 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 300 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 34.0 Nm
- Internal Auxiliary Switch: 2
- Switch Ratings: At 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 30 seconds, 160 degree stroke – 53 seconds
Honeywell Modutrol® IV M9494F1003/U – Firing Rate Control Motor for Burners
- Torque Rating (lb-in.): 300 lb-in
- Torque Rating (Nm): 34 Nm
- Additional Torque Ratings (lb-in.): Breakaway – 600 lb-in.
- Additional Torque Ratings (Nm): Breakaway – 68.0 Nm
- Internal Auxiliary Switch: 2
- Switch Ratings: At 120 Vac – 7.2 AFL, 43.2 ALR, 40 VA pilot duty opposite contact; At 240 Vac – 3.6 AFL, 21.6 ALR, 40 VA pilot duty opposite contact
- Timing: 90 degree stroke – 60 seconds,, 160 degree stroke – 107 seconds
- Factory Stroke Setting: 90 degrees

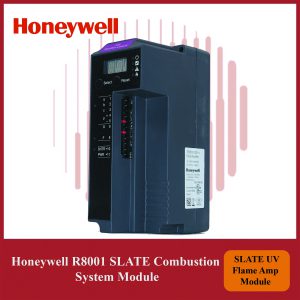

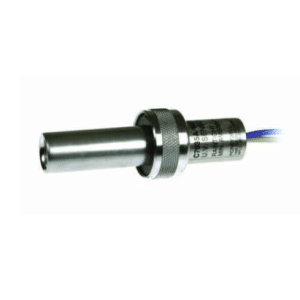

Honeywell R8001 SLATE Combustion Control Module R8001S1071/U

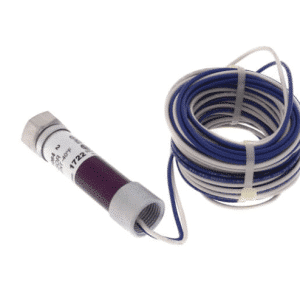

- Description: SLATE UV Flame Amp with Ampli-Check Module- responds to ultraviolet signal from an ultraviolet type flame detector. Used with C7027 and C7035 detector series.
Honeywell R8001 SLATE Combustion Module – R8001L8001/U Control Unit
- Description: SLATE Limit Module- 12 limit block capability. Choose from high limit, low limit or dual track limit. Can monitor any sensor or pair sensors
Honeywell R8001 SLATE Combustion Module – R8001U3001/U Control Unit
- Description: SLATE Digital I/O Module- Digital input/output module with up to 14 opto inputs or 6 relays.
Honeywell R8001 SLATE Combustion Module – R8001V1031/U Control Unit

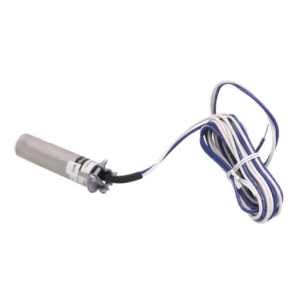

- Description: SLATE Rectification Flame Amp with Ampli-Check Module- responds a rectified signal from a rectification type flame detector. Used with the C7000X detector series
Honeywell R8001 SLATE Combustion Module R8001K1010/U – Advanced
- Description: SLATE 10 inch color touchscreen display

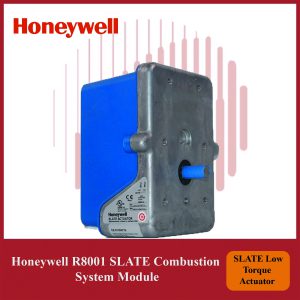

Honeywell R8001 SLATE Combustion Module R8001M1050 – Advanced System

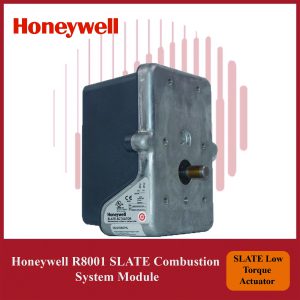

- Description: SLATE Low Torque Actuator- 50 in/lb torque size in NEMA 1 enclosure to be used with SLATE Fuel Air Ratio Module (R8001C6001/U)
Honeywell R8001 SLATE Combustion System R8001A1001/U Module

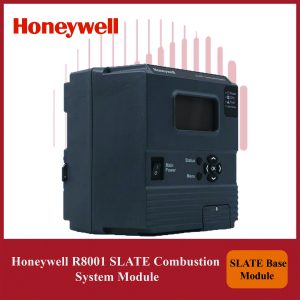

- Description: SLATE Base Module-Provides power and external communications (Modbus/TCP, BACnet MSTP or IP, and web services), overall health, web based pages, event log and trend logs.

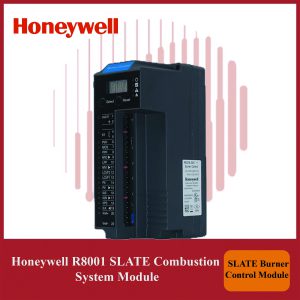

Honeywell R8001B2001/U SLATE Combustion System Module – R8001
- Description: SLATE Burner Control Module-Flame safeguard controls, valve proving, dual fuel capability, configurable safety, and safety relay
Honeywell R8001D4001/U – Reliable SLATE Combustion System Module
- Description: SLATE Analog I/O Module- Universal analog input/output module with configurability
Honeywell R8001F1041/U – Reliable SLATE Combustion System Module
- Description: SLATE Infrared Flame Amp with Ampli-Check Module- responds to an infrared signal from an infrared type flame detector to indicate the presence of flame. This flame amplifier is used with the C7915 detector series
Honeywell R8001M1150 Module for SLATE R8001 Combustion System

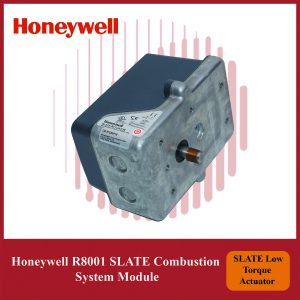

- Description: SLATE Low Torque Actuator- 150 in/lb torque size in NEMA 1 enclosure to be used with SLATE Fuel Air Ratio Module (R8001C6001/U)
Honeywell R8001M4050 SLATE Combustion System Module | R8001 Control
- Description: SLATE Low Torque Actuator- 50 in/lb torque size in NEMA 4 enclosure to be used with SLATE Fuel Air Ratio Module (R8001C6001/U)

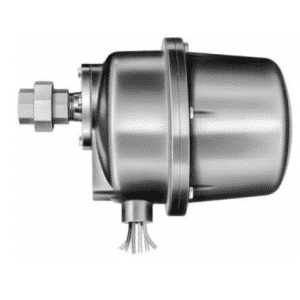

Honeywell R8001S1051/U Module for SLATE R8001 Combustion System
- Description: SLATE UV Flame Amp with Shutter-Check Module-responds to ultraviolet signal from an ultraviolet type flame detector. Used with the C7061 detector series.
Honeywell R8001V1091/U SLATE Combustion System Module | R8001 Control
- Description: SLATE UV/Visible Flame Amp with Ampli-Check Module- responds to an ultraviolet/visible light signal from a UV/visible light type flame detector. Used with the C7927 detector series

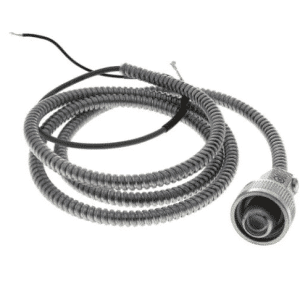

Honeywell SLATE Combustion System Module 50096820-001/U – R8001 Series
- Description: SLATE Extension Cable. Allows for connection between one SLATE systems and subsequent SLATE modules on another DIN Rail for space savings in an electrical enclosure.
