Honeywell 700 Series Viewing Heads Reliable Control Module- S706 Viewing Head
- Type: UV Compact viewing head with 15-foot cable
- Electrical Connections: Quick disconnect plug
- Shutter: Electronic
- UV Gain Adjustment: 1-9
- Dimensions: 2.0 in. wide x 9.7 in. deep x 2.0 in. high (51 mm wide x 246 mm deep x 51 mm high)
- Comments: Removable connector cover for diagnostic LED viewing during installation
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC
Honeywell 700 Series Viewing Heads Reliable Control Module- S706PF Viewing Head
- Type: UV Compact viewing head with 10-foot pigtail
- Electrical Connections: Factory installed cable
- Shutter: Electronic
- UV Gain Adjustment: 1-9
- Dimensions: 2.0 in. wide x 9.7 in. deep x 2.0 in. high (51 mm wide x 246 mm deep x 51 mm high)
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC
Honeywell 700 Series Viewing Heads Reliable Module- S702 Viewing Head
- Type: IR Compact viewing head with 15-foot cable
- Electrical Connections: Quick disconnect plug
- Shutter: Electronic
- IR Gain Adjustment: 1-9
- Dimensions: 2.0 in. wide x 9.7 in. deep x 2.0 in. high (51 mm wide x 246 mm deep x 51 mm high)
- Comments: Removable connector cover for diagnostic LED viewing during installation.
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC
Honeywell 700 Series Viewing Heads Reliable Module- S702PF Viewing Head
- Type: IR Compact viewing head with 10-foot pigtail
- Electrical Connections: Factory installed cable
- Shutter: Electronic
- IR Gain Adjustment: 1-9
- Dimensions: 2.0 in. wide x 9.7 in. deep x 2.0 in. high (51 mm wide x 246 mm deep x 51 mm high)
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC

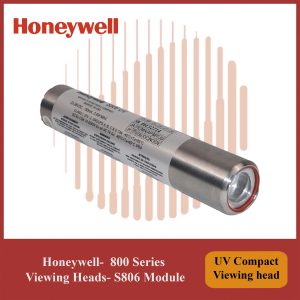

Honeywell 800 Series Viewing Heads Reliable Control Module- S806 Viewing Head
- Type: UV Compact viewing head with 15-foot cable
- Electrical Connections: Quick disconnect plug
- Shutter: Electronic
- UV Gain Adjustment: 1-9
- Dimensions: 1.8 in. wide x 9.2 in. deep x 1.8 in. high (46 mm wide x 234 mm deep x 46 mm high)
- Comments: Removable connector cover for diagnostic LED viewing during installation
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC
Honeywell 800 Series Viewing Heads Reliable Module- S802 Viewing Head
- Type: IR Compact viewing head with 15-foot cable
- Electrical Connections: Quick disconnect plug
- Shutter: Electronic
- IR Gain Adjustment: 1-9
- Dimensions: 1.8 in. wide x 9.2 in. deep x 1.8 in. high (46 mm wide x 234 mm deep x 46 mm high)
- Comments: Removable connector cover for diagnostic LED viewing during installation
- Used With: Use with 700 AC SP or 700DC SP or P53xAC/DC
Honeywell Control Module U2-1010S-PF-050 – Integrated Viewing Head & Processor
Combination DC signal processor and triple UV/IR/UVss Viewing head:
- Description: Combination DC signal processor and triple UV/IR/UVss Viewing head with 50-ft (15m) pigtail.
- Status Monitoring: LED for each sensor, flame relay, and self check.
- Mounting: 1" NPT process connection
- Connection Type: pigtail, 50-ft (15m)
- Required Components: PT adapter and purge air coupler sold separately.
Honeywell Control Module U2-1012S-PF – Compact Viewing Head & Processor Unit
Combination DC signal processor and IR Viewing head:
- Description: Combination DC signal processor and IR Viewing head with 10-ft pigtail. Pipe fitting connection.
- Status Monitoring: LED for each sensor, flame relay, and self check.
- Mounting: 1" NPT process connection
- Connection Type: pigtail, 10-ft (3m)
- Required Components:Â PT adapter and purge air coupler sold separately
Honeywell Control Module- U2-1010S All-in-One Viewing Head and Processor
Combination DC signal processor and triple UV/IR/UVss Viewing head:
- Description: Combination DC signal processor and triple UV/IR/UVss Viewing head.
- Status Monitoring: LED for each sensor, flame relay, and self check.
- Mounting: 1" NPT process connection
- Connection Type: 12 pin connector
- Required Components: Cable and connector, PT adapter and purge air coupler sold separately
Honeywell S55xBE Series Viewing Heads Reliable Control Module- S556BE Viewing Head
Flame Detector for Gas multiple Burners:
- Type: UV/IR Viewing Head with Digital Display
- Electrical Connections: Quick disconnect plug
- UV Gain Adjustment: 0-99
- Digital Displays: Yes (1)
- Comments: 2 digit display for UV
- Required Components: Use with molded cable ASY55XBE, ASY55XBE-100, ASY55XBE-200 or ASY55XBE-300. P522 or P532 signal processor.
Honeywell S55xBE Series Viewing Heads Reliable Module- S550BE Viewing Head
Flame Detector for All fuels multiple burners:
- Type: UV/IR Viewing Head
- Electrical Connections: Quick disconnect plug
- Shutter: Electronic of IR only
- UV Gain Adjustment: 0-99
- IR Gain Adjustment: 0-699
- Digital Displays: Yes (2)
- Comments: 2 digit display for UV and IR
- Required Components: Use with molded cable ASY55XBE, ASY55XBE-100, ASY55XBE-200 or ASY55XBE-300. P522 or P532 signal processor.
Honeywell S55xBE Series Viewing Heads Reliable Module- S550BE-PF Viewing Head
Flame Detector for All fuels multiple burners:
- Type: UV/IR Viewing Head
- Electrical Connections: 10 foot pigtail
- Shutter: Electronic of IR only
- UV Gain Adjustment: 0-99
- IR Gain Adjustment: 0-699
- Digital Displays: Yes (2)
- Comments: 2 digit display for UV and IR
- Required Components: Factory installed 10' cable. P522 or P532 signal processor.
Honeywell S55xBE Series Viewing Heads Reliable Module- S552BE Viewing Head
Flame Detector for All fuels multiple burners:
- Type: IR Viewing Head
- Electrical Connections: Quick disconnect plug
- Shutter: Electronic
- IR Gain Adjustment: 0-699
- Digital Displays: Yes (1)
- Comments: 2 digit display for IR
- Required Components: Use with molded cable ASY55XBE, ASY55XBE-100, ASY55XBE-200 or ASY55XBE-300. P522 or P532 signal processor.
Honeywell S55xBE Series Viewing Heads Reliable Module- S552BE-PF Viewing Head
Flame Detector for All fuels multiple burners:
- Type: IR Viewing Head
- Electrical Connections: 10 foot pigtail
- Shutter: Electronic
- IR Gain Adjustment: 0-699
- Digital Displays: Yes (1)
- Comments: 2 digit display for IR
- Required Components: P522 or P532 signal processor.
Honeywell S55xBE Series Viewing Heads Reliable Module- S556BE-PF Viewing Head
Flame Detector for Gas multiple Burners:
- Type: UV/IR Viewing Head with Digital Display
- Electrical Connections: 10 foot pigtail
- UV Gain Adjustment: 0-99
- Digital Displays: Yes (1)
- Comments: 2 digit display for UV
- Required Components: P522 or P532 signal processor.

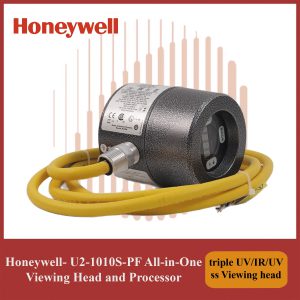

Honeywell U2-1010S-PF Control Module – All-in-One Viewing Head and Processor
Combination DC signal processor and triple UV/IR/UVss Viewing head:
- Description: Combination DC signal processor and triple UV/IR/UVss Viewing head with 10-ft pigtail.
- Status Monitoring: LED for each sensor, flame relay, and self check.
- Mounting: 1" NPT process connection
- Connection Type: pigtail, 10-ft (3m)
- Required Components: PT adapter and purge air coupler sold separately.
Honeywell U2-1010S-PF-100 All-in-One Viewing Head and Processor Control Module
Combination DC signal processor and triple UV/IR/UVss Viewing head:
- Description: Combination DC signal processor and triple UV/IR/UVss                                                  Viewing head with 100-ft (30m) pigtail.
- Status Monitoring: LED for each sensor, flame relay, and self check.
- Mounting: 1" NPT process connection
- Connection Type: pigtail, 100-ft (30m)
- Required Components: PT adapter and purge air coupler sold separately.
Honeywell U2-1012S All-in-One Viewing Head | Integrated Processor Control Module
Combination DC signal processor and IR Viewing head:
- Description: Combination DC signal processor and IR Viewing head.
- Status Monitoring: LED for each sensor, flame relay, and self check.
- Mounting: 1" NPT process connection
- Connection Type: 12 pin connector
- Required Components: Cable and connector, PT adapter and purge air coupler sold separately
Honeywell U2-1016S Module – All-in-One Viewing Head and Processing System
Combination DC signal processor and UV Viewing head:
- Description: Combination DC signal processor and UV Viewing head.
- Status Monitoring: LED for each sensor, flame relay, and self check.
- Mounting: 1" NPT process connection
- Connection Type: 12 pin connector
- Required Components: Cable and connector, PT adapter and purge air coupler sold separately
Honeywell U2-1016S-PF – Reliable All-in-One Viewing Head and Processor Module
Combination DC signal processor and UV Viewing head:
- Description: Combination DC signal processor and UV Viewing head With 10-ft pigtail.                                    Pipe fitting connection.
- Status Monitoring: LED for each sensor, flame relay, and self check.
- Mounting: 1" NPT process connection
- Connection Type: pigtail, 10-ft (3m)
- Required Components: PT adapter and purge air coupler sold separately
Honeywell U2-1018S Control Module – Smart Integrated Viewing & Processing Unit
Combination DC signal processor and dual UV/IR Viewing head:
- Description: Combination DC signal processor and dual UV/IR Viewing head.
- Status Monitoring: LED for each sensor, flame relay, and self check.
- Mounting: 1" NPT process connection
- Connection Type: 12 pin connector
- Required Components: Cable and connector, PT adapter and purge air coupler sold separately
Honeywell U2-1018S-PF All-in-One Module – Efficient Viewing Head and Processor Solution
Combination DC signal processor and dual UV/IR Viewing head:
- Description: Combination DC signal processor and dual UV/IR Viewing head with 10-ft pigtail. Pipe fitting connection.
- Status Monitoring: LED for each sensor, flame relay, and self check.
- Mounting: 1" NPT process connection
- Connection Type: pigtail, 10-ft (3m)
- Required Components: PT adapter and purge air coupler sold separately
