Honeywell L91A1052/U Proportional Pressuretrol® and Limit Controller Module
- Operating Range (psi): 5 to 150 psi; 225 psi - Maximum Sustained
- Operating Range (kPa): 34 to 1034 kPa; 1151 kPa - Maximum Sustained
- Differential Pressure Range (psi): 5 psi
- Differential Pressure Range (kPa): 34 kPa
- Mounting: optional surface mount through back of case
- Sensor Element: Brass bellows
- Approximate, Dimensions: 5 3/4 in. high x 4 1/2 in. wide x 2 3/4 in. deep                                                             (146 mm high x 114 mm wide x 70 mm deep)
- Modulation Output: Single potentiometer, 140 ohms
Honeywell L91A1136/U- Proportional Pressure and Limit Control Module
- Operating Range (psi): 10 to 300 psi; 325 psi - Maximum Sustained
- Operating Range (kPa): 69 to 2068 kPa; 2241 kPa - Maximum Sustained
- Differential Pressure Range (psi): 12 psi
- Differential Pressure Range (kPa): 83 kPa
- Mounting: optional surface mount through back of case
- Sensor Element: Phos-bronze bellows
- Approximate, Dimensions: 6 1/16 in. high x 4 1/2 in. wide x 2 3/4 in. deep                                                            (154 mm high x 114 mm wide x 70 mm deep)
- Modulation Output: Single potentiometer, 140 ohms
Honeywell L91B1035/U Proportional Pressuretrol® | Pressure & Limit Controller Module
- Operating Range (psi): 0 to 15 psi; 25 psi - Maximum Sustained
- Operating Range (kPa): 0 to 103 kPa; 172 kPa - Maximum Sustained
- Differential Pressure Range (psi): 1.5 to 12 psi
- Differential Pressure Range (kPa): 10 to 83 kPa
- Mounting: optional surface mount through back of case
- Sensor Element: Brass bellows
- Approximate, Dimensions: 6 7/8 in. high x 4 1/2 in. wide x 2 7/8 in. deep                                                            (175 mm high x 114 mm wide x 73 mm deep)
- Modulation Output: Single potentiometer, 140 ohms
Honeywell L91B1068/U Pressuretrol® Controller Module – Proportional Pressure & Limit
- Operating Range (psi): 10 to 300 psi; 325 psi - Maximum Sustained
- Operating Range (kPa): 69 to 2068 kPa; 2241 kPa - Maximum Sustained
- Differential Pressure Range (psi): 28 to 110 psi
- Differential Pressure Range (kPa): 193 to 758 kPa
- Mounting: optional surface mount through back of case
- Sensor Element: Phos-bronze bellows
- Approximate, Dimensions: 6 1/16 in. high x 4 1/2 in. wide x 2 3/4 in. deep                                                            (154 mm high x 114 mm wide x 70 mm deep)
- Modulation Output: Single potentiometer, 140 ohms
Honeywell L91B1100/U – Reliable Proportional Pressuretrol® and Limit Controller
- Operating Range (psi): 5 to 150 psi; 225 psi - Maximum Sustained
- Operating Range (kPa): 0 - 1 MPa; 1151 kPa - Maximum Sustained
- Differential Pressure Range (psi): 5 to 23 psi
- Differential Pressure Range (kPa): 35 to 160 kPa
- Mounting: 1/4 in BSP-TR thread Mounting
- Sensor Element: Brass bellows
- Approximate, Dimensions: 5 3/4 in. high x 4 1/2 in. wide x 2 3/4 in. deep                                                             (146 mm high x 114 mm wide x 70 mm deep)
- Modulation Output: Single potentiometer, 135 ohms
Honeywell L91B1241/U Controller Module – Durable Proportional Pressure & Limit Control
- Operating Range (psi): 10 to 300 psi; 325 psi - Maximum Sustained
- Operating Range (kPa): 69 to 2068 kPa; 2241 kPa - Maximum Sustained
- Differential Pressure Range (psi): 12 to 48 psi
- Differential Pressure Range (kPa): 85 to 330 kPa
- Mounting: optional surface mount through back of case
- Sensor Element: Phos-bronze bellows
- Approximate, Dimensions: 6 1/16 in. high x 4 1/2 in. wide x 2 3/4 in. deep                                                           (154 mm high x 114 mm wide x 70 mm deep)
- Modulation Output: Single potentiometer, 140 ohms
Honeywell L91D1015/U Proportional Pressuretrol® and Limit Controller Module
- Operating Range (psi): 0 to 15 psi; 25 psi - Maximum Sustained
- Operating Range (kPa): 0 to 103 kPa; 172 kPa - Maximum Sustained
- Differential Pressure Range (psi): 1.5 to 12 psi
- Differential Pressure Range (kPa): 10 to 83 kPa
- Mounting: optional surface mount through back of case
- Sensor Element: Brass bellows
- Approximate, Dimensions: 6 7/8 in. high x 4 1/2 in. wide x 2 7/8 in. deep                                                            (175 mm high x 114 mm wide x 73 mm deep)
- Modulation Output: Dual potentiometer, 140 ohms
Honeywell Module L91A1078/U – Proportional Pressuretrol® & Limit Controller
- Operating Range (psi): 10 to 300 psi; 325 psi - Maximum Sustained
- Operating Range (kPa): 69 to 2068 kPa; 2241 kPa - Maximum Sustained
- Differential Pressure Range (psi): 12 psi
- Differential Pressure Range (kPa): 83 kPa
- Mounting: optional surface mount through back of case
- Sensor Element: Phos-bronze bellows
- Approximate, Dimensions: 6 1/16 in. high x 4 1/2 in. wide x 2 3/4 in. deep                                                            (154 mm high x 114 mm wide x 70 mm deep)
- Modulation Output: Single potentiometer, 140 ohms
Honeywell Module L91D1031/U – Proportional Pressuretrol® & Limit Controller
- Operating Range (psi): 5 to 150 psi; 225 psi - Maximum Sustained
- Operating Range (kPa): 34 to 1034 kPa; 1151 kPa - Maximum Sustained
- Differential Pressure Range (psi): 11 to 52 psi
- Differential Pressure Range (kPa): 76 to 359 kPa
- Mounting: optional surface mount through back of case
- Sensor Element: Brass bellows
- Approximate, Dimensions: 5 3/4 in. high x 4 1/2 in. wide x 2 3/4 in. deep                                                            (146 mm high x 114 mm wide x 70 mm deep)
- Modulation Output: Dual potentiometer, 140 ohms
Honeywell Module- L91A1037/U Proportional Pressuretrol® and Limit Controllers
- Operating Range (psi): 0 to 15 psi; 25 psi - Maximum Sustained
- Operating Range (kPa): 0 to 103 kPa; 172 kPa - Maximum Sustained
- Differential Pressure Range (psi): 0.5 psi
- Differential Pressure Range (kPa): 3.4 kPa
- Mounting: optional surface mount through back of case
- Sensor Element: Brass bellows
- Approximate, Dimensions: 6 7/8 in. high x 4 1/2 in. wide x 2 7/8 in. deep                                                             (175 mm high x 114 mm wide x 73 mm deep)
- Modulation Output: Single potentiometer, 140 ohms

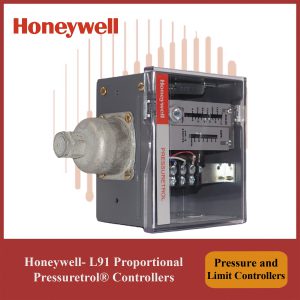

Honeywell Proportional Pressuretrol® L91B1050/U – Reliable Pressure & Limit Control
- Operating Range (psi): 5 to 150 psi; 225 psi - Maximum Sustained
- Operating Range (kPa): 34 to 1034 kPa; 1151 kPa - Maximum Sustained
- Differential Pressure Range (psi): 5 to 23 psi
- Differential Pressure Range (kPa): 35 to 160 kPa
- Mounting: optional surface mount through back of case
- Sensor Element: Brass bellows
- Approximate, Dimensions: 5 3/4 in. high x 4 1/2 in. wide x 2 3/4 in. deep                                                             (146 mm high x 114 mm wide x 70 mm deep)
- Modulation Output: Single potentiometer, 140 ohms
Honeywell Proportional Pressuretrol® L91B1118/U Module- Accurate Pressure & Limit Control
- Operating Range (psi): 10 to 300 psi; 325 psi - Maximum Sustained
- Operating Range (kPa): 0 - 2 MPa; 2241 kPa - Maximum Sustained
- Differential Pressure Range (psi): 28 to 110 psi
- Differential Pressure Range (kPa): 193 to 758 kPa
- Mounting: 1/4 in BSP-TR thread Mounting
- Sensor Element: Phos-bronze bellows
- Approximate, Dimensions: 6 1/16 in. high x 4 1/2 in. wide x 2 3/4 in. deep                                                           (154 mm high x 114 mm wide x 70 mm deep)
- Modulation Output: Single potentiometer, 140 ohms
