Honeywell IFM- Industrial Flame Monitoring Accessories- C22S Reliable Module
- Application: Field extension cable for U2S
- Description: 12 conductor cable with braided shield
- Used With: U2S models only Used with                                                                               -pf models for cable extension.
Honeywell IFM- Industrial Flame Monitoring Accessories- C330S Reliable Module
- Application: 4 Conductor Cable with braided shield for S70x,                                                            S80x and S55xBE Viewing heads
- Description: 4 Conductor Cable with braided shield
- Used With: S550XBE, S70x/S80x, S256BE viewing heads
Honeywell IFM- Industrial Flame Monitoring Accessories- C330S-0500 Reliable Module
- Application: Full spool with 500' C330S cable
- Description: 4 Conductor Cable with braided shield
- Used With: S550XBE, S70x/S80x, S256BE viewing heads

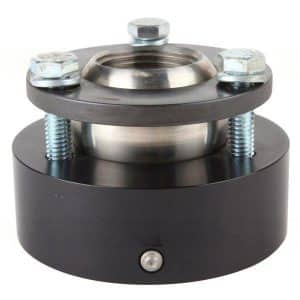

Honeywell IFM- Industrial Flame Monitoring Accessories- M-701-1 Reliable Module
- Application: Swivel Mount
- Description: Swivel mount, 2 in. pipe slip-on to 1 in. NPT connection.
- Used With: All viewing heads- S70x with DA-1

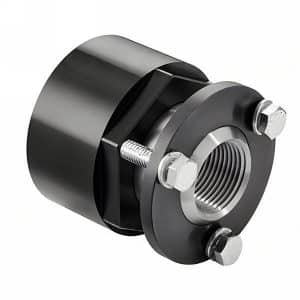

Honeywell IFM- Industrial Flame Monitoring Accessories- M-701-2 Reliable Module
- Application: Swivel Mount
- Description: Swivel Mount, 2" NPT to 1" NPT
- Used With: All viewing heads- S70x with DA-1

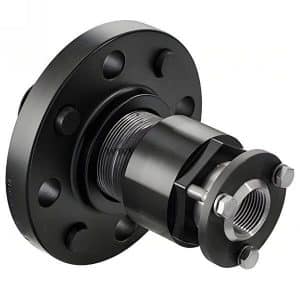

Honeywell IFM- Industrial Flame Monitoring Accessories- M-701-2-FLG Reliable Module
- Application: Flanged swivel mount
- Description: Flanged swivel mount, 2 in. flanged to 1 in. NPTF.
- Used With: All viewing heads- S70x with DA-1
Honeywell IFM- Industrial Flame Monitoring Accessories- M3204 Reliable Module
- Application: Vortex air cooler, model 3204.
- Description: Vortex air cooler, model 3204 -4SCFM (113SLPM) for maximum refrigeration 275 BTU/HR (69 Kcal/hr)
- Used With: All cooling jackets
Honeywell IFM- Industrial Flame Monitoring Accessories- M3208 Reliable Module
- Application: Vortex air cooler, model 3208.
- Description: Vortex air cooler, model 3208 -8SCFM (227 SLPM) for maximum refrigeration 550 BTU/HR (139 Kcal/hr)
- Used With: All cooling jackets

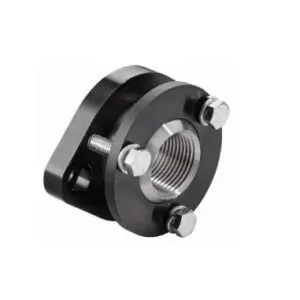

Honeywell Industrial Flame Monitoring Accessory- M-701-4 Control Module IFM Accessories
- Application: Swivel mount
- Description: Swivel mount, 2-bolt to 1 in. NPTF connection.
- Used With: All viewing heads- S70x with DA-1

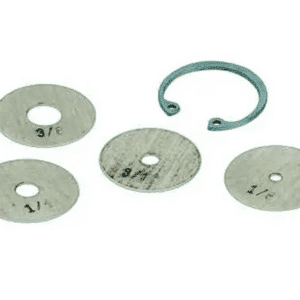

Honeywell Industrial Flame Monitoring Accessory- M-702-6 Module IFM Accessories
- Application: Orifice and retaining ring set.
- Description: Orifice and retaining ring set. Used for all viewing heads.
- Used With: Used for all viewing heads
Honeywell Industrial Flame Monitoring Accessory- PT-GA1 Reliable Module IFM Accessories
- Application: High temperature gasket for 1 in. locking coupler.
- Description: High temperature gasket for 1 in. locking coupler.
- Used With: 1 in. locking coupler
Honeywell Industrial Flame Monitoring Accessory- PT-QL1 Reliable Module IFM Accessories
- Application: Quartz lens for 1 in. locking coupler.
- Description: Quartz lens for 1 in. locking coupler.
- Used With: 1 in. locking coupler

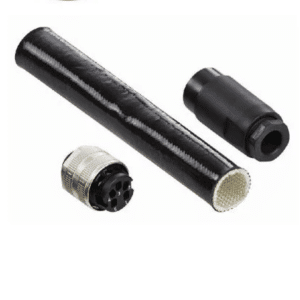

Honeywell Industrial Flame Monitoring Accessory- R-518-11 Module IFM Accessories
- Application: Model S55xBE viewing head installation.
- Description: S55xBE Field Wireable Cable with 6-8mm                                                 cable bushing for use with C330S cable. Includes Field wireable with proper bushing size to provide IP seal with C330S cable. No shield at connector, less robust version. Used with Model S55xBE Viewing Heads
- Used With: Model S55xBE viewing head, and C330S cable.
Honeywell Industrial Flame Monitoring Accessory- R-518-12 Module IFM Accessories
- Application: Heat Block-1" NPT
- Description: All viewing heads with 1" NPTF connection
- Used With: All viewing heads with 1" NPTF connection
Honeywell Industrial Flame Monitoring Accessory- R-518-13 Module IFM Accessories
- Application: Heat insulating nipple for S70X/S80X series viewing heads.
- Description: 1/2 in. NPT Ultem heat insulating nipple for S70X/S80X series viewing heads.
- Used With: S70X/S80X series viewing heads
Honeywell Industrial Flame Monitoring Accessory- R-518-CL12-HTG Module IFM Accessories
- Application: Locking coupler
- Description: 1 in. NPT locking coupler with high temperature gasket. Must be used with R-518-PT12 or R-518- PT12L
- Used With: All viewing head that has 1" NPTF

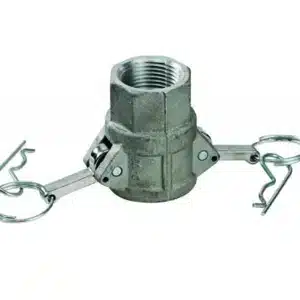

Honeywell Industrial Flame Monitoring Accessory- R-518-CL12-PG Module IFM Accessories
- Application: Locking quick disconnect/cam and groove coupler adapter
- Description: 1 in. NPT aluminum locking quick disconnect/cam and groove coupler adapter with 1/2 in. NPT purge. Must be used with R-518-PT12 and R-518-PT12L
- Used With: All viewing head that has 1" NPTF

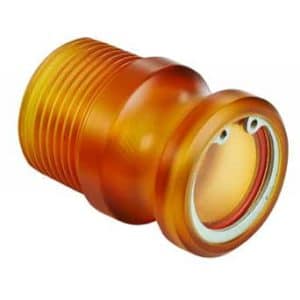

Honeywell Industrial Flame Monitoring Accessory- R-518-PT12 Module IFM Accessories
- Application: Insulating locking coupler adapter
- Description: 1 in. NPT Ultem insulating locking coupler adapter. Used with U2S processor/viewing head.
- Used With: 1 in. NPT Ultem insulating locking coupler adapter use with R-518-CL12-HTG and R-518-CL12PG
Honeywell Industrial Flame Monitoring Accessory- R-518-PT12L Module IFM Accessories
- Application: Locking coupler adapter with quartz lens.
- Description: 1 in. NPT Ultem locking coupler adapter with quartz lens.
- Used With: 1 in. NPT Ultem insulatingn locking coupler adapter with quartz lens for use with R-518-CL12-HTG and R-518-CL12PG

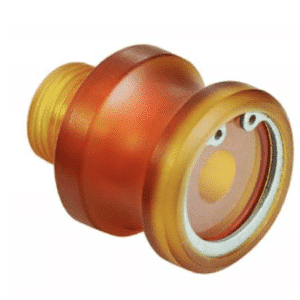

Honeywell Industrial Flame Monitoring Accessory- R-518-PT13 Control Module IFM Accessories
- Application: Locking coupler adapter only.
- Description: 1/2 in. NPT Ultem insulating locking coupler adapter use with R-518-CL12-HTG or R-518-CL12-PG
Honeywell Industrial Flame Monitoring Accessory- R-518-PT13L Control Module IFM Accessories
- Application: Locking coupler adapter with quartz lens.
- Description: 1/2 in. NPT Ultem locking coupler adapter with quartz lens. Use with R-518-CL12-HTG or R-518-CL12-PG
Honeywell Industrial Flame Monitoring Signal Processors- P531AC channel, Signal Processors
- Description: AC Signal Processor
- Application: Signal Processor with 3 channels without keypad
- Keypad: P532UI
- Status Monitoring: LEDs
- Electrical Ratings: 85-265 Vac + 24 Vdc backup
- Frequency: 50 Hz; 60 Hz
- Required Components: Appropriate Flame Detector
Honeywell Module- P522DC Signal Processor with 2 Channels and Keypad
- Description: DC Signal Processor
- Electrical Ratings: 22-26 Vdc+ 24 Vdc backup
- Used With: S550B/BE, S552B/BE, S556B/ BE viewing heads
- Required Components: Appropriate Flame Detector
Honeywell Module- P531DC channel Industrial Flame Monitoring Signal Processors
- Description: DC Signal Processor
- Application: Signal Processor with 3 channels without keypad
- Keypad: P532UI
- Status Monitoring: LEDs
- Electrical Ratings: 22-26 Vdc+ 24 Vdc backup
- Required Components: Appropriate Flame Detector

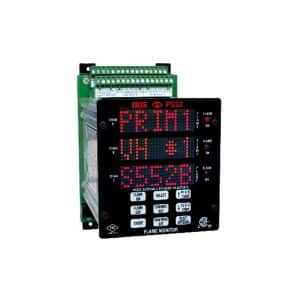

Honeywell Module- P532AC channel Industrial Flame Monitoring Signal Processors
- Description: AC Signal Processor
- Application: Signal Processor with 3 channels without keypad
- Keypad: Integrated
- Status Monitoring: tri-color display
- Electrical Ratings: 85-265 Vac + 24 Vdc backup
- Frequency: 50 Hz; 60 Hz
- Required Components: Appropriate Flame Detector
Honeywell Module- P532UI channel Industrial Flame Monitoring Signal Processors
- Description: Program module/keypad used with the P531
- Application: Program module/keypad used with the P531
Honeywell Module- S256BE Flare Stack Viewing Head Signal Processor
- UV Gain Adjustment: 0-99
- Digital Displays: Yes (1)
- Description: UV viewing head for use with P222
Honeywell Reliable Module- 700ACSP Signal Processor with 1 Channel
- Description: AC Signal Processor
- Keypad: Integrated
- Electrical Ratings: 85-265 Vac +24 Vdc Backup
- Frequency: 50 Hz; 60 Hz
- Used With: All models of S702, S706, S802, S806 viewing heads
- Required Components: Appropriate Flame Detector
