Resideo SmartValve® System Controller – SV9602P4824 Pilot Burner Module
- Ignition/Application: Intermittent HSI Pilot, General Application.
- OEM Brands: Burnham.
- Replaces: SV9501P2087, SV9601P4172, SV9502P2127, SV9602P4121
Resideo SV9501M2528 SmartValve® Reliable System Control for Pilot Burners
- Ignition/Application: Intermittent HSI Pilot, General Application .
- OEM Brands: ICP, Heil, Tempstar, Arcoaire, Comfortmaker, KeepRite.
- Replaces: SV9501M2056, SV9501M2080 , SV9501M2718, SV9501M2726, SV9501M2031,            SV9501M2049, SV9501M2239, SV9501M2700, SV9501M2734, SV9501M2742, SV9501M2064
Resideo SV9510K2539 Pilot Burner Module – SmartValve® System Control
- Ignition/Application: Direct Ignition, General Application.
- OEM Brands: Roberts Gordon.
- Replaces: SV9510H2228, SV9510K2133, SV9510K2158, SV9510K2141, SV9510K2166
Resideo SV9602P4832 Module – SmartValve® Pilot Burner Reliable Control
- Ignition/Application: Intermittent HSI Pilot, General Application.
- OEM Brands: Burnham.
- Replaces: SV9501P2020, SV9501P2046, SV9601P4149, SV9601P4164,                                            SV9502P2119, SV9502P2135, SV9602P4113, SV9602P4139
Resideo System Control Module – SmartValve® SV9502H2522 for Pilot Burner
- Ignition/Application: Intermittent HSI Pilot, General Application.
- OEM Brands: Laars, Utica, Armstrong, Concord, AirEase.
- Replaces: SV9501H3415, SV9501H2417, SV9501H2409, SV9502H1706,                                               SV9502H2704, SV9501H3423, SV9501H2425

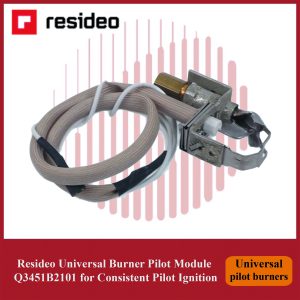

Resideo Universal Burner Pilot Module – Q3451B2101 for Consistent Pilot Ignition
Universal Pilot Burners Cross Reference Q3451U1000 REPLACES:
- Hood Angle: As Shipped (F) Front
- Orifice: Orange = BCR-18 (0.018 in.)
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: 55" igniter lead packed separately
Resideo Universal Burner Pilot Module – Q345A2386 for Standing & Intermittent Systems
Universal Pilot Burners Cross Reference Q345U1005 REPLACES:
- Hood Angle: As Shipped (L) Left
- Orifice: Red = BBR-11 (0.011 in.)
- Gas Type: LP
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: No
Resideo Universal Control Module – Q3451B3026 Pilot Burner for Gas Heating Units
Universal Pilot Burners Cross Reference Q3451U1000 REPLACES:
- Hood Angle: (K) Right
- Orifice: Orange = BCR-18 (0.018 in.)
- Gas Type: NAT
- Compression Fitting: 1/8"
- Auxiliary Bracket: As Shipped (36" igniter)
Resideo Universal Control Module – Q350A1859 Pilot Burner for Standing & Intermittent Systems
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: Low BTU Hood
- Hood Angle: (K) Right
- Orifice: Yellow = BBF-8 (0.008 in.)
- Gas Type: LP
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: No
Resideo Universal Gas Pilot Burner – Q3451B2077 Control Module for Reliable Ignition
Universal Pilot Burners Cross Reference Q3451U1000 REPLACES:
- Hood Angle: As Shipped (F) Front
- Orifice: As Shipped (BCR-20 (0.020 in.))
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: As Shipped (36" igniter)
Resideo Universal Gas Pilot Burner – Q350A2212 Module for Reliable Burner Control
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: Low BTU Hood
- Hood Angle: (F) Front
- Orifice: Pink = CAR-12 (0.012 in.)
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: No
Resideo Universal Gas Pilot Module – Q3451K2002 Reliable Ignition Control
Universal Pilot Burners Cross Reference Q3451U1000 REPLACES:
- Hood Angle: As Shipped (F) Front
- Orifice: As Shipped (BCR-20 (0.020 in.))
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: 55" igniter lead packed separately
Resideo Universal Gas Pilot Module Q3451B1186 – For Standing & Intermittent Operation
Universal Pilot Burners Cross Reference Q3451U1000 REPLACES:
- Hood Angle: As Shipped (F) Front
- Orifice: Orange = BCR-18 (0.018 in.)
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: 55" igniter lead packed separately
Resideo Universal Intermittent Pilot Ignition Reliable Control-S8610U3009 Module
- Ignition System: Intermittent Pilot
- Flame Sensor: 1 or 2 Rods
- Ignition Trial Time: 15 sec. or 90 sec. Field Selectable
- Between Trial Time: 5 Minute Delay After Failed Trial for Ignition
- Pre-Purge: 0 sec. or 30 sec. Field Selectable
- Flame Failure Response Time: 2.0 sec. max.
Resideo Universal Module Q345A1313 – Pilot Burner Control for Gas Systems
Universal Pilot Burners Cross Reference Q345U1005 REPLACES:
- Hood Angle: As Shipped (L) Left
- Orifice: Orange = BCR-18 (0.018 in.)
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: Check Application
Resideo Universal Module Q350A1222 – Pilot Burner for Dual System Control
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: Low BTU Hood
- Hood Angle: (L) Left
- Orifice: Pink = CAR-12 (0.012 in.)
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: No
Resideo Universal Pilot Burner – Q345A2816 Module for Gas Heating Applications
Universal Pilot Burners Cross Reference Q345U1005 REPLACES:
- Hood Angle: As Shipped (L) Left
- Orifice: Orange = BCR-18 (0.01 8in.)
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: No
Resideo Universal Pilot Burner Assembly – Q314A3828 Module for Control Systems
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: As Shipped
- Hood Angle: (F) Front
- Orifice: Green = BB-10 (0.010 in.)
- Gas Type: LP
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: No
Resideo Universal Pilot Burner Assembly – Q3451B1095 Module for Dual System Applications
Universal Pilot Burners Cross Reference Q3451U1000 REPLACES:
- Hood Angle: As Shipped (F) Front
- Orifice: Orange = BCR-18 (0.018 in.)
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: As Shipped (36" igniter)
Resideo Universal Pilot Burner Control – Q314U1001 Module for Standing & Intermittent Units
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: Check Application
- Hood Angle: Check Application
- Orifice: Check Application
- Gas Type: Check Application
- Compression Fitting: Check Application
- Auxiliary Bracket: Check Application
Resideo Universal Pilot Burner Control Module – Q314A3687 Standing & Intermittent System
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: As Shipped
- Hood Angle: (F) Front
- Orifice: As Shipped
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: No
Resideo Universal Pilot Burner Control System – Q350AKB Module for Dual Operation
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: Low BTU Hood
- Hood Angle: (K) Right
- Orifice: Check Application
- Gas Type: Check Application
- Compression Fitting: Check Application
- Auxiliary Bracket: No
Resideo Universal Pilot Burner Device – Q314AKB Module for Reliable Control
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: As Shipped
- Hood Angle: (K) Right
- Orifice: Check Application
- Gas Type: Check Application
- Compression Fitting: Check Application
- Auxiliary Bracket: No
Resideo Universal Pilot Burner Module Q314ALA – Designed for Standing & Intermittent Systems
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: As Shipped
- Hood Angle: As Shipped (L) Left
- Orifice: Check Application
- Gas Type: Check Application
- Compression Fitting: Check Application
- Auxiliary Bracket: Yes
Resideo Universal Pilot Burner Module Q348A1010 – Reliable Gas Control System
Universal Pilot Burners Cross Reference Q348A1009 REPLACES:
- Orifice: Brown = KR14 (0.014 in.)
- Gas Type: LP
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: No
Resideo Universal Pilot Burner Q345AFB – Gas System Control Module
Universal Pilot Burners Cross Reference Q345U1005 REPLACES:
- Hood Angle: (F) Front
- Orifice: Check Application
- Gas Type: Check Application
- Compression Fitting: Check Application
- Auxiliary Bracket: No
Resideo Universal Pilot Burner Q348AAB – Module for Standing/Intermittent Gas Control
Universal Pilot Burners Cross Reference Q348A1009 REPLACES:
- Orifice: Check Application
- Gas Type: Check Application
- Compression Fitting: Check Application
- Auxiliary Bracket: No
Resideo Universal Pilot Burners Module – Q314A3513 Standing & Intermittent Pilot Control System
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: As Shipped
- Hood Angle: (F) Front
- Orifice: As Shipped
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: Yes
