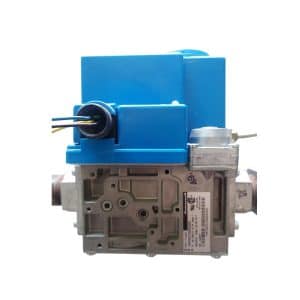

Honeywell Gas/Air Servo Regulated Gas Valves- V4730C1022-0000 Reliable Module
- Pipe Size (inch): 1 in.
- Capacity (kW): Natural Gas 0.64 sp.gr – 43-300 KW
- Capacity (kBtuh): Natural Gas 0.64 sp.gr – 146- 1024 kBtuh
- Voltage: 120 Vac (+10%, -15%)
- Includes: Mesh screen filter and 32006652-003 Flange kit.
- Max. Capacity with Strainer (cfh): Nat. Gas (Delta P= 1 in. w.c.) – 1024cfh
Honeywell Gas/Air Servo Regulated Gas Valves- V4730C1030-0000 Reliable Module
- Pipe Size (inch): 1 1/4 in.
- Capacity (kW): Natural Gas 0.64 sp.gr – 55-382 KW when used with VMU335, 71-500KW
- Capacity (kBtuh): Natural Gas sp.gr – 185- 1300 kBtuh when used with VMU335,245- 1710 kBtuh
- Voltage: 120 Vac (+10%, -15%)
- Includes: Mesh screen filter and 32006652-004 Flange kit.
- Max. Capacity with Strainer (cfh): Nat. Gas (Delta P= 1 in. w.c.) – 1300 cfh
Honeywell Gas/Air Servo Regulated Gas Valves- V8730C1007-0000 Reliable Module
- Pipe Size (inch): 1/2 in
- Capacity (kW): Natural Gas 0.64 sp.gr – 22-150 KW
- Capacity (kBtuh): Natural Gas 0.64 sp.gr – 73- 512 kBtuh
- Voltage: 24 Vac (+10%, -15%)
- Includes: Mesh screen filter and 32006652-001 Flange kit.
- Max. Capacity with Strainer (cfh): Nat. Gas (Delta P= 1 in. w.c.) – 221 cfh
Honeywell Gas/Air Servo Regulated Gas Valves- V8730C1015-0000 Module
- Pipe Size (inch): 3/4 in.
- Capacity (kW): Natural Gas 0.64 sp.gr – 43-300 KW
- Capacity (kBtuh): Natural Gas 0.64 sp.gr – 146- 1024 kBtuh
- Voltage: 24 Vac (+10%, -15%)
- Includes: Mesh screen filter and 32006652-002 Flange kit.
- Max. Capacity with Strainer (cfh): Nat. Gas (Delta P= 1 in. w.c.) – 1024 cfh
Honeywell Gas/Air Servo Regulated- V4734C1002-0000 Module Gas Valves
- Pipe Size (inch): 1 1/4 in.
- Capacity (kW): Natural Gas 0.64 sp.gr – 97-680 KW when used with VMU680
- Capacity (kBtuh): Natural Gas 0.64 sp.gr – 326- 2287 kBtuh when used with VMU680
- Voltage: 120 Vac (+10%, -15%)
- Includes: Mesh screen filter and 32006652-004 Flange kit.
Honeywell Industrial Gas Valve (V5055B1010/U) – Efficient & Durable Control
- Pipe Size (inch): 1 1/4 in.
- Pipe Size (DN): DN32
- Capacity (cfh): 1406 cfh
- Capacity (m3/hr): 39.8 m3/hr
- Connection Type: NPT
- Maximum Operating Differential Pressure: With V4055A, D or V4062– 5 psi (340 mbar); With V4055B or E – 15 psi (1 bar)
- Approvals, Factory Mutual: When used with the V4055A, G: Approved, Report Nos. 20698, 20835, 21172, and 24061
- Includes: 1/4 in. -18 NPT downstream tap and plug, 1/4 in. -18 NPT upstream tap and plug.
Honeywell Industrial Gas Valve (V5055C1034/U) – Efficient & Durable Control
- Pipe Size (inch): 1 in.
- Pipe Size (DN): DN25
- Capacity (cfh): 960 cfh
- Capacity (m3/hr): 27.2 m3/hr
- Connection Type: NPT
- Maximum Operating Differential Pressure: With V4055A, D or V4062 – 5 psi (340 mbar); With V4055B or E – 15 psi (1 bar)
- Approvals, Factory Mutual: When used with the V4055D, F: Approved, Report Nos. 20698, 20835, 21172, and 24061
- Includes: 1/4 in. -18 NPT upstream tap and plug, 1/4 in. -18 NPT downstream tap and plug
Honeywell Industrial Gas Valve (V5055E1054/U ) – Efficient & Durable Control
- Pipe Size (inch): 1 1/2 in.
- Pipe Size (DN): DN40
- Capacity (cfh): 1717 cfh
- Capacity (m3/hr): 48.6 m3/hr
- Connection Type: NPT
- Maximum Operating Differential Pressure: With V4055A, D or V4062 – 5 psi (340 mbar); With V4055B or E – 25 psi (1.6 bar)
- Approvals, Factory Mutual: When used with the V4055E: Approved, Report Nos. 20698, 20835, 21172, and 24068
- Includes: 1/4 in. -18 NPT upstream tap and plug, 1/4 in. -18 NPT downstream tap and plug.
Honeywell Industrial Gas Valve Control Module- V5097B1010/U Integrated Valve Train
- Pipe Size (inch): 2 in. or 2, 1/2 in. or 3 in.
- Pipe Size (DN): DN50 or DN65 or DN80
- Capacity (cfh): 3620 cfh to 5230 cfh
- Capacity (m3/hr): 102.5 to 148.0 m3/hr
- Integrated Valve Train Body Size: Large body
- Approvals, Factory Mutual: When used with the V4055A, G: Approved, Report Nos. 20698, 20835, 21172, and 24061
Honeywell Industrial Gas Valve Module- V5097A1012/U Integrated Valve Train
- Pipe Size (inch): 2 in. or 2, 1/2 in. or 3 in.
- Pipe Size (DN): DN50 or DN65 or DN80
- Capacity (cfh): 3620 cfh to 5230 cfh
- Capacity (m3/hr): 102.5 to 148.0 m3/hr
- Integrated Valve Train Body Size: Large body
- Approvals, Factory Mutual: When used with the V4055A, G: Approved, Report Nos. 20698, 20835, 21172, and 24061
Honeywell Integrated Valve Train- Industrial Gas Valve control- V5097C1000/U Module
- Pipe Size (inch): 3/4 in. or 1 in. or 1 1/4 in. or 2 in.
- Pipe Size (DN): DN20 or DN25 or DN32 or DN50
- Capacity (cfh): 665 cfh to 3620 cfh
- Capacity (m3/hr): 18.8 to 102.5 m3/hr
- Integrated Valve Train Body Size: Small body
- Approvals, Factory Mutual: When used with the V4055D, F: Approved, Report Nos. 20698, 20835, 21172, and 24066
Honeywell Integrated Valve Train- Industrial Gas Valve- V5097B1002/U Module
- Pipe Size (inch): 3/4 in. or 1 in. or 1 1/4 in. or 2 in.
- Pipe Size (DN): DN20 or DN25 or DN32 or DN50
- Capacity (cfh): 665 cfh to 3620 cfh
- Integrated Valve Train Body Size: Small body
- Approvals, Factory Mutual: When used with the V4055A, G: Approved, Report Nos. 20698, 20835, 21172, and 24061
Honeywell Module- V4055A1007/U On-Off Fluid Power Gas Valve Actuators
- Electrical Ratings: 120 Vac
- Frequency: 60 Hz
- Timing: Opening – 26 sec; Closing – < 1 sec
- Internal Auxiliary Switch: No
- Maximum Safe Operating Pressure (psi): 5 psi
- Maximum Safe Operating Pressure (kPa): 34 kPa
Honeywell Module- V4055A1080/U Gas Valve Actuators On-Off Fluid Power Control
- Electrical Ratings: 240 Vac
- Frequency: 50 Hz; 60 Hz
- Timing: Opening – 26 sec; Closing – < 1 sec
- Internal Auxiliary Switch: No
- Maximum Safe Operating Pressure (psi): 5 psi
- Maximum Safe Operating Pressure (kPa): 34 kPa
- Includes: Damper Shaft.
Honeywell Module- V4055D1001/U On-Off Fluid Power Control Gas Valve Actuators
- Electrical Ratings: 120 Vac
- Frequency: 60 Hz
- Timing: Opening – 26 sec; Closing – < 1 sec
- Internal Auxiliary Switch: No
- Maximum Safe Operating Pressure (psi): 5 psi
- Maximum Safe Operating Pressure (kPa): 34 kPa
- Includes: Damper Shaft.
Honeywell Module- V4055D1019/U On-Off Fluid Power Gas Valve Actuators
- Electrical Ratings: 120 Vac
- Frequency: 60 Hz
- Timing: Opening – 13 sec; Closing – < 1 sec
- Internal Auxiliary Switch: No
- Maximum Safe Operating Pressure (psi): 5 psi
- Maximum Safe Operating Pressure (kPa): 34 kPa
- Includes: Damper Shaft.
Honeywell Module- V4062A1008/U Off-Lo-Hi Fluid Power Gas Valve Actuators
- Internal Auxiliary Switch: No
- Timing: Opening – 26 sec; Closing – < 1 sec
- Description: Low pressure HI-LO-OFF actuator for use with V5055B and V5097B valve bodies
- Includes: Damper Shaft
Honeywell Module- V4730C1006-0000 Gas/Air Servo Regulated Gas Valves
- Pipe Size (inch): 1/2 in.
- Capacity (kW): Natural Gas 0.64 sp.gr – 22-150 KW
- Capacity (kBtuh): Natural Gas 0.64 sp.gr – 73- 512 kBtuh
- Voltage: 120 Vac (+10%, -15%)
- Includes: Mesh screen filter and 32006652-001 Flange kit.
- Max. Capacity with Strainer (cfh): Nat. Gas (Delta P= 1 in. w.c.) – 221cfh
Honeywell Module- V5097A1004/U Integrated Valve Train- Industrial Gas Valves
- Pipe Size (inch): 3/4 in. or 1 in. or 1 1/4 in. or 2 in.
- Pipe Size (DN): DN20 or DN25 or DN32 or DN50
- Capacity (cfh): 665 cfh to 3620 cfh
- Capacity (m3/hr): 18.8 to 102.5 m3/hr
- Integrated Valve Train Body Size: Small body
- Approvals, Factory Mutual: When used with the V4055A, G: Approved, Report Nos. 20698, 20835, 21172, and 24061
Honeywell Module- V5097C1018/U Integrated Valve Train- Industrial Gas Valves
- Pipe Size (inch): 2 in. or 2, 1/2 in. or 3 in.
- Pipe Size (DN): DN50 or DN65 or DN80
- Capacity (cfh): 3620 cfh to 5230 cfh
- Capacity (m3/hr): 102.5 to 148.0 m3/hr
- Integrated Valve Train Body Size: Large body
- Approvals, Factory Mutual: When used with the V4055D, F: Approved, Report Nos. 20698, 20835, 21172, and 24066
Honeywell Module- V8730C1023-0000 Gas/Air Servo Regulated Gas Valves
- Pipe Size (inch): 1 in.
- Capacity (kW): Natural Gas 0.64 sp.gr – 43-300 KW
- Capacity (kBtuh): Natural Gas 0.64 sp.gr – 146- 1024 kBtuh
- Voltage: 24 Vac (+10%, -15%)
- Includes: Mesh screen filter and 32006652-003 Flange kit.
- Max. Capacity with Strainer (cfh): Nat. Gas (Delta P= 1 in. w.c.) – 1024 cfh
Honeywell Module- V8730C1031-0000 Gas/Air Servo Regulated Gas Valve Control
- Pipe Size (inch): 1 1/4 in.
- Capacity (kW): Natural Gas 0.64 sp.gr – 55-382 KW when used with VMU335, 71-500 KW
- Capacity (kBtuh): Natural Gas 0.64 sp.gr – 185- 1300 kBtuh when used with VMU335, 245-1710 kBtuh
- Voltage: 24 Vac (+10%, -15%)
- Includes: Mesh screen filter and 32006652-004 Flange kit.
- Max. Capacity with Strainer (cfh): Nat. Gas (Delta P= 1 in. w.c.) – 1300 cfh
Honeywell Off-Lo-Hi Fluid Power Gas Valve Actuators- V4062A1131/U Module
- Internal Auxiliary Switch: No
- Timing: Opening – 13 sec; Closing – < 1 sec
- Description: Low pressure HI-LO-OFF actuator for use with V5055B and V5097B valve bodies
- Includes: Damper Shaft
Honeywell Off-Lo-Hi Fluid Power Gas Valve Actuators- V4062A1198/U Module
- Internal Auxiliary Switch: Yes - adjusted to 90 degree stroke.
- Timing: Opening – 13 sec; Closing – < 1 sec
- Auxiliary Switch Range: 120 Vac – 9.8 AFL, 58.8 ALR, 1/2 hp; 240 Vac – 4.9 AFL, 29.4 ALR, 1/2 hp
- Description: Low pressure HI-LO-OFF actuator for use with V5055B and V5097B valve bodies
- Includes: Damper Shaft with return spring installed.
Honeywell Off-Lo-Hi Fluid Power- V4062D1002/U Module Gas Valve Actuators
- Internal Auxiliary Switch: No.
- Timing: Opening – 26 sec; Closing – < 1 sec
- Contact Ratings: Proof of Closure (Factory Mutual) Switch – 9.8 AFL, 58.8 ALR, 1/2 hp; 4.9 AFL, 29.4 ALR, 1/2 hp
- Description: HI-LO-OFF actuator with Proof of Closure normally used on V5055C, E/V5907C, E valve bodies (Low Pressure)
- Includes: Damper Shaft.
Honeywell Off-Lo-Hi Fluid Power- V4062D1010/U Module Gas Valve Actuators
- Internal Auxiliary Switch: No.
- Timing: Opening – 13 sec; Closing – < 1 sec
- Contact Ratings: Proof of Closure (Factory Mutual) Switch – 9.8 AFL, 58.8 ALR, 1/2 hp; 4.9 AFL, 29.4 ALR, 1/2 hp
- Description: HI-LO-OFF actuator with Proof of Closure normally used on V5055C, E/V5907C, E valve bodies (Low Pressure)
- Includes: Damper Shaft.
Honeywell On-Off Fluid Power Control Gas Valve Actuators- V4055E1040/U Module
- Electrical Ratings: 120 Vac
- Frequency: 60 Hz
- Timing: Opening – 13 sec; Closing – < 1 sec
- Internal Auxiliary Switch: No
- Maximum Safe Operating Pressure (psi): 15 or 25 psi
- Maximum Safe Operating Pressure (kPa): 103 or 172 kPa
- Comments: Nema 4 Enclosure
- Includes: Damper Shaft
Honeywell On-Off Fluid Power Control- V4055B1039/U Module Gas Valve Actuators
- Electrical Ratings: 120 Vac
- Frequency: 60 Hz
- Timing: Opening – 13 sec; Closing – < 1 sec
- Internal Auxiliary Switch: No
- Maximum Safe Operating Pressure (psi): 15 or 25 psi
- Maximum Safe Operating Pressure (kPa): 103 or 172 kPa
- Includes: Damper Shaft.
