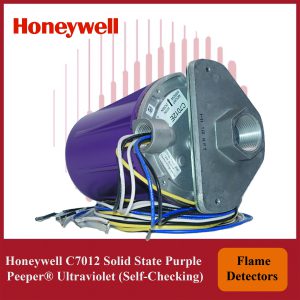

Honeywell C7012E1153/U Solid State Purple Peeper® Ultraviolet Flame Detector (Self-Checking)
- Frequency: 50 Hz; 60 Hz
- Weight: 4.25 lb (1.9 kg)
- NEMA Rating: NEMA 4
- Electrical Connections: 6 NEC Class 1 Color-coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 240 Vac
- Ambient Temperature Range: -20°F to +175°F (-20°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ
- Includes: Cast case and cover

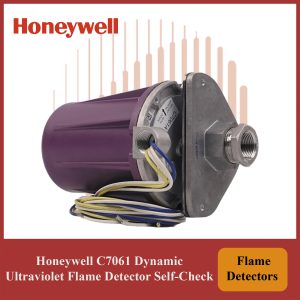

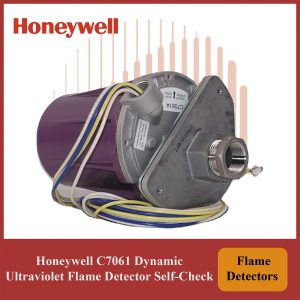

Honeywell C7061A1020/U Dynamic Self-Check Ultraviolet Flame Detector
- NEMA Rating: NEMA 4
- Electrical Connections: Terminal block
- Mounting: 1 in. NPT
- Electrical Ratings: 120 or 230 Vac
- Frequency: 52 Hz; 60 Hz
- Ambient Temperature Range: -40°F to +175°F (-40°C to +79°C)
Honeywell C7961E1014/U Dynamic Self-checking Solid State Ultraviolet Flame Detector
- NEMA Rating: NEMA 4
- Lead Length: 96 in. (2438 mm)
- Electrical Connections: NEC Class 1 color-coded
- Mounting: 1 in. NPT
- Approximate Dimensions: 3 3/4 in. diameter (5 1/4 in. diameter including mounting flange) x 7 7/32 in. long (95 mm diameter (133 mm diameter including mounting flange) x 183 mm long)
- Weight: 2.6 lb (1.2 kg)
- Approvals, CSA: Certified: Pending
- Approvals Factory Mutual: Pending
- Includes: Quartz Viewing Window rated for 20 psi (138 kPa)
Honeywell Dynamic Self-Check Ultraviolet Flame Detector- C7061A1046/U Module
- NEMA Rating: NEMA 4
- Electrical Connections: Brad Harrison type number 41310 connector.
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Frequency: 54 Hz; 60 Hz
- Ambient Temperature Range: -40°F to +175°F (-40°C to +79°C)
Honeywell Dynamic Self-checking C7961F1004/U Solid State Ultraviolet Flame Detector
- NEMA Rating: Explosion Proof
- Lead Length: 96 in. (2438 mm)
- Electrical Connections: NEC Class 1 color-coded
- Mounting: 1 in. NPT
- Approximate Dimensions: 8 in. diameter x 12 in. long (203 mm diameter x 305 mm long)
- Weight: 14.5 lb (6.6 kg)
- Approvals Factory Mutual: Approved: Report No. 14740.01
- Includes: Quartz Viewing Window rated for 100 psi

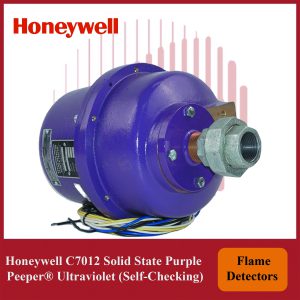

Honeywell Solid State Purple Peeper® C7012F1052/U Ultraviolet Flame Detector (Self-Checking)
- Frequency: 50 Hz; 60 Hz
- Weight: 14.5 lb (6.6 kg)
- NEMA Rating: Explosion Proof
- Electrical Connections: 6 NEC Class 1 Color-coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Ambient Temperature Range: -20°F to +175°F (-20°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. E34649, Guide No. ZTSZ
- Includes: Explosion-proof, two piece, violet, cast aluminum enclosure.
Honeywell Solid State Purple Peeper® Ultraviolet Flame Detector C7012E1187/U (Self-Checking)
- Frequency: 50 Hz
- Weight: 4.25 lb (1.9 kg)
- NEMA Rating: NEMA 4
- Electrical Connections: 6 NEC Class 1 Color-coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 220 Vac
- Ambient Temperature Range: -20°F to +175°F (-20°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ
- Includes: Cast case and cover
Honeywell Solid State Purple Peeper®C7012E1112/U Ultraviolet Flame Detector (Self-Checking)
- Frequency: 50 Hz; 60 Hz
- Weight: 4.25 lb (1.9 kg)
- NEMA Rating: NEMA 4
- Electrical Connections: 6 NEC Class 1 Color-coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Ambient Temperature Range: -20°F to +175°F (-20°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ
- Includes: Cast case and cover
Honeywell Ultraviolet Flame Detector- C7061F2001/U Module Dynamic Self-Check
- NEMA Rating: Explosion Proof
- Lead Length: 96 in. (2438 mm)
- Electrical Connections: Color-coded leadwires
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Frequency: 57 Hz; 60 Hz
- Ambient Temperature Range: -40°F to +175°F (-40°C to +79°C)
Honeywell- C7061A1053/U Module Dynamic Self-Check Ultraviolet Flame Detector
- NEMA Rating: NEMA 4
- Lead Length: 96 in. (2438 mm)
- Electrical Connections: Color-coded leadwires
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Frequency: 55 Hz; 60 Hz
- Ambient Temperature Range: -40°F to +175°F (-40°C to +79°C)
