Honeywell Adjustable Sensitivity Ultraviolet Flame Detector- C7076A1031/U Module
- NEMA Rating: NEMA 4
- Electrical Ratings: 220 Vac; 240 Vac
- Frequency: 50 Hz; 60 Hz
- Approximate Dimensions: 4 in. high x 4 in. wide x 10 1/4 in. deep (102 mm high x 102 mm wide x 261 mm deep)
- Weight: 6.6 lb (3 kg)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ
Honeywell Adjustable Sensitivity Ultraviolet Flame Detector- C7076D1027/U Module
- NEMA Rating: NEMA 7
- Electrical Ratings: 120 Vac
- Frequency: 60 Hz
- Approximate Dimensions: 6 5/8 in. high x 6 3/16 in. wide x 11 3/4 in. deep (168 mm high x 158 mm wide x 300 mm deep)
- Weight: 17.6 lb (8 kg)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. E34649, Guide No. ZTSZ
- Approvals, Others: Explosion Proof.
Honeywell Adjustable Sensitivity- Module C7076A1015/U Ultraviolet Flame Detector
- NEMA Rating: NEMA 4
- Electrical Ratings: 100 Vac
- Frequency: 50 Hz; 60 Hz
- Approximate Dimensions: 4 in. high x 4 in. wide x 10 1/4 in. deep (102 mm high x 102 mm wide x 261 mm deep)
- Weight: 6.6 lb (3 kg)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ

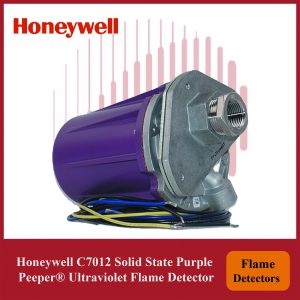

Honeywell C7012 Solid State Purple Peeper® C7012A1152/U Ultraviolet Flame Detector
- Frequency: 50 Hz; 60 Hz
- Weight: 4.25 lb (1.9 kg)
- NEMA Rating: NEMA 4
- Electrical Connections: 4 NEC Class 1 Colour coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Ambient Temperature Range: 25°F to 175°F (-4°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ
- Includes: Cast case and cover
- Used With: Flame Amplifiers: R7247A, B; R7847A, B; R7257
Honeywell C7012A1186/U Module Solid State Purple Peeper® Ultraviolet Flame Detector
- Frequency: 50 Hz; 60 Hz
- Weight: 4.25 lb (1.9 kg)
- NEMA Rating: NEMA 4
- Electrical Connections: 4 NEC Class 1 Colour coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 208 Vac
- Ambient Temperature Range: 25°F to 175°F (-4°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ
- Includes: Cast case and cover
- Used With: Flame Amplifiers: R7247A, B; R7847A, B; R7257
Honeywell C7012E1153/U Solid State Purple Peeper® Ultraviolet Flame Detector (Self-Checking)
- Frequency: 50 Hz; 60 Hz
- Weight: 4.25 lb (1.9 kg)
- NEMA Rating: NEMA 4
- Electrical Connections: 6 NEC Class 1 Color-coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 240 Vac
- Ambient Temperature Range: -20°F to +175°F (-20°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. MP268, Guide No. MCCZ
- Includes: Cast case and cover

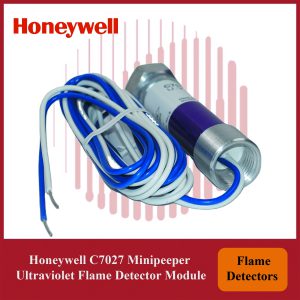

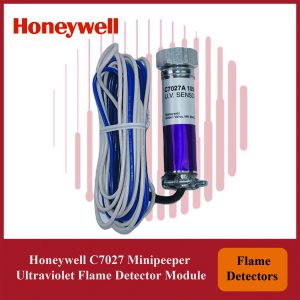

Honeywell C7027A1023/U Mini peeper Ultraviolet Flame Detector Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 96 in. (2438 mm)
- Mounting: Integral nut for 1/2 in. sighting pipe
- Ambient Temperature Range: 0°F to 215°F (-18°C to +102°C)
- Detects: Detects ultraviolet radiation in flames

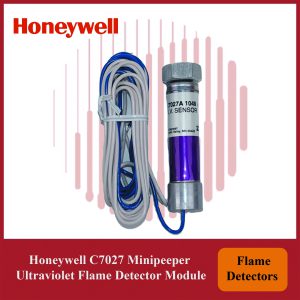

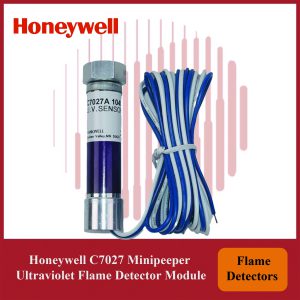

Honeywell C7027A1049/U Minipeeper UV Flame Detector Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 96 in. (2438 mm)
- Mounting: Integral nut for 1/2 in. sighting pipe
- Ambient Temperature Range: 0°F to 215°F (-18°C to +102°C)
- Includes: 1/2 in. NPT threaded spud connector.
- Detects: Detects ultraviolet radiation in flames

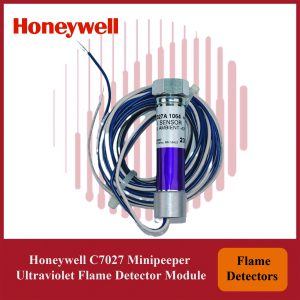

Honeywell C7027A1056/U – Reliable Minipeeper Ultraviolet Flame Detector Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 96 in. (2438 mm)
- Mounting: Integral nut for 1/2 in. sighting pipe
- Ambient Temperature Range: 0°F to 215°F (-18°C to +102°C)
- Detects: Detects ultraviolet radiation in flames

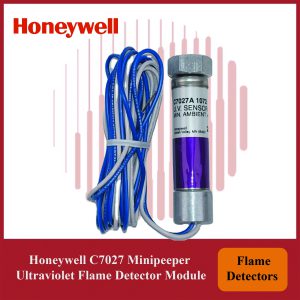

Honeywell C7027A1072/U Minipeeper Ultraviolet Flame Detector Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 96 in. (2438 mm)
- Mounting: Integral nut for 1/2 in. sighting pipe
- Ambient Temperature Range: -40°F to 215°F (-40°C to 102°C)
- Includes: 1/2 in. NPT threaded spud connector.
- Detects: Detects ultraviolet radiation in flames
Honeywell C7027A1114/U Minipeeper Ultraviolet Flame Detector Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 44 in. (1118 mm)
- Mounting: Integral nut for 1/2 in. sighting pipe
- Ambient Temperature Range: 0°F to 215°F (-18°C to +102°C)
- Includes: installed 22" flexible conduit
- Detects: Detects ultraviolet radiation in flames

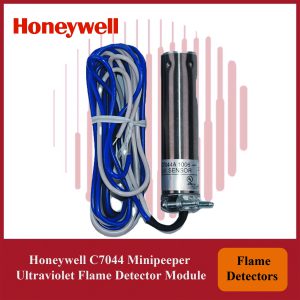

Honeywell C7044A1006/U Minipeeper Ultraviolet Flame Detector Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 72 in. (1829 mm)
- Mounting: Mounting Bracket provided
- Ambient Temperature Range: 0°F to 215°F (-18°C to +102°C)
- Includes: Mounting bracket
- Detects: Detects ultraviolet radiation in flames - Side Viewing
Honeywell C7061A1020/U Dynamic Self-Check Ultraviolet Flame Detector
- NEMA Rating: NEMA 4
- Electrical Connections: Terminal block
- Mounting: 1 in. NPT
- Electrical Ratings: 120 or 230 Vac
- Frequency: 52 Hz; 60 Hz
- Ambient Temperature Range: -40°F to +175°F (-40°C to +79°C)
Honeywell C7915 Infrared Flame Detector- C7915A1010/U Module
- Lead Length: 30 in. (762 mm)
- Approximate Dimensions: 1 1/4 in. diameter x 2 1/4 in. long (32 mm diameter x 58 mm long)
- Ambient Temperature Range: -20°F to 125°F operating range (-18°C to 52°C operating range)
- Includes: With magnifying lens, 32007255-001 Cell
- Used With: Flame Amplifiers: R7852
Honeywell C7915 Infrared Flame Detector- C7915A1036/U Module
- Lead Length: 96 in. (2438 mm)
- Approximate Dimensions: 1 1/4 in. diameter x 2 1/4 in. long (32 mm diameter x 58 mm long)
- Ambient Temperature Range: -20°F to 125°F operating range (-18°C to 52°C operating range)
- Includes: With magnifying lens, 32007255-001 Cell.
- Used With: Flame Amplifiers: R7852
Honeywell C7915 Infrared- C7915A1028/U Module Flame Detector
- Lead Length: 48 in. (1219 mm)
- Approximate Dimensions: 1 1/4 in. diameter x 2 1/4 in. long (32 mm diameter x 58 mm long)
- Ambient Temperature Range: -20°F to 125°F operating range (-18°C to 52°C operating range)
- Includes: With magnifying lens, 32007255-001 Cell, Orifice, heat block, and reducer bushing
- Used With: Flame Amplifiers: R7852
Honeywell C7961E1014/U Dynamic Self-checking Solid State Ultraviolet Flame Detector
- NEMA Rating: NEMA 4
- Lead Length: 96 in. (2438 mm)
- Electrical Connections: NEC Class 1 color-coded
- Mounting: 1 in. NPT
- Approximate Dimensions: 3 3/4 in. diameter (5 1/4 in. diameter including mounting flange) x 7 7/32 in. long (95 mm diameter (133 mm diameter including mounting flange) x 183 mm long)
- Weight: 2.6 lb (1.2 kg)
- Approvals, CSA: Certified: Pending
- Approvals Factory Mutual: Pending
- Includes: Quartz Viewing Window rated for 20 psi (138 kPa)
Honeywell Dynamic Self-Check Ultraviolet Flame Detector- C7061A1046/U Module
- NEMA Rating: NEMA 4
- Electrical Connections: Brad Harrison type number 41310 connector.
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Frequency: 54 Hz; 60 Hz
- Ambient Temperature Range: -40°F to +175°F (-40°C to +79°C)
Honeywell Dynamic Self-checking C7961F1004/U Solid State Ultraviolet Flame Detector
- NEMA Rating: Explosion Proof
- Lead Length: 96 in. (2438 mm)
- Electrical Connections: NEC Class 1 color-coded
- Mounting: 1 in. NPT
- Approximate Dimensions: 8 in. diameter x 12 in. long (203 mm diameter x 305 mm long)
- Weight: 14.5 lb (6.6 kg)
- Approvals Factory Mutual: Approved: Report No. 14740.01
- Includes: Quartz Viewing Window rated for 100 psi

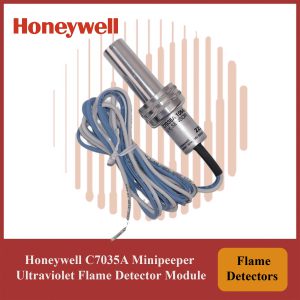

Honeywell Flame Detector - C7035A1056/U Module Minipeeper Ultraviolet
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 144 in. (3658 mm)
- Ambient Temperature Range: -40°F to +250°F (-40°C to +121°C)
Honeywell Minipeeper C7027A1064/U Ultraviolet for Flame Detector Operation
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 288 in. (7315 mm)
- Mounting: Integral nut for 1/2 in. sighting pipe
- Ambient Temperature Range: -40°F to 215°F (-40°C to 102°C)
- Includes: 1/2 in. NPT threaded spud connector.
- Detects: Detects ultraviolet radiation in flames
Honeywell Minipeeper Ultraviolet Flame Detector - C7035A1049/U Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 72 in. (1829 mm)
- Ambient Temperature Range: 0°F to 250°F (-18°C to +121°C)
- Includes: 1” BSP collar
Honeywell Minipeeper Ultraviolet Flame Detector - C7035A1064/U Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 72 in. (1829 mm)
- Ambient Temperature Range: -40°F to +250°F (-40°C to +121°C)
- Includes: 1” BSP collar

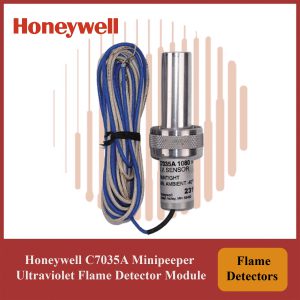

Honeywell Minipeeper Ultraviolet Flame Detector - C7035A1080/U Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 72 in. (1829 mm)
- Ambient Temperature Range: 0°F to 250°F (-18°C to +121°C)
- Includes: 600F leads
Honeywell Minipeeper Ultraviolet Flame Detector – C7027A1031/U Module
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 96 in. (2438 mm)
- Mounting: Integral nut for 1/2 in. sighting pipe
- Ambient Temperature Range: -40°F to 215°F (-40°C to 102°C)
- Detects: Detects ultraviolet radiation in flames

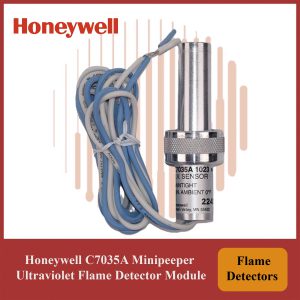

Honeywell Module C7035A1023/U Minipeeper Ultraviolet Flame Detector
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 72 in. (1829 mm)
- Ambient Temperature Range: 0°F to 250°F (-18°C to +121°C)
Honeywell Module C7035A1031/U Minipeeper Ultraviolet Flame Detector
- Application: Coal fired burners; Gas fired burners; Oil fired burners
- Lead Length: 72 in. (1829 mm)
- Ambient Temperature Range: -40°F to +250°F (-40°C to +121°C)
Honeywell Solid State Purple Peeper® C7012F1052/U Ultraviolet Flame Detector (Self-Checking)
- Frequency: 50 Hz; 60 Hz
- Weight: 14.5 lb (6.6 kg)
- NEMA Rating: Explosion Proof
- Electrical Connections: 6 NEC Class 1 Color-coded lead wires.
- Mounting: 1 in. NPT
- Electrical Ratings: 120 Vac
- Ambient Temperature Range: -20°F to +175°F (-20°C to +79°C)
- Approvals, Underwriters Laboratories Inc.: Listed: File No. E34649, Guide No. ZTSZ
- Includes: Explosion-proof, two piece, violet, cast aluminum enclosure.
