Honeywell EC7823A1004/U Flame Switch 7800 Series Burner Controls
- Voltage: 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Approvals, Factory Mutual: Report No. OY0A9.AF
Honeywell EC7830A1066/U Programming Control for 7800 Series Burner Systems
- Voltage : 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Post Purge: 15 sec On/Off Power Burner
Honeywell EC7850A1122/U Burner Control | 7800 Series Flame Safety & Programming Unit
- Voltage : 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Post Purge: 15 sec LHL-LF & HF Proven
Honeywell EC7890B1028/U On-Off Primary Controls 7800 Series Burner Controls
- Voltage: 220 to 240 Vac (+10, -15%)
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Factory Mutual: Report No. 1V9AO.AF
- Approvals, Gastec/European: CE approval model EC7890B1028/U: PIN-0063CT1466 against EN 298:2012 under GAR 2016/426
Honeywell EC7895A1010/U On-Off Primary Control with Prepurge 7800 Series Burner Controls
- Voltage: 220 to 240 Vac (+10, -15%)
- Pilot Type: intermittent
- Delayed Main Valve: No
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Factory Mutual: Report No. 1D0A1.AF
Honeywell EC7895C1000/U On-Off Primary Control with Prepurge – 7800 Series
- Voltage: 220 to 240 Vac (+10, -15%)
- Pilot Type: interrupted
- Delayed Main Valve: Yes
- Flame Establishing Period - Main: 10 sec
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Factory Mutual: Report No. 1D0A1.AF

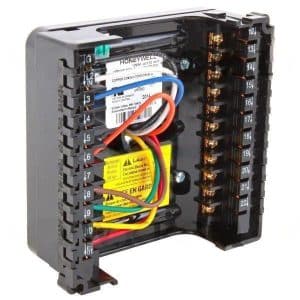

Honeywell Q7800A1005/U 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
- Application: Wiring Subbase
- Approximate, Dimensions: 4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in. deep (126 mm wide x 126 mm high x 36 mm deep)
- Weight lb. (kg): 7 oz (0.20 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ2.
- Used With: Panel mount
Honeywell Q7800B1003/U 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
- Application: Wiring Subbase
- Approximate, Dimensions: 4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in. deep (126 mm wide x 126 mm high x 36 mm deep)
- Weight lb. (kg): 1 lb 3 oz (0.54 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ2.
- Used With: Burner/wall mount 2 knockouts each end
Honeywell Q7800B1011/U 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
- Application: Wiring Subbase
- Approximate, Dimensions: 4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in. deep (126 mm wide x 126 mm high x 36 mm deep)
- Weight lb. (kg): 1 lb 3 oz (0.54 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ2.
- Used With: Burner/wall mount 2 knockouts each end
Honeywell Q7800F1004/U 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
- Application: Wiring Adapter Subbase
- Approximate, Dimensions: 5 in. high x 5 in. wide x 1 3/4 in. deep (127 mm high x 127 mm wide x 44 mm deep)
- Weight lb. (kg): 15 oz (0.43 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ2.
- Used With: Burner/wall mount adapter subbase for RA890 Used With RM7890 EC7890.
Honeywell R7847A1082/U Flame Signal Amplifier – Trusted 7800 Series Burner Solution
- Type: Ultraviolet
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil: Mini peeper C7027A, C7035A, C7044
- Colour: Purple
Honeywell R7847B1023/U Flame Signal Amplifier Module – 7800 Series Burner Control
- Type: Rectification
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods
- Colour: Green
Honeywell R7847B1072/U Flame Signal Amplifier | 7800 Series Burner Control Module
- Type: Rectification
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods for impedance matching for leadwire runs > 50' or Ultraviolet Flame Sensor C7012A, C
- Colour: Green
Honeywell R7849A1023/U – Reliable Flame Signal Amplifier Module for 7800 Series Burners
- Type: Ultraviolet
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil: Mini peeper C7027A, C7035A, C7044
- Colour: Purple
Honeywell R7851B1000/U Flame Signal Amplifier Module – 7800 Series Burner Control
- Type: Optical
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil, Coal: Optical (UV, Visible Light) C7927, C7962B
- Colour: White
Honeywell R7852A1001/U Flame Signal Amplifier | 7800 Series Burner Control Module
- Type: Infrared
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Infrared (lead sulfide) C7915
- Colour: Red/White
Honeywell R7861A1034/U – Reliable Flame Signal Amplifier Module for 7800 Series Burners
- Type: Ultraviolet
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: Dynamic Self-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Ultraviolet Flame Sensor C7061
- Colour: Purple
Honeywell R7886A1001/U Flame Signal Amplifier – Trusted 7800 Series Burner Solution
- Type: Ultraviolet
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Dynamic Self-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Adjustable Sensitivity Ultraviolet Flame Sensor C7076
- Colour: Blue
Honeywell RM7800E1010/U Programmers 7800 Series Burner Controls
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Main: 10 sec or 15 sec
- Flame Establishing Period - Pilot:Â 4 sec or 10 sec
- Second Stage Pilot Valve: Interrupted
- Interlocks: Lockout
Honeywell RM7800G1018/U Programming Module for 7800 Series Burner Controls
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Main: 10 sec, or 15 sec, or 30 sec, or Intermittent
- Flame Establishing Period - Pilot:Â 4 sec or 10 sec
- Second Stage Pilot Valve: selectable
- Interlocks: Running
Honeywell RM7800L1012/U Programmer | 7800 Series Burner Management Control
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Main: 10 sec or 15 sec
- Flame Establishing Period - Pilot:Â 4 sec or 10 sec
- Second Stage Pilot Valve: Interrupted
- Interlocks: Lockout
Honeywell RM7800L1053/U Flame Safety Programmer – 7800 Series Control System
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Main: 10 sec or Intermittent
- Flame Establishing Period - Pilot:Â 4 sec or 10 sec
- Second Stage Pilot Valve: Intermittent
- Interlocks: Lockout
Honeywell RM7800L1087/U Programmer with VPS – 7800 Series Burner Control
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Main: 10 sec or 15 sec
- Flame Establishing Period - Pilot:Â 4 sec or 10 sec
- Second Stage Pilot Valve:Â Interrupted
- Interlocks: Lockout
Honeywell RM7823A1016/U Flame Switch 7800 Series Burner Controls
- Voltage: 120 Vac (+10,-15%)
- Frequency: 50 Hz; 60 Hz (±10%)
- Approvals, Underwriters Laboratories Inc: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3.
- Approvals, FCC: FCC Part 15, Class B, Emissions.
- Approvals, Factory Mutual: Report No. OX4A5.AF.
Honeywell RM7840L1018/U Programmers, 7800 Series Burner Controls
- Interlocks: Lockout
- Second Stage Pilot Valve: Interrupted
- Flame Establishing Period - Main: 10 sec or 15 sec
- Flame Establishing Period - Pilot: 4 sec or 10 sec
Honeywell RM7840L1075/U Programmers, 7800 Series Burner Controls with VPS
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Main: 10 sec, 15 sec, 30 sec
- Flame Establishing Period - Pilot: 4 sec or 10 sec
- Interlocks: Lockout
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, Factory Mutual: Report No. 1V9AO.AF.
Honeywell RM7840M1017/U Programmers, 7800 Series Burner Controls
- Interlocks: Running
- Second Stage Pilot Valve: Intermittent
- Flame Establishing Period - Main: 10 sec or Intermittent
- Flame Establishing Period - Pilot: 4 sec or 10 sec
Honeywell RM7845A1001/U Programmers, 7800 Series Burner Controls
- Flame Establishing Period - Main: 10 sec
- Flame Establishing Period - Pilot: 4 sec or 10 sec.
