Honeywell 7800 Series Burner Controls, RM7840E1016/U Programmers
- Interlocks: Lockout
- Second Stage Pilot Valve: Interrupted
- Flame Establishing Period - Main: 10 sec or 15 sec
- Flame Establishing Period - Pilot: 4 sec or 10 sec
Honeywell 7800 Series Burner Controls, RM7840L1026/U Programmers
- Interlocks: Lockout
- Second Stage Pilot Valve: Intermittent
- Flame Establishing Period - Main: 10 sec or Intermittent
- Flame Establishing Period - Pilot: 4 sec or 10 sec
Honeywell 7800 Series Burner Management Control RM7830A1029/U – Programming Module
- Voltage : 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Post Purge: 30 sec On/Off Power Burner
Honeywell 7800 Series Burner RM7840G1014/U Programmer control
- Interlocks: Running
- Second Stage Pilot Valve: selectable
- Flame Establishing Period - Main: 10 sec, or 15 sec, or 30 sec, or Intermittent
- Flame Establishing Period - Pilot: 4 sec or 10 sec
Honeywell 7800 Series EC7850A1072/U Burner Management Programming Control
- Voltage : 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Post Purge: 2 sec LHL-LF & HF Proven
Honeywell 7800 Series EC7850A1080/U Burner Programming Control Module
- Voltage : 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Post Purge: 30 sec LHL-LF & HF Proven
Honeywell 7800 Series Flame Signal Amplifier Module – R7847C1005/U
- Type: Rectification
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Dynamic Self-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Ultraviolet Flame Sensor C7012E, F
- Colour: Green

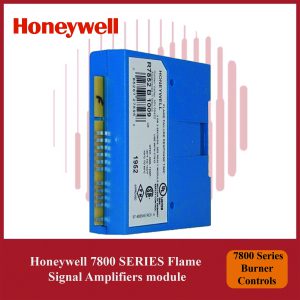

Honeywell 7800 Series Flame Signal Amplifier Module – R7852B1009/U
- Type: Infrared
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Infrared (lead sulfide) C7915
- Colour: Red/White
Honeywell 7800 Series R7847B1064/U Flame Amplifier Module for Burner Controls
- Type: Rectification
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods for impedance matching for leadwire runs > 50'
- Colour: Green
Honeywell 7800 Series R7851C1008/U Flame Amplifier Module for Burner Controls
- Type: Optical
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Dynamic Self-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Optical (UV only) C7961E, F
- Colour: White
Honeywell 7800 Series RM7800M1011/U Burner Programmer for Safety & Efficiency
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Main: 10 sec or Intermittent
- Flame Establishing Period - Pilot:Â 4 sec or 10 sec
- Second Stage Pilot Valve: Intermittent
- Interlocks: Running
Honeywell 7800 Series RM7850A1001/U – Reliable Burner Programming Control
- Voltage : 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Post Purge: 2 sec LHL-LF & HF Proven

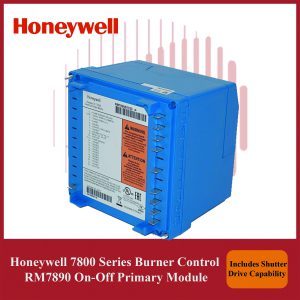

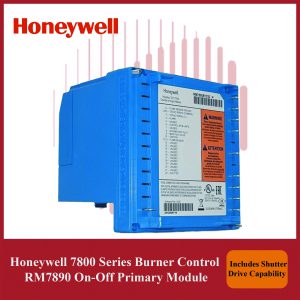

Honeywell 7800 Series RM7890B1014/U On-Off Primary Control Module
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3.
- Approvals, Factory Mutual: Report No. 1V9AO.AF
Honeywell 7800 Series RM7890D1004/U On-Off Primary Burner Safety Control
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Pilot: 15 or 30 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3.
- Approvals, Factory Mutual: Report No. 1V9AO.AF
Honeywell 7800 Series RM7895C1012/U On-Off Primary Burner Control Module with Prepurge
- Voltage: 120 Vac (+10, -15%)
- Pilot Type: interrupted
- Delayed Main Valve: Yes
- Flame Establishing Period - Main: 10 sec
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3
- Approvals, Control Safety Devices: Acceptable: CSD-1
- Approvals, Factory Mutual: Report No. OX4A5.AF

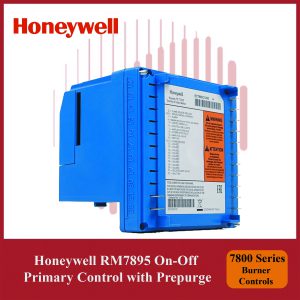

Honeywell 7800 Series RM7895E1002/U On-Off Primary Control with Prepurge for Safety & Efficiency
- Voltage: 120 Vac (+10, -15%)
- Pilot Type: intermittent
- Delayed Main Valve: No
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 15 or 30 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3
- Approvals, Control Safety Devices: Acceptable: CSD-1
- Approvals, Factory Mutual: Report No. OX4A5.AF

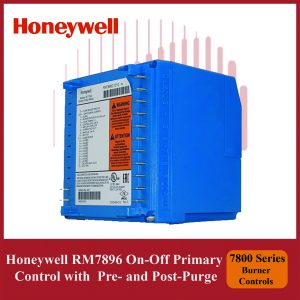

Honeywell 7800 Series RM7896C1010/U On-Off Primary Burner Control Module with Pre-and Post-purge
- Pilot Type: interrupted
- Flame Establishing Period - Main: 10 sec
- Flame Establishing Period - Pilot: 4 or 10 sec
- Delayed Main Valve: Yes
- PostPurge: 15 sec
Honeywell 7800 Series RM7896D1019/U On-Off Primary Burner Control Module with Pre-and Post-purge
- Pilot Type: interrupted
- AirFlow Check: Dynamic
- Flame Establishing Period - Main: 10 sec
- Flame Establishing Period - Pilot: 4 or 10 sec
- Delayed Main Valve: Yes
- PostPurge: 15 sec
Honeywell 7800 Series RM7896D1027/U On-Off Primary Burner Control Module with Pre-and Post-purge
- Pilot Type: interrupted
- AirFlow Check: Dynamic
- Flame Establishing Period - Main: 10 sec
- Flame Establishing Period - Pilot: 4 or 10 sec
- Delayed Main Valve: Yes
- PostPurge: 60 sec

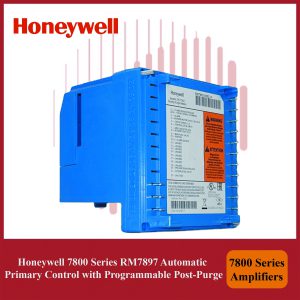

Honeywell 7800 Series RM7897A1002/U Automatic Primary Control with Programmable Post-Purge
- Voltage: 120 Vac (+10, -15%)
- Pilot Type: selectable

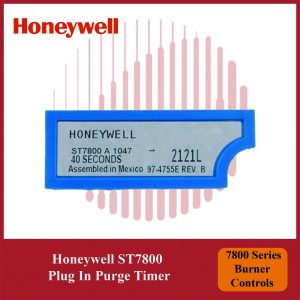

Honeywell 7800 Series ST7800A1047/U Plug-In Purge Timer Module for Burner Systems
- Pre-Purge: 40 seconds
- Application: Purge Timer

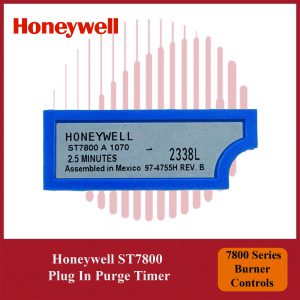

Honeywell 7800 Series ST7800A1070/U Plug-In Purge Timer for Safe & Efficient Burner Operation
- Pre-Purge: 2.5 minutes
- Application: Purge Timer
Honeywell 7800 Series ST7800A1138/U Plug-In Purge Timer Module for Burner Systems
- Pre-Purge:Â 22.0 minutes
- Application: Purge Timer
Honeywell 7800 Series ST7800C1011/U Plug-In Purge Timer for Safe & Efficient Burner Operation
- Pre-Purge: 20 seconds
- Application: Purge Timer for RM7838C Only
Honeywell 7800 Series ST7800C1078/U Plug-In Purge Timer for Safe & Efficient Burner Operation
- Pre-Purge: 14.0 Minutes
- Application: Purge Timer for RM7838C Only
Honeywell 7800 Series ST7800C1128/U Plug-In Purge Timer Module for Burner Systems
- Pre-Purge: 24.0 minutes
- Application: Purge Timer for RM7838C Only
Honeywell Burner Control R7849A1015/U Flame Signal Amplifier – 7800 Series
- Type: Ultraviolet
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil: Mini peeper C7027A, C7035A, C7044
- Colour: Purple
Honeywell Burner Control R7861A1026/U Flame Signal Amplifier – 7800 Series
- Type: Ultraviolet
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Dynamic Self-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Ultraviolet Flame Sensor C7061
- Colour: Purple
