Honeywell 32005301-001/U Flame Amplifier Accessories | 7800 Series Burner Control Module
- Description: T Filter for Rectification Applications
- Used With: R7847
Honeywell 7800 Series Burner Control Flame Amplifier Module (R7849B1013/U)
- Type: Ultraviolet
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil: Mini peeper C7027A, C7035A, C7044
- Colour: Purple
Honeywell 7800 Series Burner Control Module R7847B1031/U Flame Signal Amplifier
- Type: Rectification
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods; Gas, oil, coal: Ultraviolet Flame Sensor C7012A, C
- Colour: Green
Honeywell 7800 Series Burner Control Module R7851B1018/U Flame Signal Amplifier
- Type: Optical
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil, Coal: Optical (UV, Visible Light) C7927, C7962B
- Colour: White

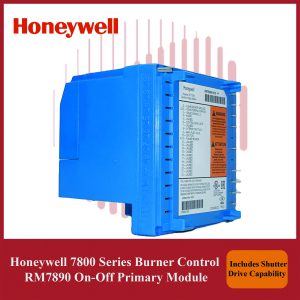

Honeywell 7800 Series Burner Control RM7890A1015/U On-Off Primary Module
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3.
- Approvals, Factory Mutual: Report No. 1V9AO.AF

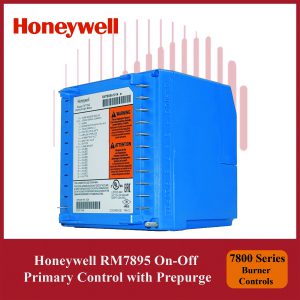

Honeywell 7800 Series Burner Control RM7895A1014/U On-Off Primary with Prepurge
- Voltage: 120 Vac (+10, -15%)
- Pilot Type: intermittent
- Delayed Main Valve: No
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3
- Approvals, Control Safety Devices: Acceptable: CSD-1
- Approvals, Factory Mutual: Report No. OX4A5.AF

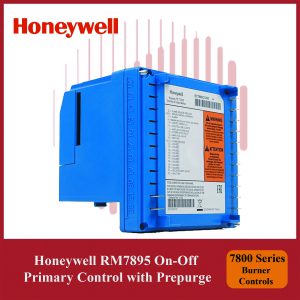

Honeywell 7800 Series Burner Control RM7895A1089 On-Off Primary with Prepurge
- Voltage: 120 Vac (+10, -15%)
- Pilot Type: intermittent
- AirFlow Check: Dynamic
- Delayed Main Valve: No
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, CSA: Certified, File No. LR95329-3
- Approvals, Control Safety Devices: Acceptable: CSD-1
- Approvals, Factory Mutual: Report No. OX4A5.AF
Honeywell 7800 Series Burner Control RM7896A1012/U On-Off Primary with Pre-and Post-purge
- Pilot Type: intermittent
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 or 10 sec
- Delayed Main Valve: No
- PostPurge: 15 sec

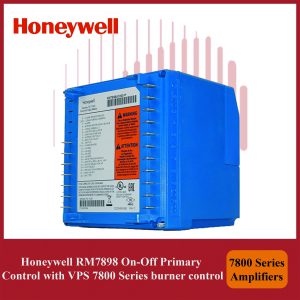

Honeywell 7800 Series burner control RM7898A1018/U On-Off Primary Control with VPS
- Voltage: 120 Vac (+10, -15%)
- Used With: blinking LED fault annunciation feature, with early spark termination and 7800 Series Amplifiers

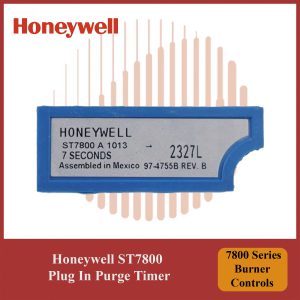

Honeywell 7800 Series Burner Control ST7800A1013/U Plug-In Purge Timer Module
- Pre-Purge: 7 seconds
- Application: Purge Timer

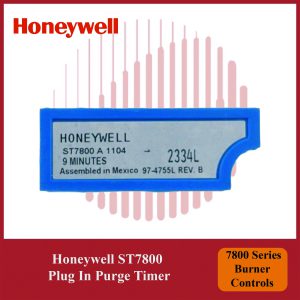

Honeywell 7800 Series Burner Control ST7800A1104/U Plug-In Purge Timer Module
- Pre-Purge: 9.0 minutes
- Application: Purge Timer
Honeywell 7800 Series Burner Control ST7800C1045/U Plug-In Purge Timer Module
- Pre-Purge: 8.0 minutes
- Application: Purge Timer for RM7838C Only

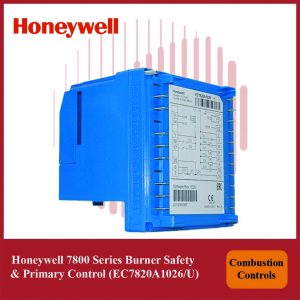

Honeywell 7800 Series Burner Control, Model EC7820A1026/U – Primary Control Module
- Voltage : 220 to 240 Vac (+10, -15%)
- Pilot Type: interrupted
- Flame Establishing Period- main: 5 sec, or 8 sec, or Intermittent
- Flame Establishing Period- Pilot: 5 sec or 10 sec
Honeywell 7800 Series Burner Controls - RM7824A1006/U On-Off Primary Control
- Voltage: 24 Vdc (+10, -15%)
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 sec or 10 sec

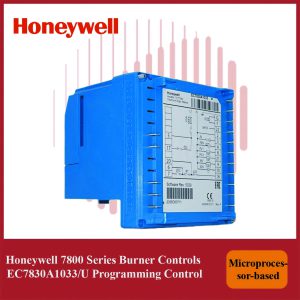

Honeywell 7800 Series Burner Controls EC7830A1033/U Programming Control
- Voltage : 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Post Purge: 2 sec On/Off Power Burner

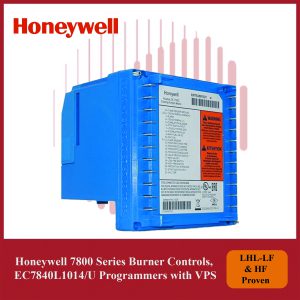

Honeywell 7800 Series Burner Controls EC7840L1014/U Programmers with VPS
- Voltage: 220 to 240 Vac (+10, -15%)
- Flame Establishing Period - Main: 10 sec or 15 sec
- Flame Establishing Period - Pilot: 4 sec or 10 sec
- Interlocks: Lockout

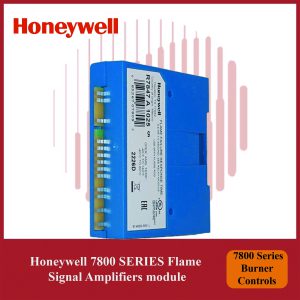

Honeywell 7800 SERIES Burner Controls Flame Signal Amplifiers R7847A1025/U module
- Type: Rectification
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods
- Colour: Green
Honeywell 7800 SERIES Burner Controls Flame Signal Amplifiers R7847A1033/U module
- Type: Rectification
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods; Gas, oil, coal: Ultraviolet Flame Sensor C7012A, C
- Colour: Green
Honeywell 7800 SERIES Burner Controls Flame Signal Amplifiers R7847A1074/U module
- Type: Rectification
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods for impedance matching for leadwire runs > 50'
- Colour: Green

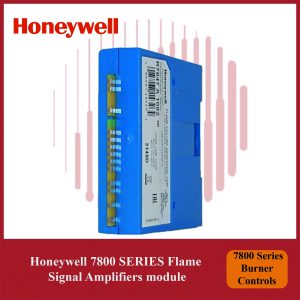

Honeywell 7800 SERIES Burner Controls Flame Signal Amplifiers R7847A1082/U module
- Type: Rectification
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods for impedance matching for leadwire runs > 50' or Ultraviolet Flame Sensor C7012A, C
- Colour: Green
Honeywell 7800 Series Burner Controls RM7840G1022/U Programmers with VPS
- Voltage: 120 Vac (+10, -15%)
- Flame Establishing Period - Main: 10 sec, 15 sec, 30 sec, or Intermittent
- Flame Establishing Period - Pilot: 4 sec or 10 sec
- Interlocks: Running
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ.
- Approvals, Factory Mutual: Report No. 1V9AO.AF.

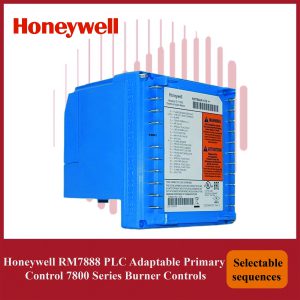

Honeywell 7800 Series Burner Controls RM7888A1027/U PLC Adaptable Primary Control
- Flame Establishing Period - Main: 15 sec
- Flame Establishing Period - Pilot: 10 sec

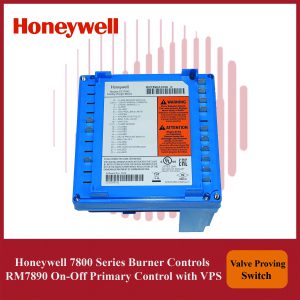

Honeywell 7800 Series Burner Controls RM7890A1056/U On-Off Primary Control with VPS
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 sec or 10 sec

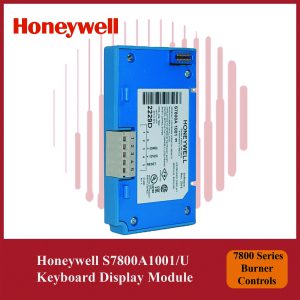

Honeywell 7800 Series Burner Controls S7800A1001/U Keyboard Display Module
- Voltage: 13 Vdc peak full wave rectified (+20/-15%)

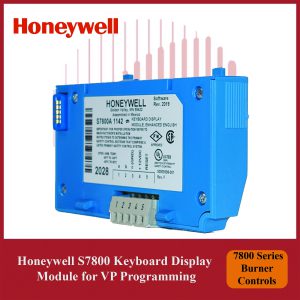

Honeywell 7800 Series Burner Controls S7800A1142/U Keyboard Display Module for VP Programming
- Voltage: 13 Vdc peak full wave rectified (+20/-15%).
- Language & Capability: English Language, Capable of displaying special “Call Service” messages, allows setup of S7830A1005 Expanded Annunciator messages, used for VPS programming, and programming Post Purge on select 7800 Devices
Honeywell 7800 Series Burner Controls S7810A1009/U Data Control Bus™ Module
- Voltage: 13 Vdc peak full wave rectified (+20/-15%).
- Includes: Includes 203541 5-wire Connector

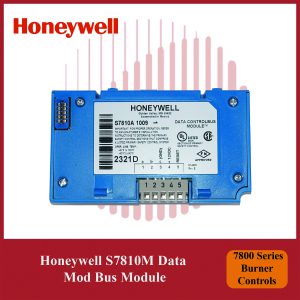

Honeywell 7800 Series Burner Controls S7810M1003/U Mod Bus Module
- Voltage: 13 Vdc peak full wave rectified (+20/-15%)
- Application: Control Bus™ Module-MODBUS
- Includes: Includes 208727 8 pin electrical connector

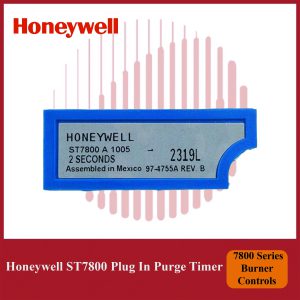

Honeywell 7800 Series Burner Controls ST7800A1005/U Plug In Purge Timer
- Pre-Purge: 2 seconds
- Application: Purge Timer
