Honeywell 7800 Series ST7800A1047/U Plug-In Purge Timer Module for Burner Systems
- Pre-Purge: 40 seconds
- Application: Purge Timer
Honeywell 7800 Series ST7800A1070/U Plug-In Purge Timer for Safe & Efficient Burner Operation
- Pre-Purge: 2.5 minutes
- Application: Purge Timer
Honeywell 7800 Series ST7800A1138/U Plug-In Purge Timer Module for Burner Systems
- Pre-Purge: 22.0 minutes
- Application: Purge Timer
Honeywell 7800 Series ST7800C1011/U Plug-In Purge Timer for Safe & Efficient Burner Operation
- Pre-Purge: 20 seconds
- Application: Purge Timer for RM7838C Only
Honeywell 7800 Series ST7800C1078/U Plug-In Purge Timer for Safe & Efficient Burner Operation
- Pre-Purge: 14.0 Minutes
- Application: Purge Timer for RM7838C Only
Honeywell 7800 Series ST7800C1128/U Plug-In Purge Timer Module for Burner Systems
- Pre-Purge: 24.0 minutes
- Application: Purge Timer for RM7838C Only
Honeywell Burner Control R7849A1015/U Flame Signal Amplifier – 7800 Series
- Type: Ultraviolet
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil: Mini peeper C7027A, C7035A, C7044
- Colour: Purple
Honeywell Burner Control R7861A1026/U Flame Signal Amplifier – 7800 Series
- Type: Ultraviolet
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Dynamic Self-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Ultraviolet Flame Sensor C7061
- Colour: Purple
Honeywell EC7823A1004/U Flame Switch 7800 Series Burner Controls
- Voltage: 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Approvals, Factory Mutual: Report No. OY0A9.AF
Honeywell EC7830A1066/U Programming Control for 7800 Series Burner Systems
- Voltage : 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Post Purge: 15 sec On/Off Power Burner
Honeywell EC7850A1122/U Burner Control | 7800 Series Flame Safety & Programming Unit
- Voltage : 220 to 240 Vac (+10, -15%)
- Frequency: 60 Hz (±10%), 50 Hz
- Post Purge: 15 sec LHL-LF & HF Proven

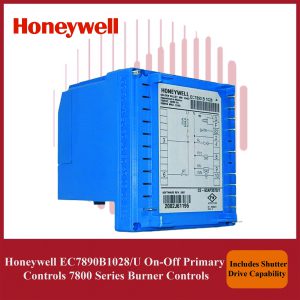

Honeywell EC7890B1028/U On-Off Primary Controls 7800 Series Burner Controls
- Voltage: 220 to 240 Vac (+10, -15%)
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Factory Mutual: Report No. 1V9AO.AF
- Approvals, Gastec/European: CE approval model EC7890B1028/U: PIN-0063CT1466 against EN 298:2012 under GAR 2016/426

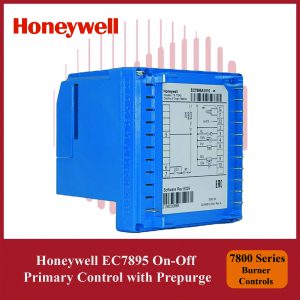

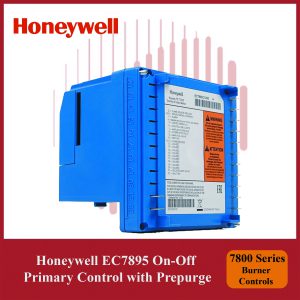

Honeywell EC7895A1010/U On-Off Primary Control with Prepurge 7800 Series Burner Controls
- Voltage: 220 to 240 Vac (+10, -15%)
- Pilot Type: intermittent
- Delayed Main Valve: No
- Flame Establishing Period - Main: Intermittent
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Factory Mutual: Report No. 1D0A1.AF
Honeywell EC7895C1000/U On-Off Primary Control with Prepurge – 7800 Series
- Voltage: 220 to 240 Vac (+10, -15%)
- Pilot Type: interrupted
- Delayed Main Valve: Yes
- Flame Establishing Period - Main: 10 sec
- Flame Establishing Period - Pilot: 4 or 10 sec
- Approvals, Factory Mutual: Report No. 1D0A1.AF

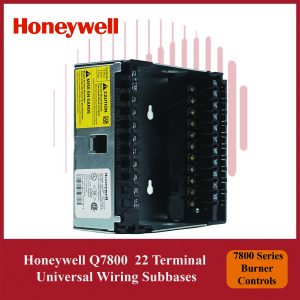

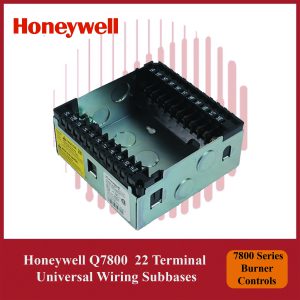

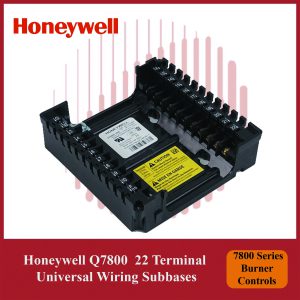

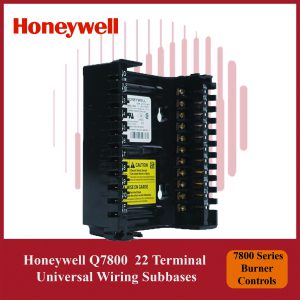

Honeywell Q7800A1005/U 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
- Application: Wiring Subbase
- Approximate, Dimensions: 4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in. deep (126 mm wide x 126 mm high x 36 mm deep)
- Weight lb. (kg): 7 oz (0.20 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ2.
- Used With: Panel mount
Honeywell Q7800B1003/U 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
- Application: Wiring Subbase
- Approximate, Dimensions: 4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in. deep (126 mm wide x 126 mm high x 36 mm deep)
- Weight lb. (kg): 1 lb 3 oz (0.54 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ2.
- Used With: Burner/wall mount 2 knockouts each end
Honeywell Q7800B1011/U 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
- Application: Wiring Subbase
- Approximate, Dimensions: 4 31/32 in. wide x 4 31/32 in. high x 1 13/32 in. deep (126 mm wide x 126 mm high x 36 mm deep)
- Weight lb. (kg): 1 lb 3 oz (0.54 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ2.
- Used With: Burner/wall mount 2 knockouts each end
Honeywell Q7800F1004/U 22 Terminal Universal Wiring Subbases 7800 Series Burner Controls
- Application: Wiring Adapter Subbase
- Approximate, Dimensions: 5 in. high x 5 in. wide x 1 3/4 in. deep (127 mm high x 127 mm wide x 44 mm deep)
- Weight lb. (kg): 15 oz (0.43 kg)
- Approvals, Underwriters Laboratories Inc.: Component Recognized, File No. MP268; Guide No. MCCZ2.
- Used With: Burner/wall mount adapter subbase for RA890 Used With RM7890 EC7890.

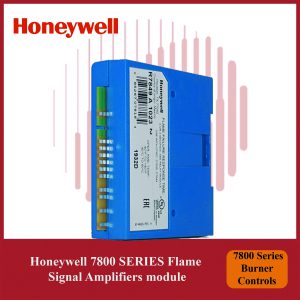

Honeywell R7847A1082/U Flame Signal Amplifier – Trusted 7800 Series Burner Solution
- Type: Ultraviolet
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil: Mini peeper C7027A, C7035A, C7044
- Colour: Purple

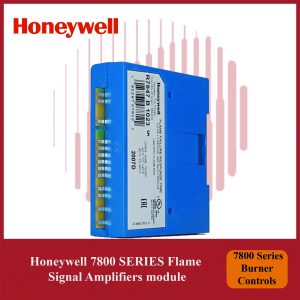

Honeywell R7847B1023/U Flame Signal Amplifier Module – 7800 Series Burner Control
- Type: Rectification
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods
- Colour: Green

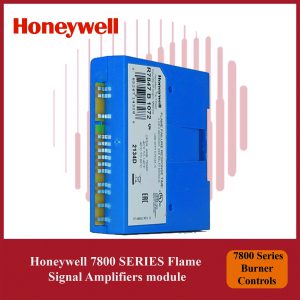

Honeywell R7847B1072/U Flame Signal Amplifier | 7800 Series Burner Control Module
- Type: Rectification
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas: Rectifying Flame Rods for impedance matching for leadwire runs > 50' or Ultraviolet Flame Sensor C7012A, C
- Colour: Green
Honeywell R7849A1023/U – Reliable Flame Signal Amplifier Module for 7800 Series Burners
- Type: Ultraviolet
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil: Mini peeper C7027A, C7035A, C7044
- Colour: Purple
Honeywell R7851B1000/U Flame Signal Amplifier Module – 7800 Series Burner Control
- Type: Optical
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Ampli-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, Oil, Coal: Optical (UV, Visible Light) C7927, C7962B
- Colour: White
Honeywell R7852A1001/U Flame Signal Amplifier | 7800 Series Burner Control Module
- Type: Infrared
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: None (standard)
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Infrared (lead sulfide) C7915
- Colour: Red/White
Honeywell R7861A1034/U – Reliable Flame Signal Amplifier Module for 7800 Series Burners
- Type: Ultraviolet
- Flame Failure Response Time (sec): 0.8 or 1.0 sec
- Self Checking: Dynamic Self-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Ultraviolet Flame Sensor C7061
- Colour: Purple
Honeywell R7886A1001/U Flame Signal Amplifier – Trusted 7800 Series Burner Solution
- Type: Ultraviolet
- Flame Failure Response Time (sec): 2.0 or 3.0 sec
- Self Checking: Dynamic Self-Check
- Use With Primary Safety Control: 7800 SERIES Relay Modules
- Use With Flame Sensor: Gas, oil, coal: Adjustable Sensitivity Ultraviolet Flame Sensor C7076
- Colour: Blue

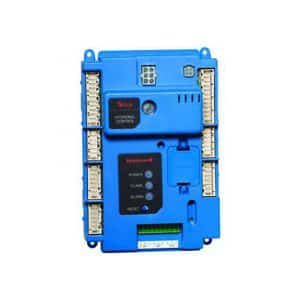

Honeywell R7910A1019/U Module SOLA Controllers - SOLA™ Hydronic Control
- Enclosure Rating: NEMA 1/IP 40
- Firing Rate Switch: High Fire Switch; Low Fire Switch
- Flame Sensor Type: FR/UV
- Modulation Output: Yes (PWM); Yes (4-20 mA); Yes (0-10 Vdc)
- Voltage: 24 Vac Operating; 120 Vac Load
- Approvals, Underwriters Laboratories: Underwriters Laboratories (RU) (cRU): File No. MP268 (MCCZ2, MCCZ8).
Honeywell R7910A1118/U Module SOLA Controllers - SOLA™ Hydronic Control
- Enclosure Rating: NEMA 1/IP 40
- Flame Sensor Type: FR, High Energy Spark
- Modulation Output: Yes (PWM)
- Voltage: 24 Vac Operating; 24 Vac Load
- Approvals, Underwriters Laboratories: Underwriters Laboratories (RU) (cRU): File No. MP268 (MCCZ2, MCCZ8).
