Resideo Electronic Control ST9120C4008 – Universal Fan Timer Module
- Original OEM Appliance: ICP
- 1: Off
- 2: Off
- 3: On
- 4: On
- 5: Off
Resideo Electronic Fan Timer System – ST9120C1012 Universal Module
- Original OEM Appliance: Snyder General
- 1: On
- 2: Off
- 3: Off
- 4: Off
- 5: Off
Resideo Fan Center Control – R8239D1007 Relay & Transformer Combo Module
- Electrical Ratings (VA): 40 VA
- Electrical Ratings (Input Voltage): 120 Vac
- Dimensions (in.) H x W x D: 4-1/2 x 4-3/16 x 3-3/32
Resideo Fan Center System – R8285A1048 Combined Relay and Transformer Module
- Electrical Ratings (VA): 40 VA
- Electrical Ratings (Input Voltage): 120 Vac
- NEMA Rated: No
- Dimensions (in.) H x W x D: 4-3/16 x 4-1/2 x 2-13/16
Resideo Fan Centers – R8239B1043 Relay and Transformer Combination Module
- Electrical Ratings (VA): 40 VA
- Electrical Ratings (Input Voltage): 120 Vac
- NEMA Rated: Yes
- Dimensions (in.) H x W x D: 4-1/2 x 4-3/16 x 3-3/32
Resideo Fan Timer Control Module – ST9120 2016 Universal Electronic System
- Original OEM Appliance: ICP
- 1: Off
- 2: Off
- 3: Off
- 4: On
- 5: Off
Resideo Fan Timer ST9120U1003 – Universal Electronic Control Module
- Original OEM Appliance: Trade
- 1: Off
- 2: Off
- 3: On
- 4: Off
- 5: Off
Resideo Fan Timer System – ST9120C2028 Universal Electronic Module
- Original OEM Appliance: Armstrong
- 1: Off
- 2: Off
- 3: Off
- 4: Off
- 5: On
Resideo Furnace Control System — 50A50-112 Hot Surface Ignition Module
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: On
Resideo Furnace Control Unit – 624591-B Universal Hot Surface Ignition Module
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: On
- SW2: Off
Resideo Furnace Control Unit — Universal Hot Surface Ignition 52537074000 Module
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: Off
Resideo Furnace Hot Surface Ignition — Universal Control Module 031-01933-000
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: On
Resideo Furnace HSI Control – CNT2181 Universal Ignition Module
Field Settings Recommendation
- SW1: Check settings
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: On
Resideo Furnace Ignition Control – 624628 Universal Hot Surface Module
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: On
- SW2: Off
Resideo Furnace Ignition Control Unit — 1012-925B Hot Surface Module
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: On
- SW2: On
Resideo Furnace Ignition Controller — 50A50-408 Hot Surface Integrated System
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: On
Resideo Furnace Ignition Module – Universal 8068561 Hot Surface Control
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: Off
Resideo Furnace Ignition Module — 3101250000 Universal Hot Surface Control
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: Off
Resideo Furnace Ignition Module — Universal 50A55-285 Hot Surface Control
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: Off
Resideo Furnace Ignition Module — Universal Hot Surface Control G951AEB-1403
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: On
Resideo Furnace Ignition System — 50A50-209 Universal Hot Surface Module
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: On
- SW4: On
- SW1: Off
- SW2: On
Resideo Furnace Module — 50A50-241 Hot Surface Universal Ignition Control
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: On
Resideo Furnace System Control — Universal 50A55-288-05 Hot Surface Ignition Module
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: Off
Resideo G951ADB1401 System Controller — Universal Hot Surface Ignition for Furnaces
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: On
Resideo G951ADB1402 Universal Hot Surface Ignition — Furnace Control Device
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: On
Resideo Gas Control Module – VR8245M2530 Universal Electronic Ignition Valve
- Direct Service Part Replacements: VR8245M2530, VR8204A2076, VR8204M1091, VR8205A2024
- Q340 Thermocouple: None
- 3/4 " x 1/2" Reducer Bushing: None
- Natural to LP Conversion Kit: One
- 3/4" Straight Flange; Respectively: None, One, One, One
- 1/2" x 3/8" Reducer Bushing: One
- Remote Rod Adapter: None

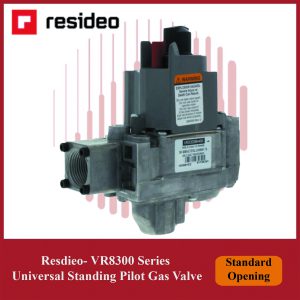

Resideo Gas Valve Control – VR8300M4406 Universal Standing Pilot Gas Valve Module
- Direct Service Part Replacements: VR8300M4406, VR8300A4508, VR8300A3500, VR8200A2124, VR8200A2132, VR8200A2744
- Q340 Thermocouple; Respectively: None, None, None, One, None, None
- 3/4 " x 1/2" Reducer Bushing; Respectively: Two, Two, One, None, None, None
- Natural to LP Conversion Kit: One
- 3/4" Straight Flange; Respectively: None, None, None, One, One, (One +One Elbow)
- 1/2" x 3/8" Reducer Bushing; Respectively: None, None, None, One, One, One
- Remote Rod Adapter: None
Resideo Gas Valves Module- VR8345M4302 Universal Electronic Ignition Gas Valve Control
- Direct Service Part Replacements: VR8345M4302, VR8304M3509, VR8304M4507, VR8305M3506
- Q340 Thermocouple: None
- 3/4 " x 1/2" Reducer Bushing; Respectively: Two, One, Two, One
- Natural to LP Conversion Kit: One
- 3/4" Straight Flange; Respectively: None, None, None, One
- 1/2" x 3/8" Reducer Bushing: None
- Remote Rod Adapter: None
