Resideo Universal Q345A2196 Pilot Burner Unit – Standing & Intermittent Module
Universal Pilot Burners Cross Reference Q345U1005 REPLACES:
- Hood Angle: As Shipped (L) Left
- Orifice: As Shipped
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: Yes
Resideo Universal Q348A1226 Pilot Control Module – For Dual Pilot System Function
Universal Pilot Burners Cross Reference Q348A1009 REPLACES:
- Orifice: Blue = A26 (0.026 in.)
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: No
Resideo Universal Q348A1341 Module – Gas Pilot Burner for Multi-Mode Operation
Universal Pilot Burners Cross Reference Q348A1009 REPLACES:
- Orifice: Brown = KR14 (0.014 in.)
- Gas Type: LP
- Compression Fitting: 1/8"
- Auxiliary Bracket: No
Resideo Universal Q350A1271 Pilot Burner – Module for Standing & Intermittent Pilot Operation
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: Low BTU Hood
- Hood Angle: (K) Right
- Orifice: Lt. Blue = CA-13 (0.013 in.)
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: No
Resideo Universal Q350A1545 Pilot Burner Control Module – For Gas Heating Systems
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: Low BTU Hood
- Hood Angle: (L) Left
- Orifice: Pink = CAR-12 (0.012 in.)
- Gas Type: NAT
- Compression Fitting: As Shipped (1/4")
- Auxiliary Bracket: Yes
Resideo Universal Q350ALA Pilot Burner – Reliable Control Module for Gas Burners
Universal Pilot Burners Cross Reference Q314U1001 REPLACES:
- Hood: Low BTU Hood
- Hood Angle: (L) Left
- Orifice: Check Application
- Gas Type: Check Application
- Compression Fitting: Check Application
- Auxiliary Bracket: Yes
Resideo Universal ST9120 2008 Electronic Module – Fan Timer Control
- Original OEM Appliance: ICP
- 1: On
- 2: Off
- 3: Off
- 4: On
- 5: Off
Resideo Universal ST9120 2032 HVAC Fan Timer – Electronic Control
- Original OEM Appliance: Skymark
- 1: Off
- 2: On
- 3: Off
- 4: Off
- 5: On
Resideo Universal ST9120C3018 Fan Timer – Electronic Control Module
- Original OEM Appliance: Bard
- 1: On
- 2: Off
- 3: Off
- 4: Off
- 5: On
Resideo Universal Transformer Module – AT120A1004 Control System
- Electrical Ratings (VA): 20 VA
- Electrical Ratings (Input Voltage): 120/208/240 Vac
- Notes: Metal end bells

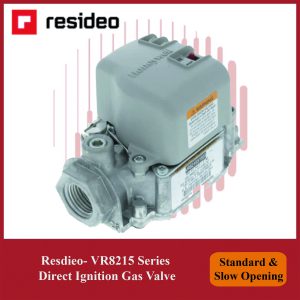

Resideo VR8215 Module | Direct Ignition Gas Valve Control System
- Direct Service Part Replacements: VR8215S1503, VR8215T1502
- Q340 Thermocouple: None
- 3/4 " x 1/2" Reducer Bushing: None
- Natural to LP Conversion Kit: One
- 3/4" Straight Flange: None
- 1/2" x 3/8" Reducer Bushing: None
- Remote Rod Adapter: None

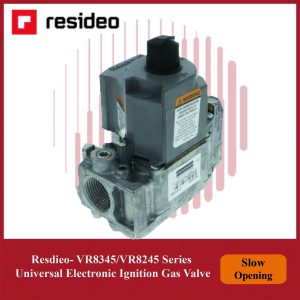

Resideo VR8345K4809 Universal Electronic Ignition Gas Valve Control Module
- Direct Service Part Replacements: VR8345K4809, VR8205H1003, VR8304H4503
- Q340 Thermocouple: None
- 3/4 " x 1/2" Reducer Bushing; Respectively: Two, None, None
- Natural to LP Conversion Kit; Respectively: One, None, One
- 3/4" Straight Flange: None
- 1/2" x 3/8" Reducer Bushing: None
- Remote Rod Adapter: None
Resideo VWS02Y-3/4 Module | L5 WiFi Water Leak Shutoff Valve – Leak Detection Control
- DESCRIPTIONS: L5 WiFi Water Leak Shutoff Valve with ¾ inch NPT ball valve
Resideo WT88 Series Reliable Gas Water Heater Control Module – WT8840C1000
- Resideo OEM Part Number: WV8840C1406
- OEM part NO: AP16910E
- OEM Part NO Replacements: SP20832E
- OEM: Rheem
- Setting: 1.5" insulation tank, 4" WC

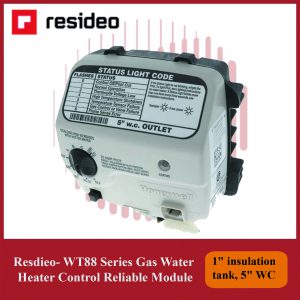

Resideo WT88 Series WT8840B1000 Gas Water Heater Reliable Control Module
- Resideo OEM Part Number: WV8840B1042, WV8840B1109, WV8840B1110
- OEM part NO: 316910-000, 316910-000, 321166-000
- OEM Part NO Replacements: 100112336, 9007884005
- OEM: A.O. Smith
- Setting: 1" insulation tank, 5" WC
Resideo WT8840B1500 Module – WT88 Series Gas Water Heater Reliable Controller
- Resideo OEM Part Number: WV8840B1059, WV8840B1117, WV8840B1118
- OEM part NO: 316910-001, 316910-001, 321166-001
- OEM Part NO Replacements: 100112337, 9007885005
- OEM: A.O. Smith
- Setting: 2" insulation tank, 5" WC
Resideo WT8840C1500 Gas Control Module | WT88 Series Water Heater Controller
- Resideo OEM Part Number: WV8840C1605
- OEM part NO: AP16910B
- OEM Part NO Replacements: SP20832B
- OEM: Rheem
- Setting: 2" insulation tank, 4" WC
Resideo WT8860A1000 Gas Water Heater Control Module | WT88 Series Reliable Control
- Resideo OEM Part Number: WV8860A1009, WV8860A1010
- OEM part NO: 222-48863-01
- OEM Part NO Replacements: 415-52915-01
- OEM: Bradford White
- Setting: 2" insulation tank, 5" WC - ULN
Resideo X13120666010 Universal HSI Control Board – Integrated Furnace Module
Field Settings Recommendation
- SW1: On
- SW2: Off
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: Off
Resideo- 50A50-143 Universal Hot Surface Ignition Control Module
Field Settings Recommendation
- SW1: On
- SW2: Check Settings
- SW3: 60/90/120/180
- SW4: 60/90/120/180
- SW1: Off
- SW2: On
Resideo- L4064B2210 Module High Limit and Fan Controller Reliable Control System
- Element Insertion Length (in.): 11.5
- Manual Fan Button: Yes
- Manual Reset: No
Resideo- L4064B2236 Module High Limit and Fan Controller Reliable Control System
- Element Insertion Length (in.): 8
- Manual Fan Button: Yes
- Manual Reset: No
Resideo- R8184M1051 Module Protectorelay Oil Burner Control System
- Lockout Time (sec.): 45
Resideo- ST9120U1011 Module | Universal Products Reliable Warm Air Limit System
RECOMMENDED BRANCH INVENTORY:
- U.S. Northeast: 12
- U.S. Mid-Atlantic: 12
- U.S. North-NW: 12
- U.S. South-SE: 6
- U.S. West: 6
- Canada Eastern: 12
- Canada Central - West: 8
Resideo- SV9510M2511 SmartValve® System Control Module for Pilot Burners
- Ignition/Application: Direct Ignition, General Application.
- OEM Brands: Modine
- Replaces: SV9510M2347, SV9510M2362, SV9410M2902, SV9510M2412, SV9510M2354, SV9410M2910, SV9510M2388, SV9510M2420
Resideo- WT88 Series Gas Water Heater Control- WT8840A1000 Reliable Module
- Resideo OEM Part Number: WV8840A1000, WV8840A1001
- OEM part NO: 222-47463-01A, 222-47463-01E
- OEM Part NO Replacements: 415-52907-01
- OEM: Bradford White
- Setting: 1" insulation tank, 4" WC
Resideo- WT88 Series Gas Water Heater Control- WT8840A1500 Reliable Module
- Resideo OEM Part Number: WV8840A1050, WV8840A1051
- OEM part NO: 222-47463-02A, 222-47463-02E
- OEM Part NO Replacements: 415-52907-02
- OEM: Bradford White
- Setting: 2" insulation tank, 4" WC
